Tarot FY680 adopts Toray 3K carbon fiber cloth woven carbon fiber board CNC precision machining, has design standard higher than similar products, the full set of rack only weighs 600 grams. Full folding design, suitable for customers who has higher requirment for portability, particularly suited to do surveillance, remote sensing, mapping, airborne reconnaissance, observed fire, life exploration, the cable line patrol, farm monitoring, and other high mobile performance requirements.
Configuration requirements:
- Wheelbase diameter 680MM,10-13inch carbon fiber propeller.
- Brushless Motor: 300W around disc motor, 2212/2216/2814 Series, 880-1000KV.
- Battery: 2000MHA 3-4S battery.
- ESC: 20-30A Brushless ESC.
- Has a moderate load (for example, small digital camera, a small single electronic camera, etc.), for a variety of small-scale aerial job (Photos, video) with the ground station system can achieve a variety of light load task operation.
ARRIS 4010PRO 380KV Specifications:
KV:380
Configu ration:24N22P
Stator Diameter:40mm
Stator Length:10mm
Shaft Diameter:4mm
Motor Dimensions(Dia.*Len): 45.3x24mm
Weight (g):82.5g
ldle current(10)@10v(A):0.4A
No.of Cells(Lipo):4-8S
The most significant feature of ARRIS Simonk 30A brushless ESC is that it has 400mm singnal wire and power cord, no need to add extra wires, which greatly reduce the triviality in wiring.
Specification:
- Weight: 25g
- Size: 55 * 19 * 10mm
- Continuous Current: 30A
- Burst current: 45A
- BEC Mode: OPTO
- The applicable number of battery cells :2-6S

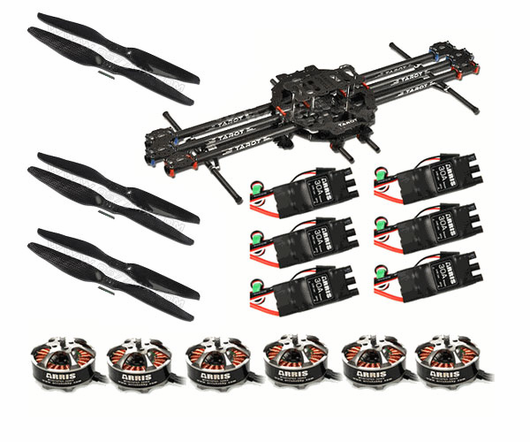

Package Includes:
1 x TL68B01 Hexa-copter Frame
6 x ARRIS Simonk 30A 2-6S OPTO Brushless ESC
6 x Tarot 1355 Carbon Fiber Propeller (3 pairs)
6 x ARRIS 4010Pro 380KV Motor
