Tarot Analog AV to HD HDMI Module is a video signal conversion accessory specifically designed for RC drones. Equipped with a high-performance chip, it ensures consistently clear and smooth video output. The module is compact and lightweight, weighing only 12g.
Product Specifications:
Product Name: AV to HDMI Module
Input Voltage: 5-10v
Latency: 120 milliseconds
HDMI Cable Length: 300mm
Resolution: Support physical button 1080P/720P switching
Operating Temperature: -20°C to 50°C
Dimensions: 37.3mm*19.4mm*9.75mm
Weight: 12g
Important Notes:
1.Supports one-way conversion from AV to HDMI only.
2.The LED light is solid red after poewer on

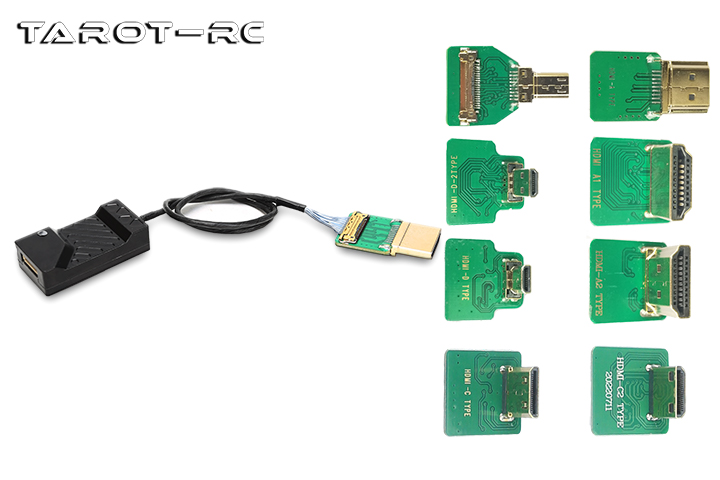

The default cable length is 300mm. It can be replaced with a 500mm cable or customized to other lengths. Compatible with our TL10A11 series adapters.
Package Contents:
AV to HDMI Module (300mm cable) ×1
1.0-8P Single Head Cable (150mm) ×1
3M Glue ×1
