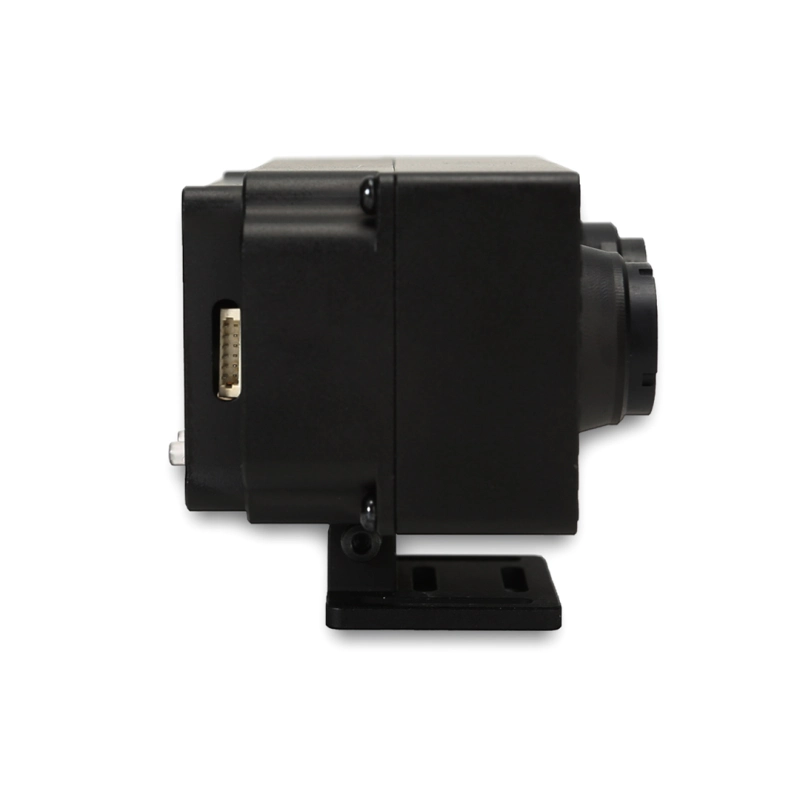

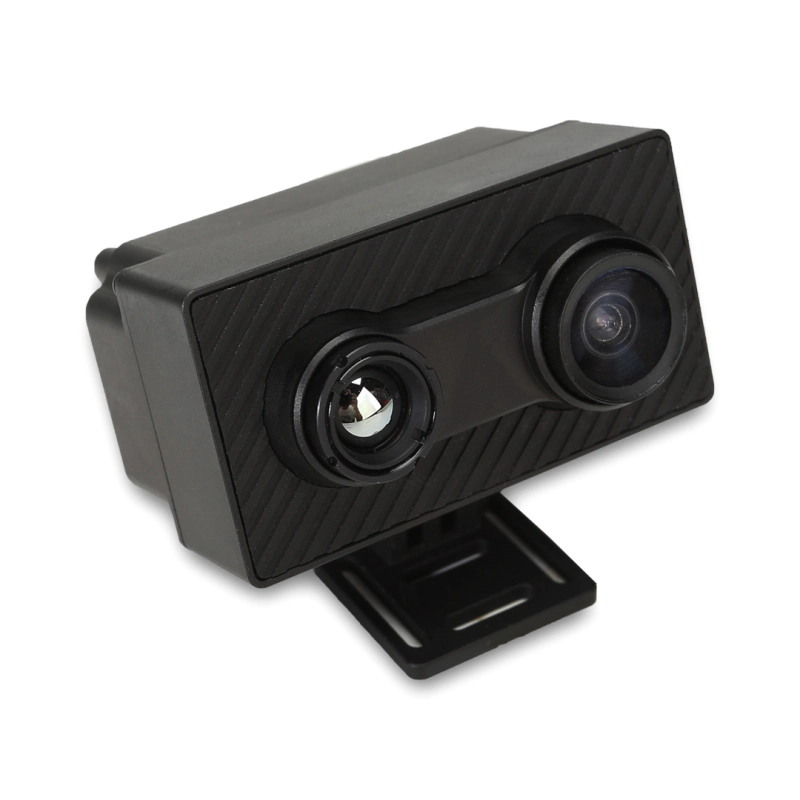

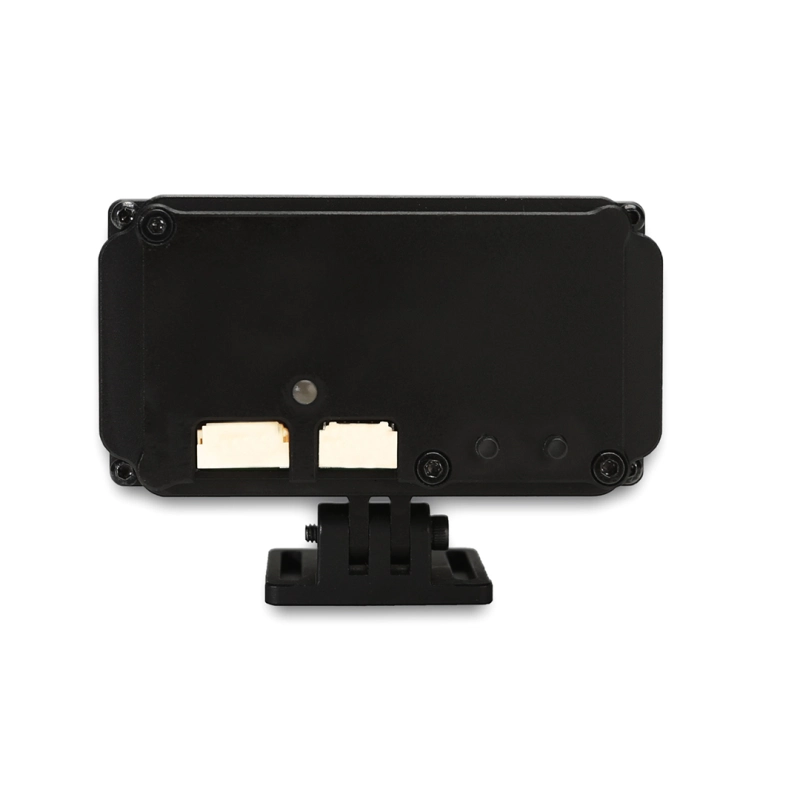

Tarot’s latest mini 256 infrared thermal imaging camera features a robust, all-aluminum alloy body design, making it both durable and reliable. Its ultra-compact size and lightweight build allow it to seamlessly integrate with various multi-rotor drones, fixed-wing aircraft, unmanned vehicles, unmanned boats, and racing drones. With a 50Hz frame rate, the camera delivers clear, smooth video without lag. The AV-format video output is delay-free, and the camera supports four different picture-in-picture modes: thermal imaging, visible light, thermal imaging with visible light as secondary, and visible light with thermal imaging as secondary. These features make it ideal for a wide range of applications, including search and rescue, power line inspection, agriculture, and security.
Product Features:
- Dual output of 256 thermal imaging and 1080P visible light.
- Delay-free AV-format video output.
- Supports standard PWM signals to switch between four picture-in-picture video output sources.
- Four picture-in-picture output modes: thermal imaging, visible light, thermal imaging with visible light as secondary, and visible light with thermal imaging as secondary.
- Supports 20 pseudo-color palettes for thermal imaging.
- Adjustable tilt angle, ranging from -29° to 90°.
- Wide voltage input range: 7-30V.
- Weighs only 52g.
Specifications:
Package Contents:
- Tarot 256 thermal imaging camera / 256S2 ×1
- Wiring kit ×1
