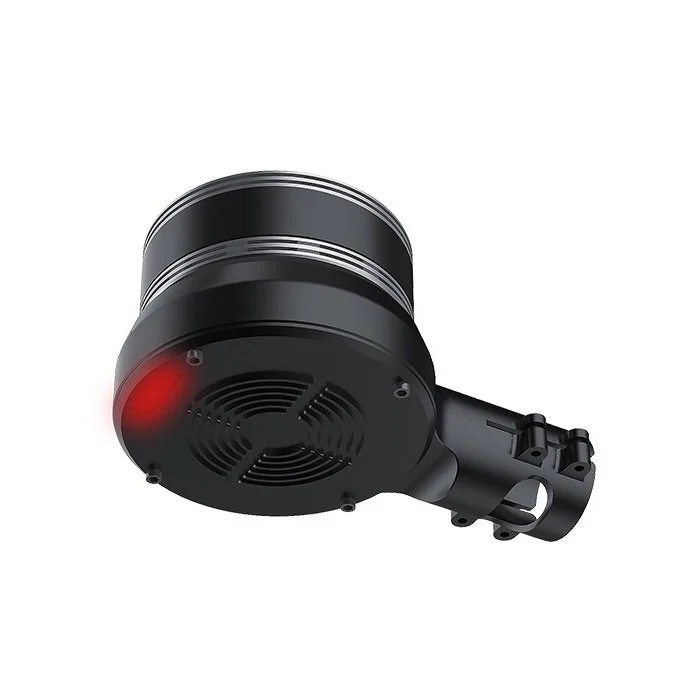

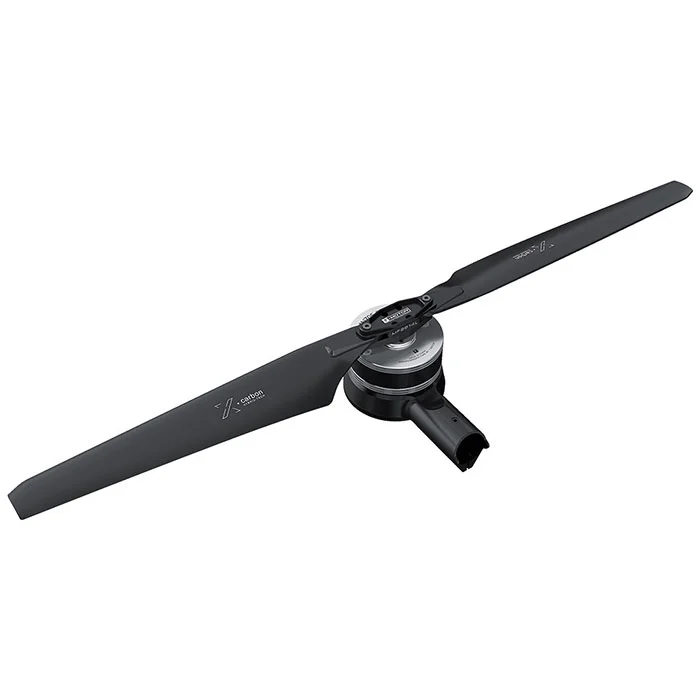

T-Motor MN701S KV135+ALPHA 80A HV ESC+MF2614 Propeller Propulsion System for Industrial Drones

T-Motor MN701S KV135+ALPHA 80A HV ESC+MF2614 Propeller power combo is specially designed for  industrial drones.The tube size is 30mm, suitable for 30mm drone a rms.

Main Features:
• Fast and convenient
• Free of complicated mounting process
• Turn-key system, perfect compatibility, superb cost performance
• Modularized propulsion system

Specifications:

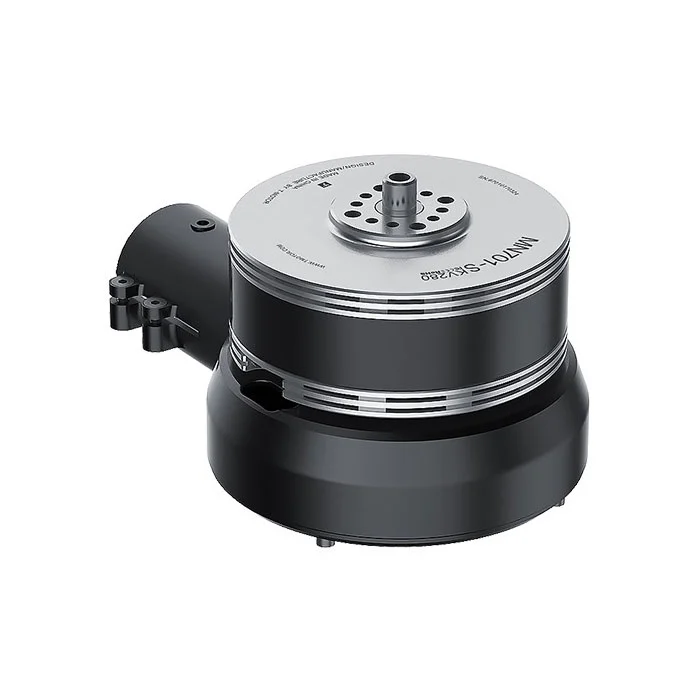

Motor:
Item Model: MN701S
KV: 135KV
Configuration: 24N28P
Rated Voltage: 6-12S
Idle Curren t: 0.9A
Peck Current(180s):  42A
Max Power (180s): 1900W
Weight: 350g
Internal Reistance: 94mΩ

ESC:
Item Model: Alpha 80A HV
Size: 88.5 x 36.6 x 19mm
Weight: 110g
Support Voltage: 18-52.2V
BEC: No
Con. Current: 80A
Peak Current: 100A
Standby Consumption: ≤50mA
Throttle Pos. Range: 1100-1940us
Throttle Refresh Frequency: 500Hz
Throttle Response Speed: 300ms

Propeller:
Item Model: MF2614
Diameter: 26.4inch (671.8mm)
Pitch: 9.4inch (239.5mm)
Material: Polymer+ CF
Weight (Single blade): 126g
Package Weight: 415g
Recommended Thrust/RPM: 2.8-5KG/2700-3800RPM
Recommende Max Thrust: 12kg/5500RPM
Storaage Temperature: -10℃-50℃

Package Included:
T-Motor MN701S KV135 Brushless Motor x 1
T-Motor ALPHA 80A HV ESC x 1
T-Motor MF2614 Folfing Propeller x 1
