The DJI FPV kit power combo consists of 4 of T-motor F40 ProIII 2400kv brushless motor, T-motor F55A PROII +F4 HD stack and 2 pairs of the T-motor T5143S propeller. The FPV racing drone frame kit for DJI FPV system is optional in the drop-down menu.
Main Features of F40 ProIII motor:
• Max.thrust improves by 6%（1.7KG+) for explosive flight. A furious symphony ripping in the sky
• New cool apperance with improved durability
• Hurtling without concern of thread damage from crash
T-Motor F4 with F55A PROII stack is specailly designed for fpv racing drones. Connecting the ESC and FC wiht a 10pin soft silicone wire, dramatically reducing the installing time and increasing the usability.
T-Motor F4 flight controller comes with LC filter, which can fully filter interference and provide a pure power supply enviroment for video transmitter and other equipement. The image is more clear and stable.T-MOTOR R55A PROII is a 4in1 ESC of high performance for demanding racing events with selected materials, reasonable PCB layout and adcanced technics for stable and swift operation under strong current.
FC Specifications：
Item Brand: T-motor
Item Model: T-MOTOR F4 Flight controller
Size: 37 x 37 x 7mm
Installation hole: 30.5mm x 30.5mm
Weight: 7g
MCU: STM32 F405 RGT 6
Gyro: ICM20602, MPU6000 (optional)
OSD: built-in
BEC: 5v/2a
Flash: The onboard 16M
Input Voltage: 2-8s (8.4V-33.6V)
Firmware: TMOTOR F4 (Betaflight)
ESC Specifications:
Item Brand: T-motor
Item Model: T-motor F55A PROII
Current: 4*55A
Peak Current (10S):4*75A
BEC: [email protected]
Lipo: 3-6S
Weight: 17.5g
Size: 45 x 41 x 7.3mm

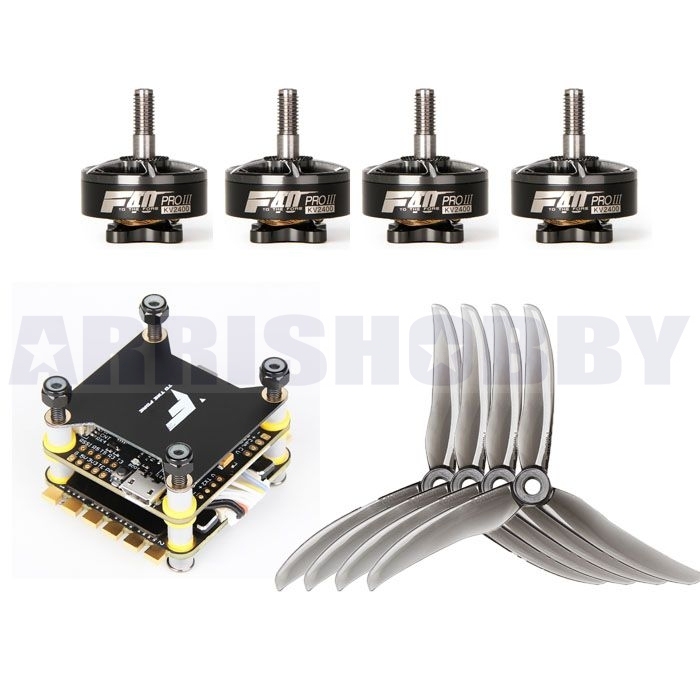

Package Included:
T-Motor F40 PROIII 2400KV Brushless Motor x 4
T-Motor F4 Flight Controller x 1
T-Motor F55A PROII 4in1 ESC x 1
T-Motor 5143S High Efficiency propeller x 4 (2CW+2CCW)
