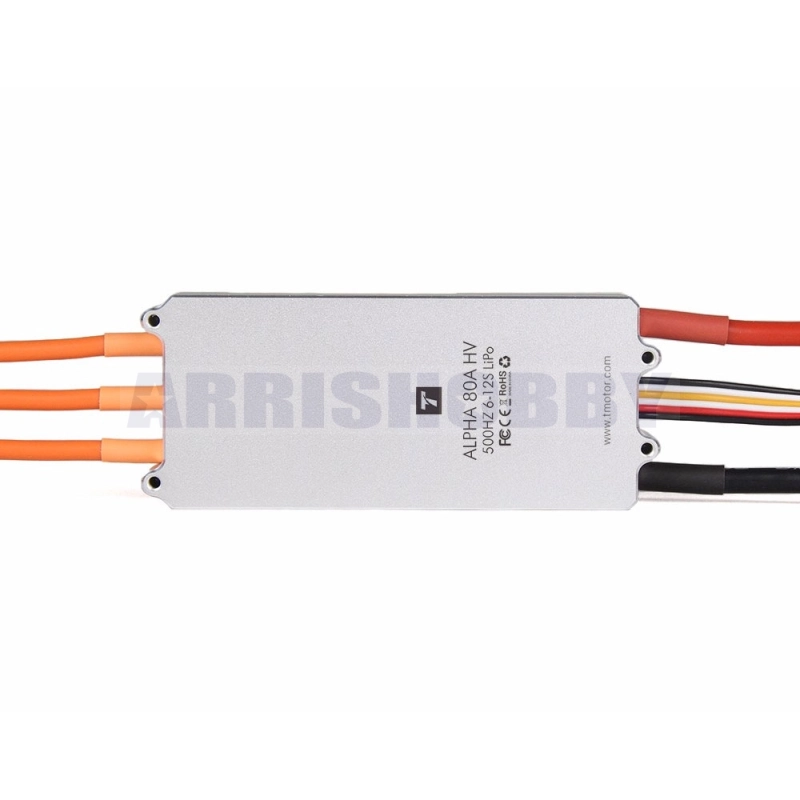

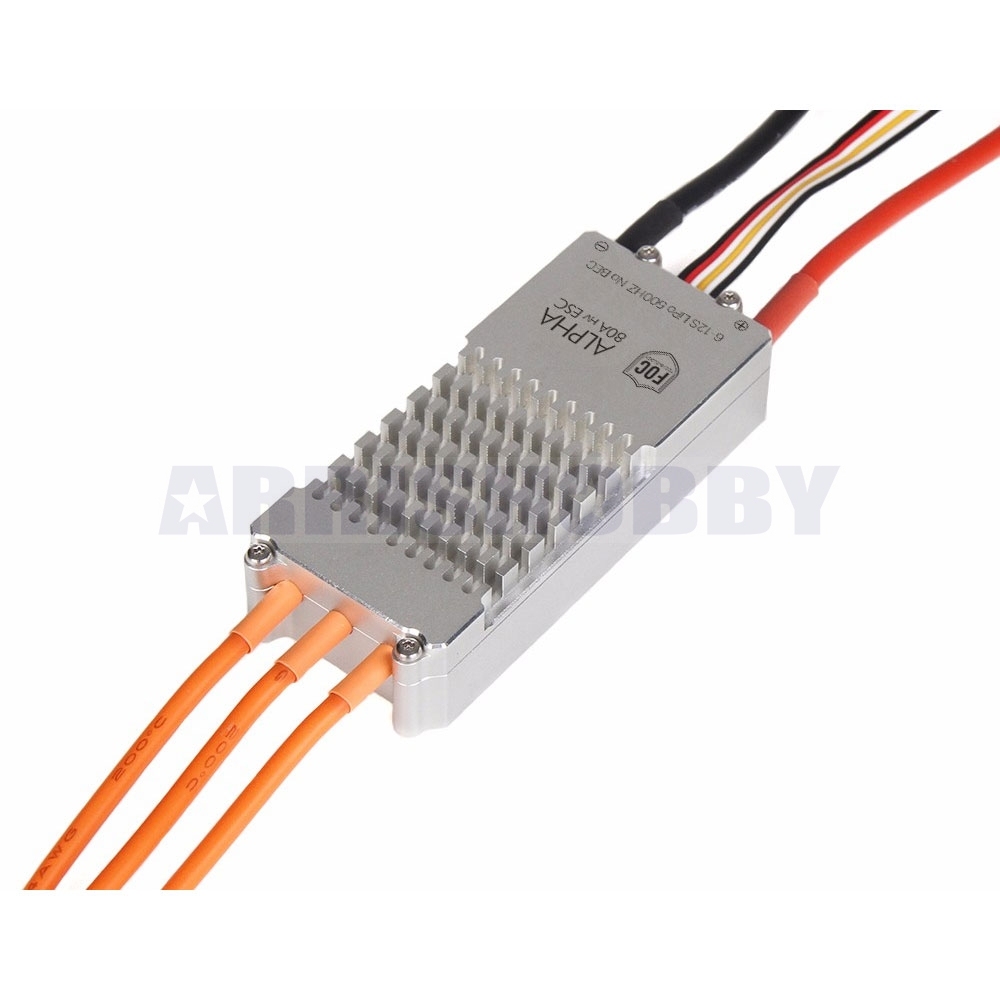

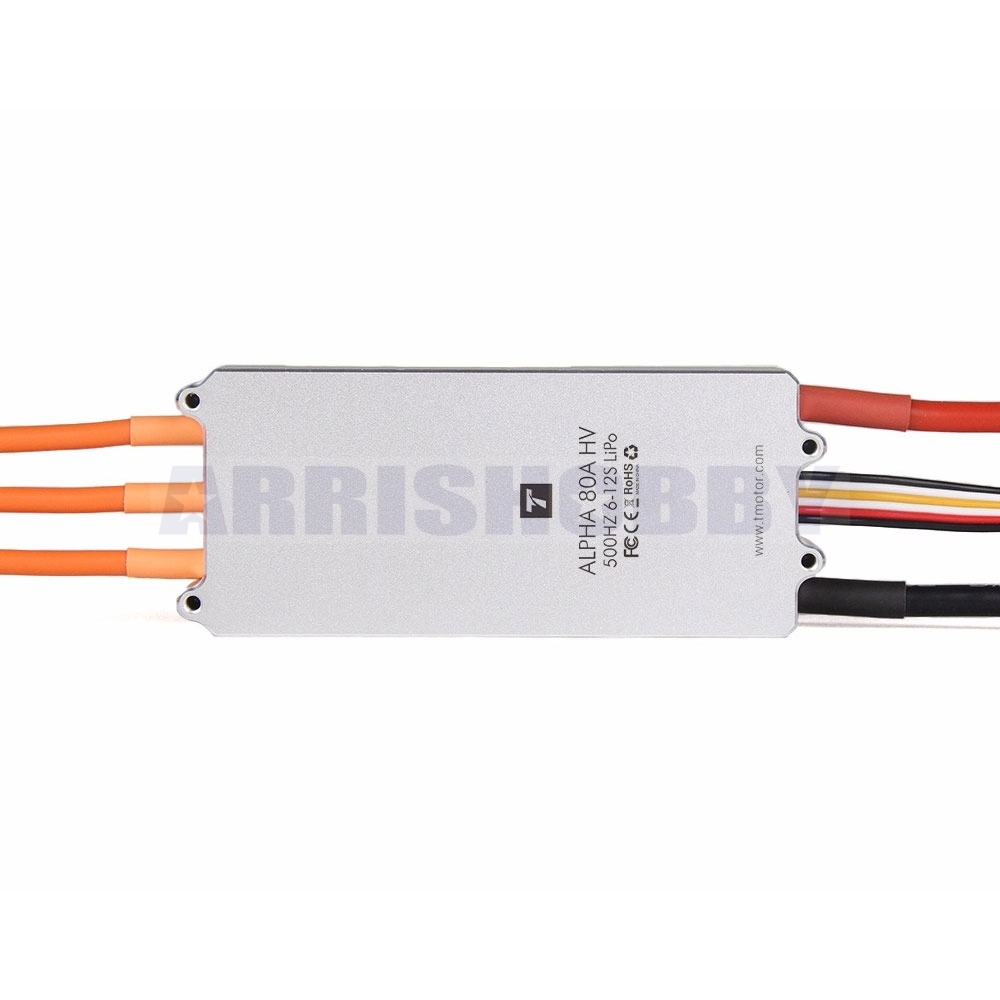

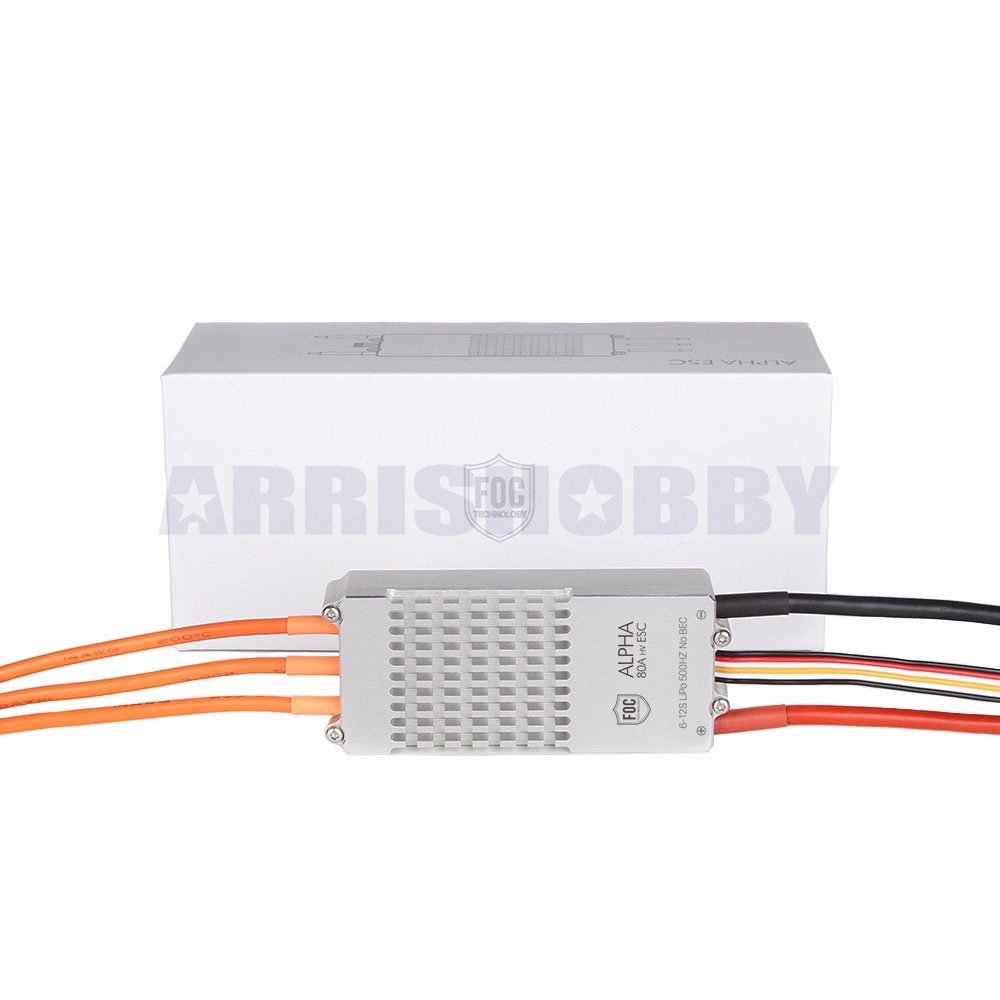

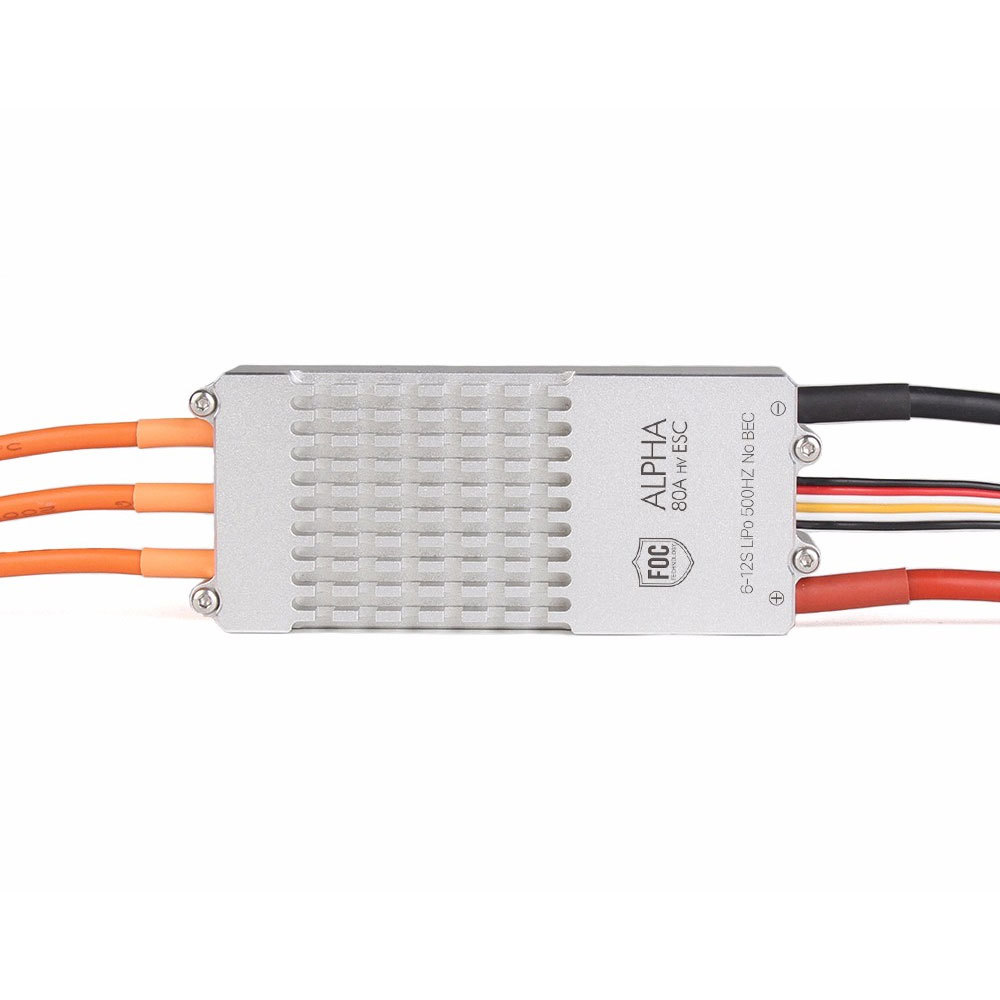

T-MOTOR Alpha 80A HV esc is low noise, low temperature and low interference. It has fast throttle response and high efficiency. It is compatible with P60 KV170, P80 KV100, P80 KV120,P80 KV150, U11 KV120, U12 KV90, U12 KV100, U13 KV85, U13 KV100 and etc.
Specifications:
Item Brand: T-Motor
Item Model: Alpha 60A HV
Size: 88.5 x 36.6 x 19mm
Weight: 110g
Support Voltage: 18-52.2V
BEC: No
Con. Current: 80A
Peak Current: 100A
Standby Consumption: ≤50mA
Throttle Pos. Range: 1100-1940us
Throttle Refresh Frequency: 500Hz
Throttle Response Speed: 300ms
Package Included:
T-MOTOR ALPHA 80A HV Brushless ESC x 1
User Manual x 1
Note: For Alpha series esc, the firmware need to flash to suit for different motor. When you order this, please write the motor type you use with this esc in the comment bar.
