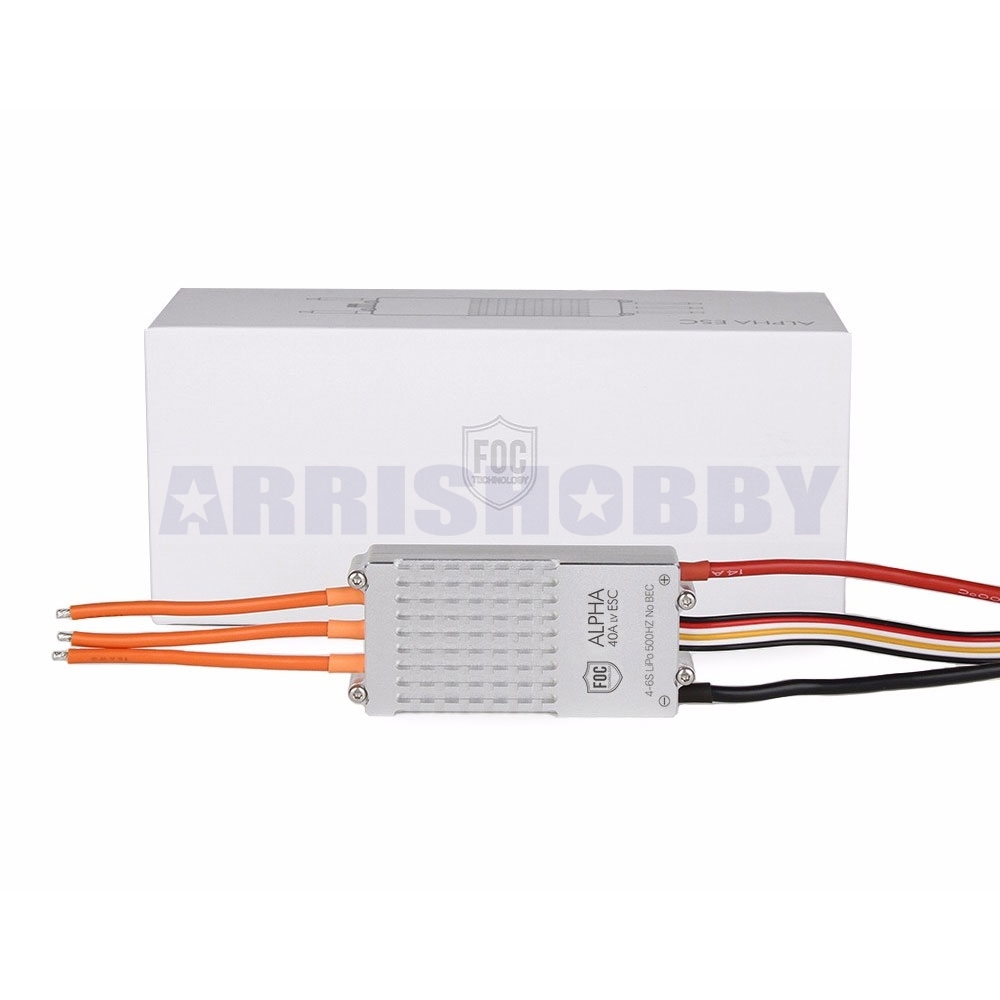

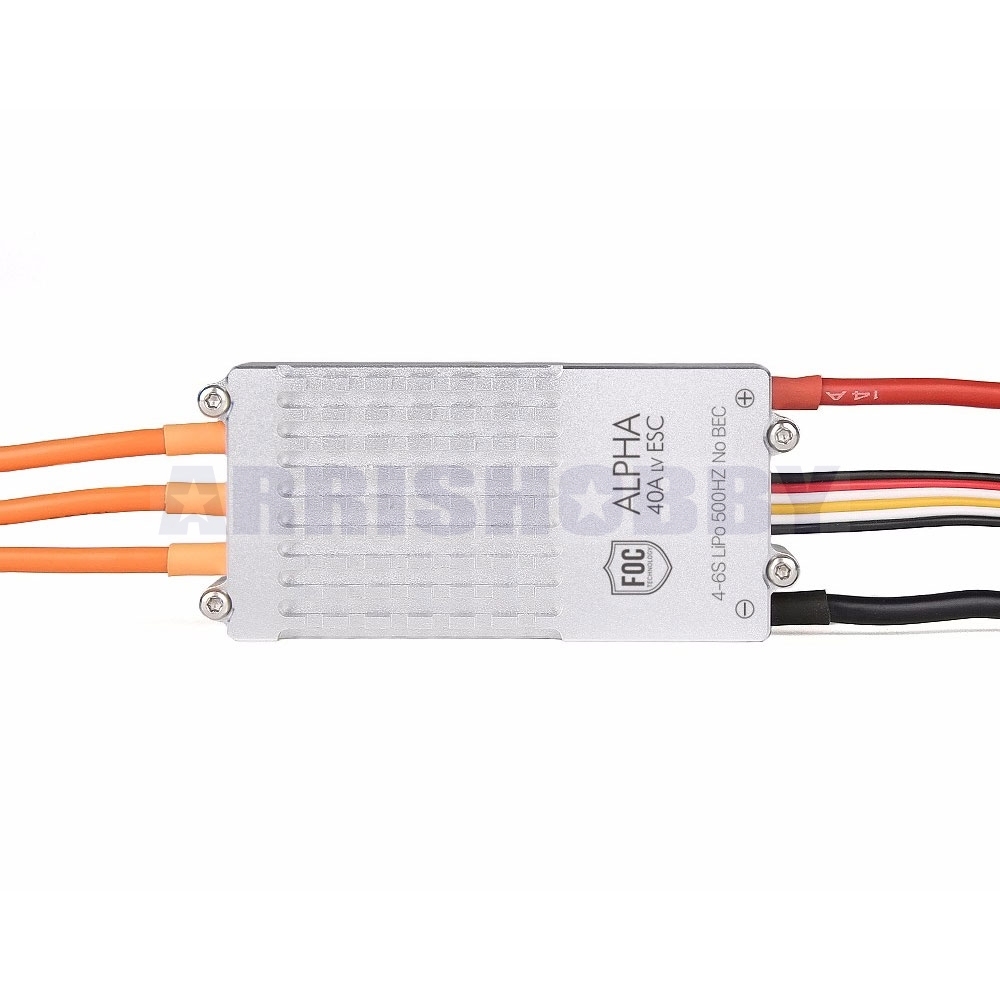

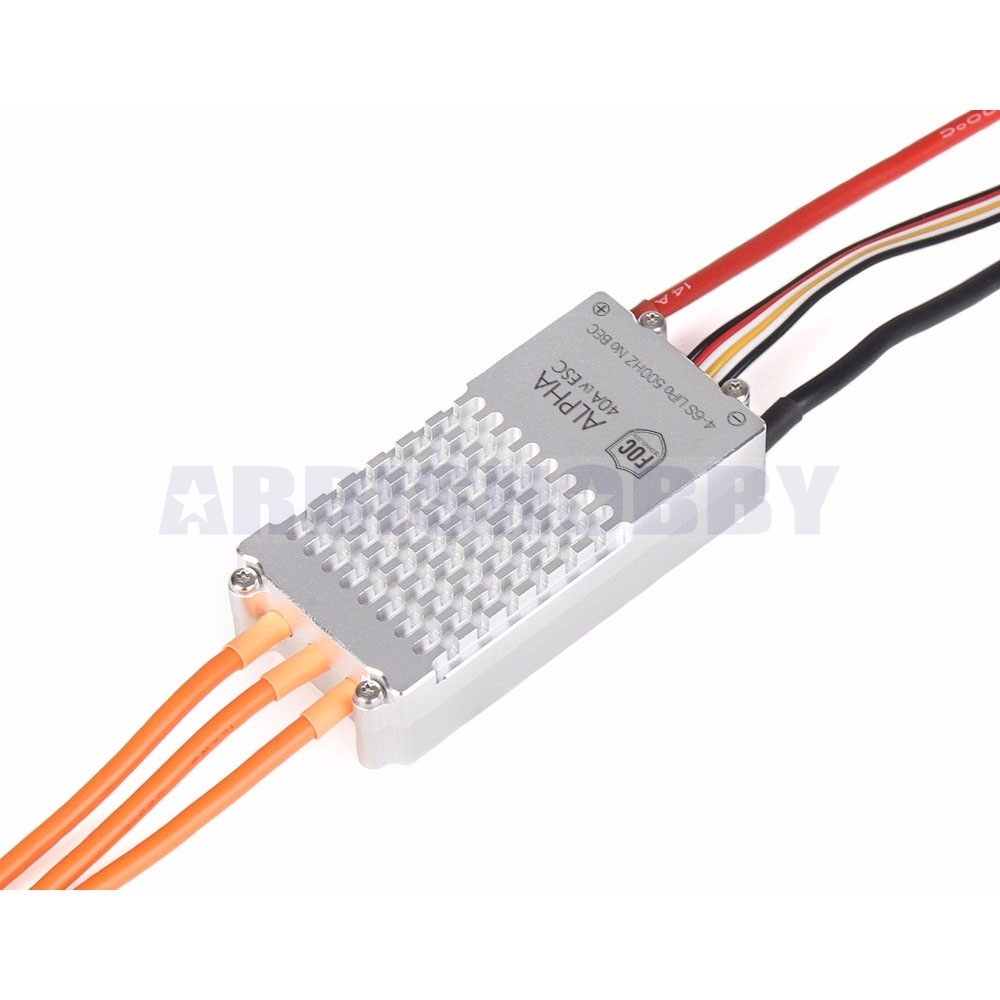

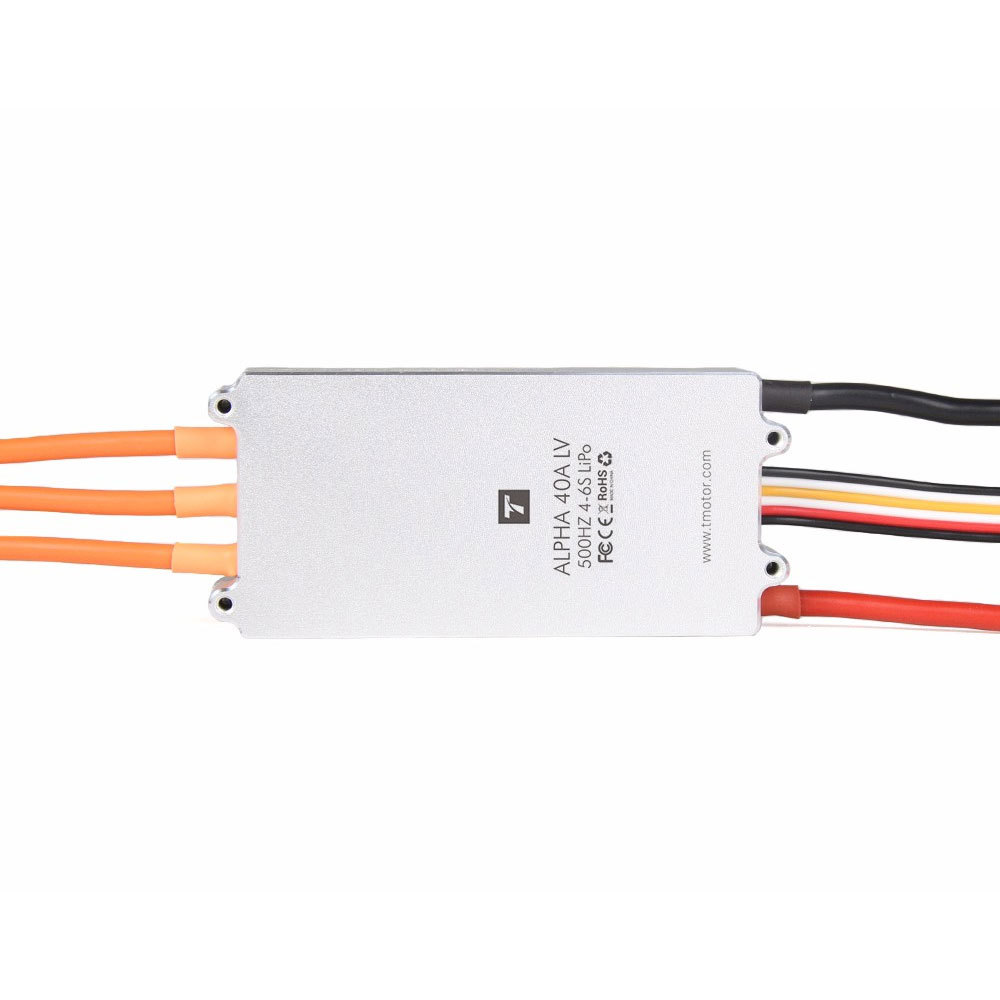

T-MOTOR ALPHA 40A LV Brushless ESC

SKU: IA0110
0.0 (0)
$69.99 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
    Please select the information you wantX
Quantity:
  • T-MOTOR ALPHA 40A LV Brushless ESC
  • T-MOTOR ALPHA 40A LV Brushless ESC
  • T-MOTOR ALPHA 40A LV Brushless ESC
  • T-MOTOR ALPHA 40A LV Brushless ESC
Frequently Bought Together
more
Frequently Bought Together
  • Description

T-MOTOR Alpha 40A LV esc is low noise, low temperature and low interference. It has fast throttle response and high efficiency. It is compatible with U3 KV700 , U5 KV400 , MN5212 KV340 ,MN4006 KV380 , MN501S KV360, MN501S KV300, MN7005 KV230 and etc.


Specifications:
Item Brand: T-Motor
Item Model: Alpha 40A LV
Size: 64.5 x 29.4 x 14.7mm
Weight: 54.5g
Support Voltage: 18-252.2V
BEC: No
Con. Current: 40A
Peak Current: 60A
Standby Consumption: ≤50mA
Throttle Pos. Range: 1100-1940us
Throttle Refresh Frequency: 500Hz
Throttle Response Speed: 120ms


Package Included:
T-MOTOR ALPHA 40A LV Brushless ESC x 1
User Manual x 1


Note: For Alpha series esc, the firmware need to flash to suit for different motor. When you order this, please write the motor type you use with this esc in the comment bar.
