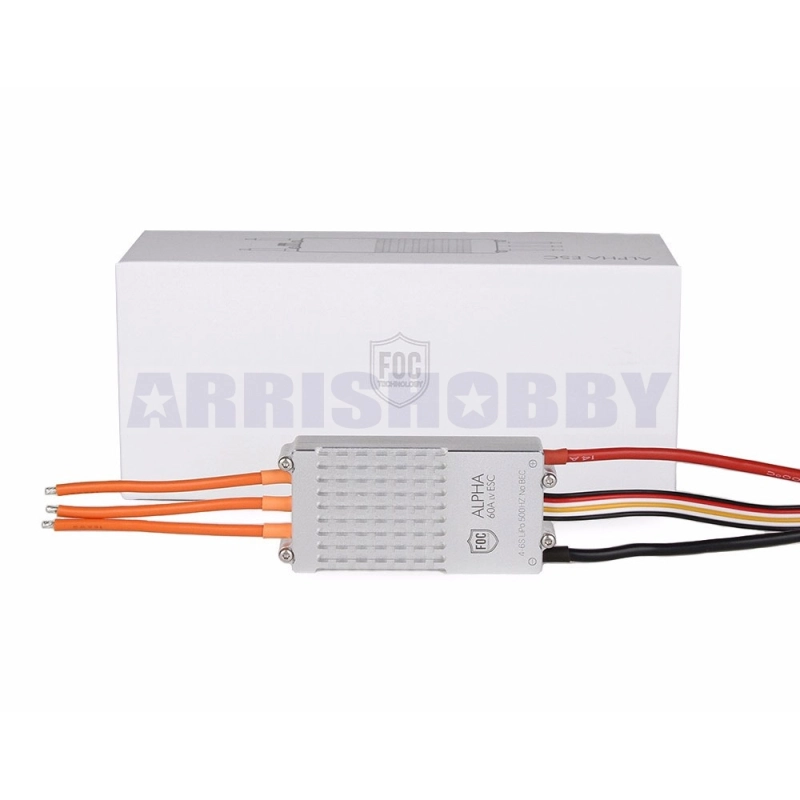

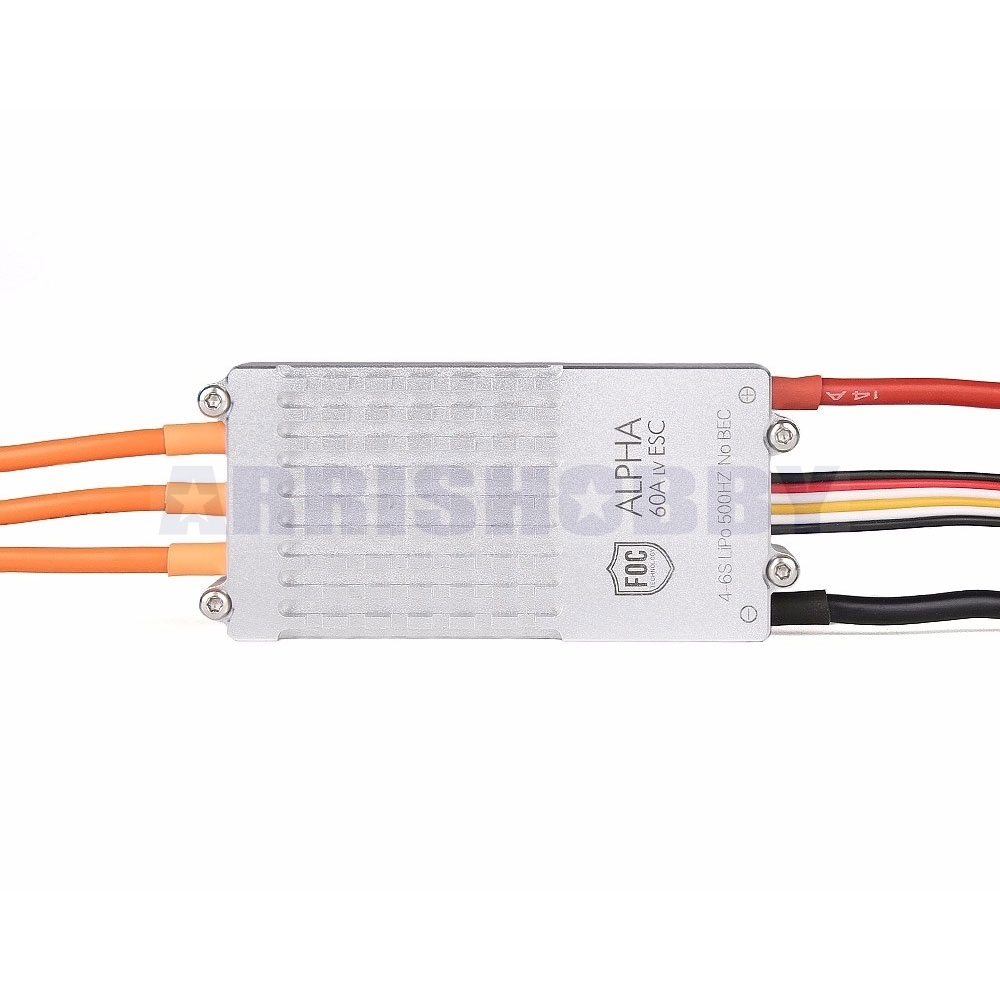

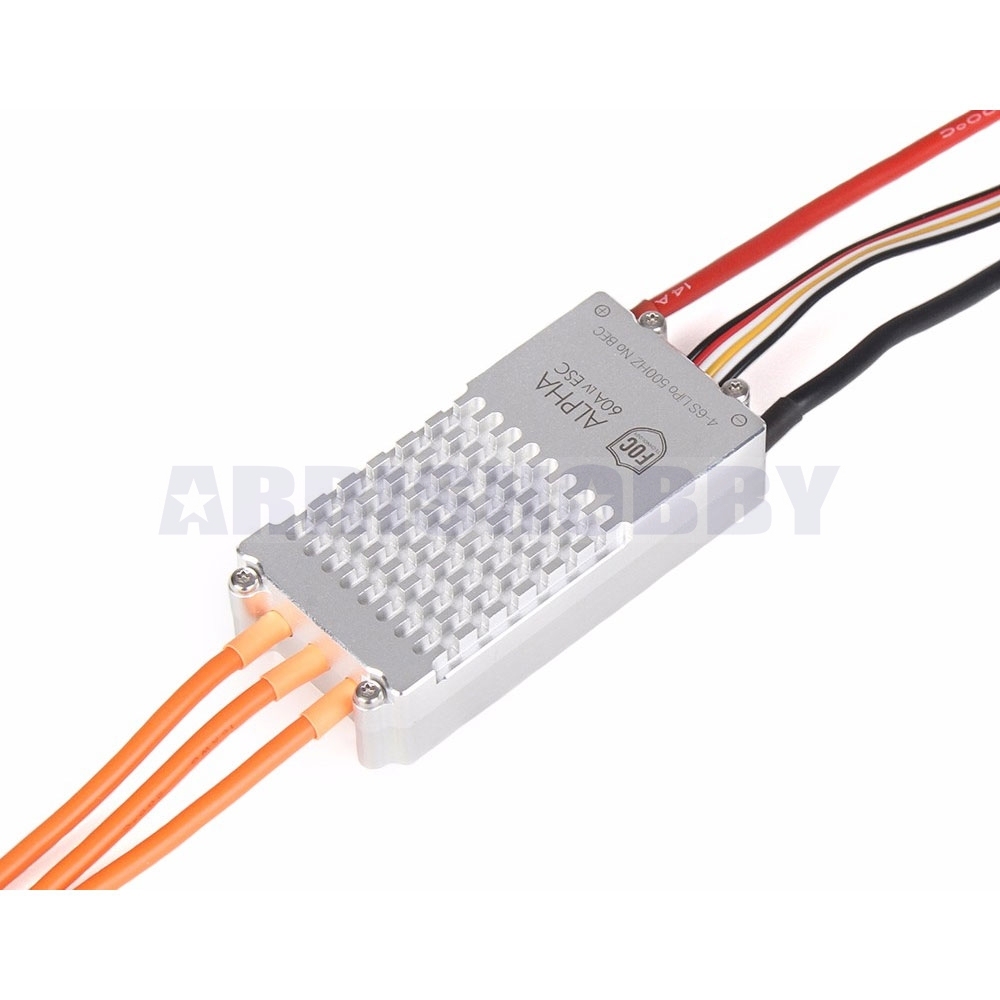

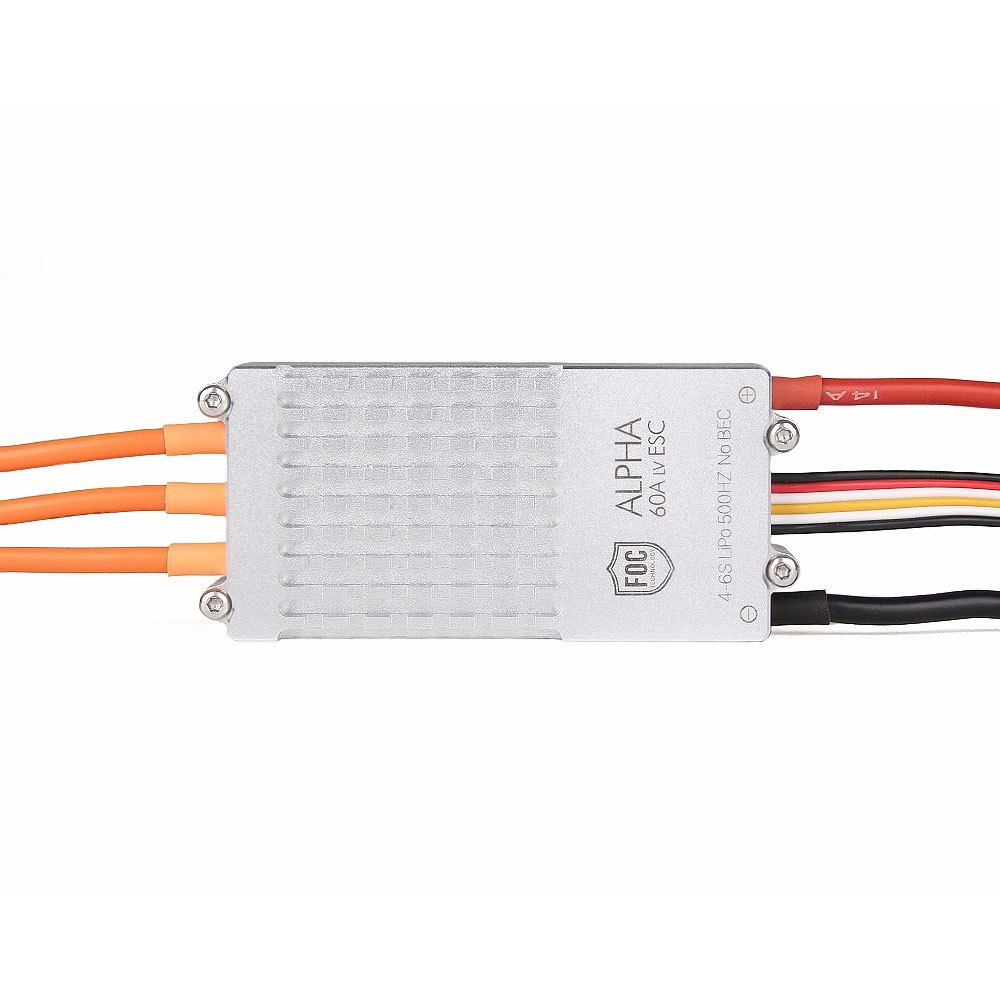

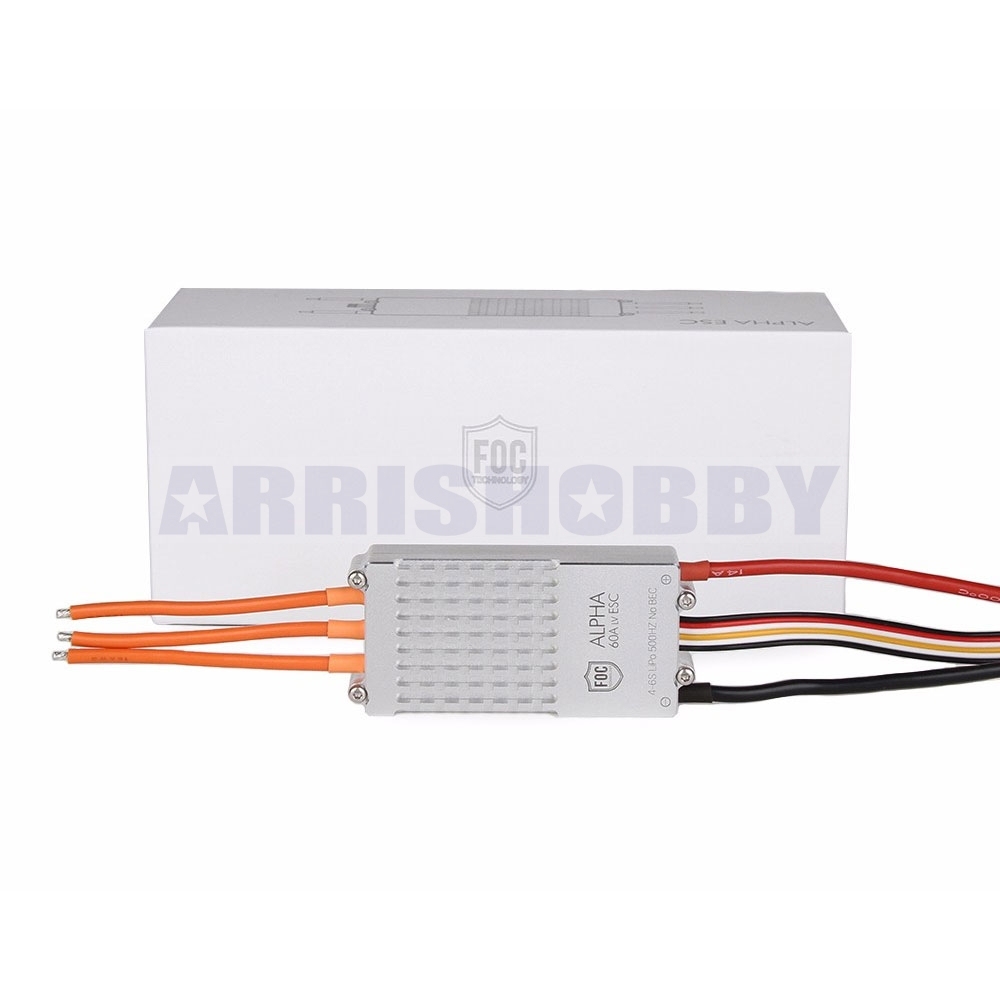

T-MOTOR ALPHA 60A LV Brushless ESC

T-MOTOR Alpha 60A LV esc is low noise, low temperature and low interference. It has fast throttle response and high efficiency. It is compatible with MN505S KV320, MN505S KV380, MN601S KV320, MN605S KV320, U8II/Lite KV150, U8II/Lite KV190 and etc.


Specifications:
Item Brand: T-Motor
Item Model: Alpha 60A LV
Size: 71.3 x 32.5 x 15.9mm
Weight: 62.8g
Support Voltage: 18-25.2V
BEC: No
Con. Current: 40A
Peak Current: 60A
Standby Consumption: ≤50mA
Throttle Pos. Range: 1100-1900us
Throttle Refresh Frequency: 500Hz
Throttle Response Speed: 50ms


Package Included:
T-MOTOR ALPHA 60A LV Brushless ESC x 1
User Manual x 1


Note: For Alpha series esc, the firmware need to flash to suit for different motor. When you order this, please write the motor type you use with this esc in the comment bar.
