T-Motor A6-X Propulsion System A6 Motor FOC 80A ESC 23" Propeller Combo for UAV Drones

SKU: GA0369-CW
0.0 (0)
$149.00 $0.00
 It is suitable for 30mm outer diameter drone arms. With the 3.5-5kg rated  thrust, it is suitable for 5L Quadcopter and 10L hexacopter drone for agricultural spraying.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
  • Version:
    CW
    CCW
    Please select the information you wantX
Quantity:
  • T-Motor A6-X Propulsion System A6 Motor FOC 80A ESC 23" Propeller Combo for UAV Drones
  • T-Motor A6-X Propulsion System A6 Motor FOC 80A ESC 23" Propeller Combo for UAV Drones
  • T-Motor A6-X Propulsion System A6 Motor FOC 80A ESC 23" Propeller Combo for UAV Drones
  • T-Motor A6-X Propulsion System A6 Motor FOC 80A ESC 23" Propeller Combo for UAV Drones
  • T-Motor A6-X Propulsion System A6 Motor FOC 80A ESC 23" Propeller Combo for UAV Drones
  • T-Motor A6-X Propulsion System A6 Motor FOC 80A ESC 23" Propeller Combo for UAV Drones
  • T-Motor A6-X Propulsion System A6 Motor FOC 80A ESC 23" Propeller Combo for UAV Drones
Frequently Bought Together
more
Frequently Bought Together
  • Description

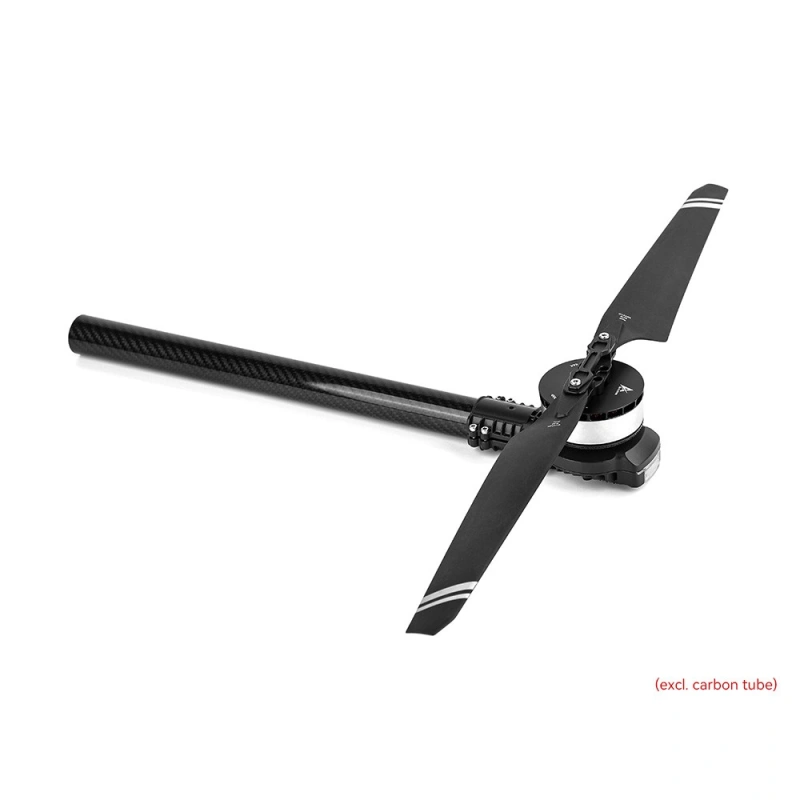

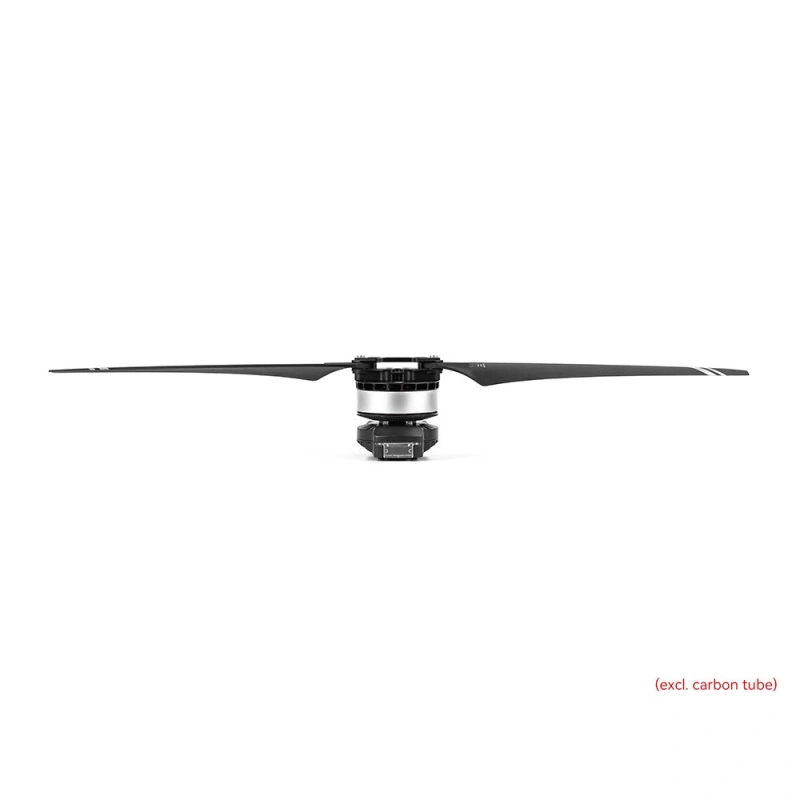

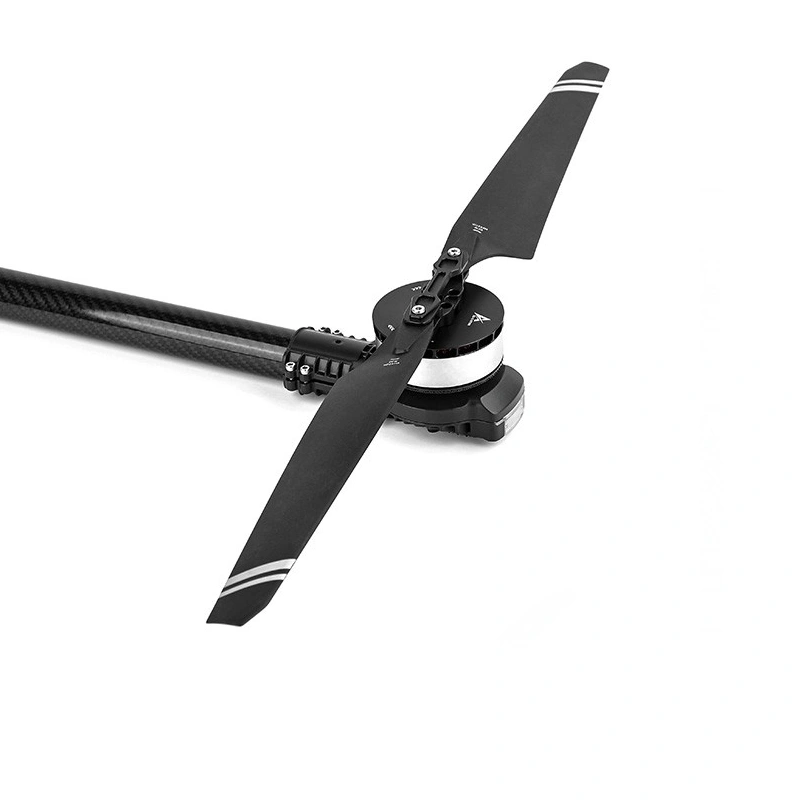

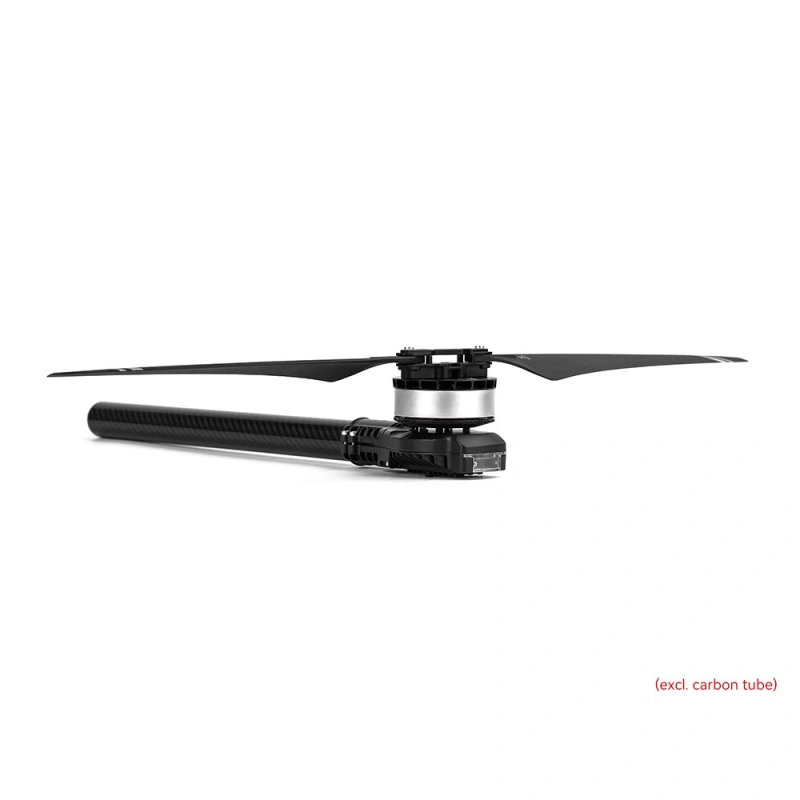

T-motor A6 propulsion system is consists of A6 180kv brushless motor, 80A FOC ESC AND 23" folding propeller. It is suitable for 30mm outer diameter drone arms. With the 3.5-5kg rated  thrust, it is suitable for 5L Quadcopter and 10L hexacopter drone for agricultural spraying. It is good for quadcopter with 14-20kg take-off weight and hexacopter with 21-30kg take-off weight.

Main Features:
SAFE & RELIABLE
1. Strength and fatigue simulations on the key parts of the stressedparts
2. Propeller adaptive locking design
3. Magnetocaloric Coupling Simulations
4. Cyclic Cooling Technology

QUICK DISASSEMBLY & ASSEMBLY
Modular Design without the need for the assembly of power components, users could achieve 5-step installation
by only mounting the module onto the UAV arm.

EASY TO CLEAN
The sealing design and potting process, allow you to rinse directly with water for quick cleaning.

LONG ENDURANCE
With lightweight design heat dissipation runner system, and magnetocaloric coupling simulations,
the system is more energy-efficient for longer flight time.

LONG SERVICE LIFE
The hot-charging process helps improve the assembly accuracy and reduce the radial spacing. Aging test runs for 2000h.

MULTIPLE FUNCTIONS
Built-in Monitoring, Fully Parameterized Settings, Cloud Box Analysis, Multi-protocol Compatibility,
Kinetic Energy Recovery, PWM/CAN Dual Backup, Adjustable Navigation Lights, Intelligent ProtectionsNormal/Speed Modes Custom Switch, Various tools.

Specifications:
Item Brand: T-motor
Item Model: A6-X KV180
Setup: A6-X(motor)+FOC 80A(ESC)+MF23P(Prop)
Recommended battery: 12-14S (Lipo)
Rated Thrust: 3.5-5kg
Efficiency at rated thrust: 8.4g/W (3.5kg)
Max. Thrust: 11kg
Tube size: 30mm
Wire material, wire gauge, color: Power wire: 14# AWG red&black
                                                  Signal wire: 5P Teflon
Wire length: 1000+-5mm
Weight: 710g+-2% (incl. wires+prop)
IP: IPX6
Recommended ambient temperature: -30℃-50℃

Motor specifications:
Stator size: 62*15mm
KV: 180KV

ESC specifications:
Throttle range: 1050-1950us (fixed)
Protocol: DroneCAN, UAV CAN, CUBE CAN
Control method: PWM/CAN
Max. voltage: 61V
Peak current (for a short time): 80A
BEC: No

Prop specifications:
Model No.: MF23P
Length: 23 inch (585mm)


Package Included:
T-motor A6-X modular propulsion system x 1
Parts bag x 1
