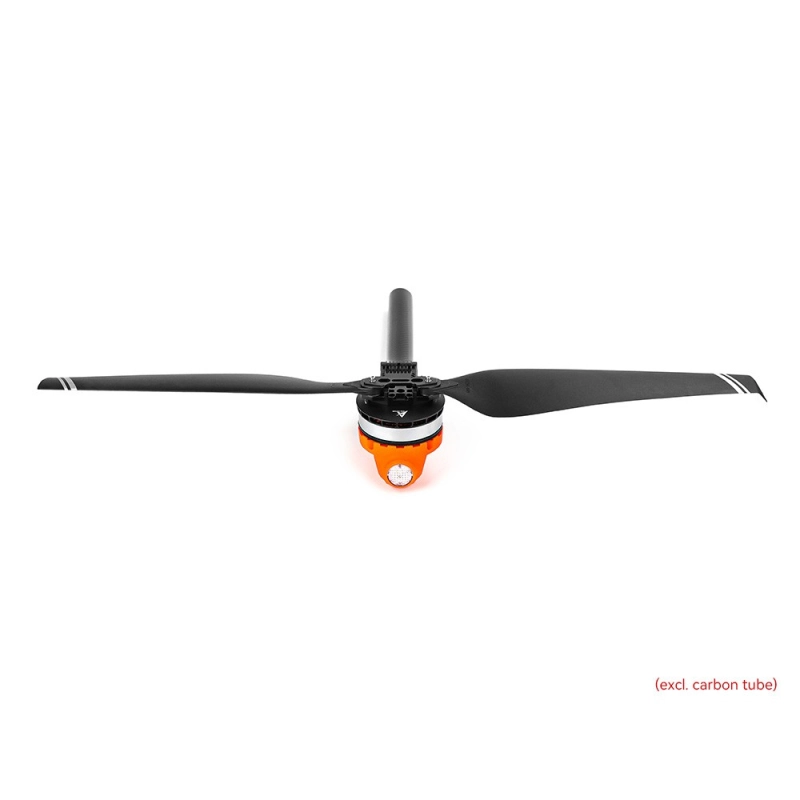

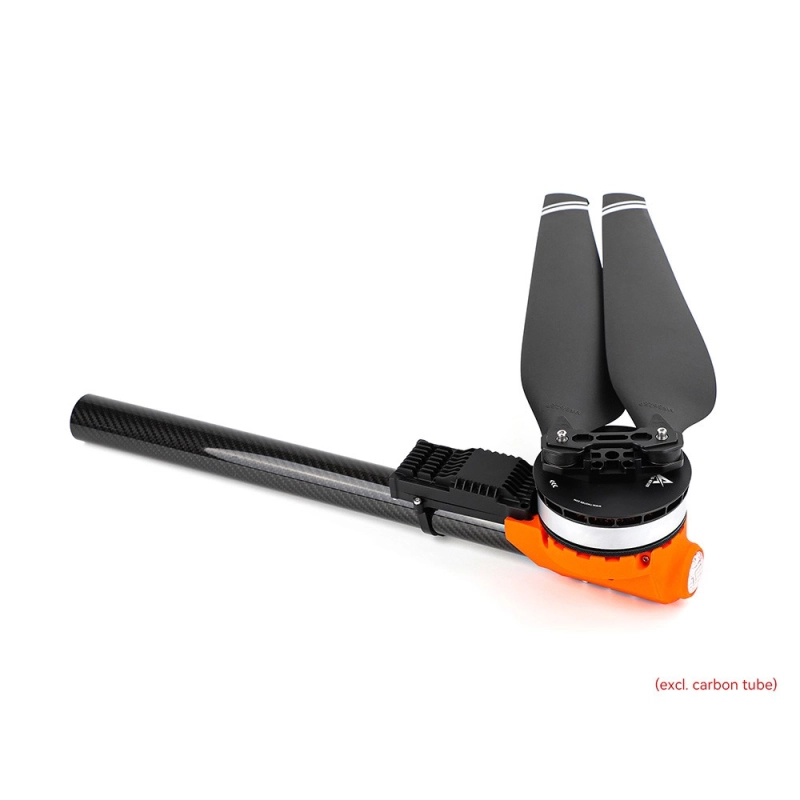

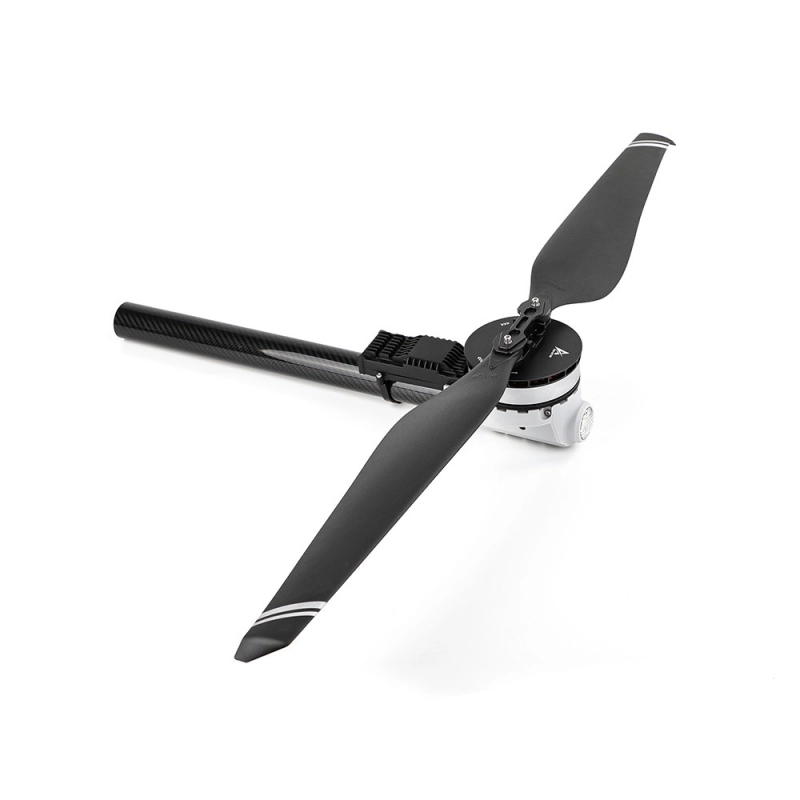

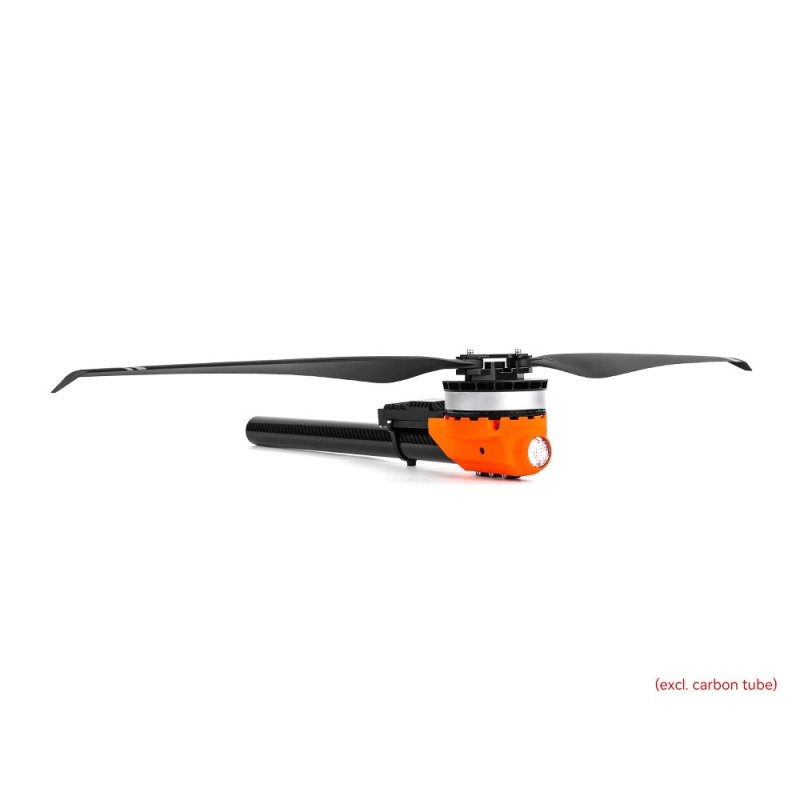

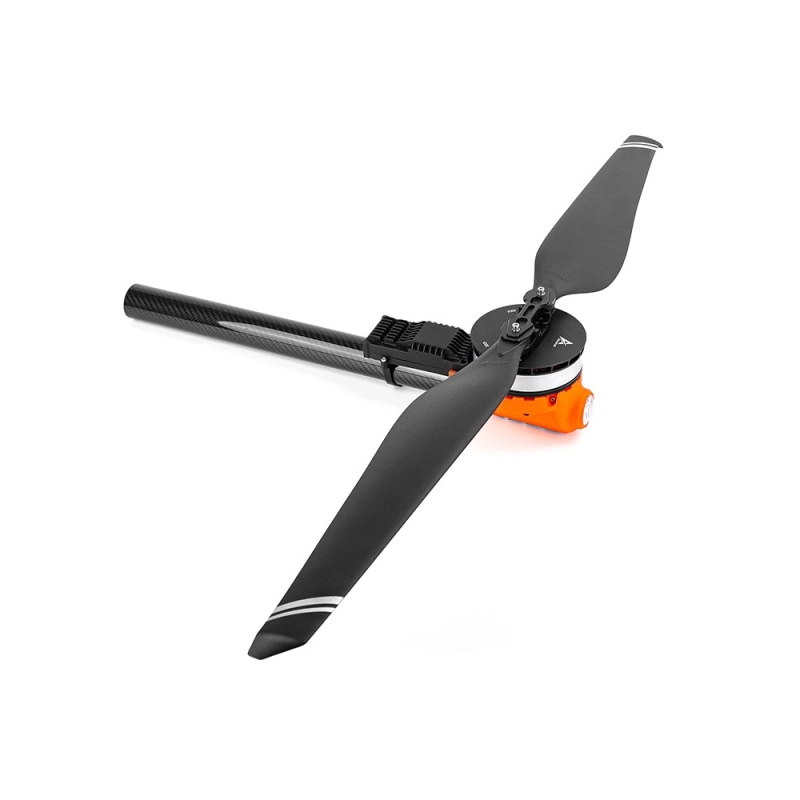

T-motor A10 propulsion system is consists of A10 120KVbrushless motor, 100A FOC ESC AND 34" folding propeller. It is suitable for 40mm outer diameter drone arms. With the 7-11kg rated thrust, it is suitable for 16L Quadcopter and 25L hexacopter drone for agricultural spraying. It is good for quadcopter with 28-44kg take-off weight and hexacopter with 42-66kg take-off weight.
Note: The silicone protective cover is orange as default, if you need grey color, please write in the comment bar when you place the order.
Main Features:
SAFE & RELIABLE
- Strength and fatigue simulations on the key parts of the stressedparts
- Propeller adaptive locking design
- Magnetocaloric Coupling Simulations
- Cyclic Cooling Technology
QUICK DISASSEMBLY & ASSEMBLY
Modular Design without the need for the assembly of power components, users could achieve 5-step installation
by only mounting the module onto the UAV arm.
EASY TO CLEAN
The sealing design and potting process, allow you to rinse directly with water for quick cleaning.
LONG ENDURANCE
With lightweight design heat dissipation runner system, and magnetocaloric coupling simulations,the system is more energy-efficient for longer flight time.
LONG SERVICE LIFE
The hot-charging process helps improve the assembly accuracy and reduce the radial spacing. Aging test runs for 2000h.
MULTIPLE FUNCTIONS
Built-in Monitoring, Fully Parameterized Settings, Cloud Box Analysis, Multi-protocol Compatibility, Kinetic Energy Recovery, PWM/CAN Dual Backup, Adjustable Navigation Lights, Intelligent ProtectionsNormal/Speed Modes Custom Switch, Various tools.
Specifications:
Item Brand: T-motor
Item Model: A10
Setup: A10(motor)+14S FOC 100A(ESC)+MF3424P(Prop)
Recommended battery: 12-14S (Lipo)
Rated Thrust: 7-11kg
Efficiency at rated thrust: 7.6g/W (11kg)
Max. Thrust: 22kg
Tube size: 40mm
Wire material, wire gauge, color: Power wire: 12# AWG red&black
Signal wire: 5P Teflon
Wire length: 1230+-5mm
Weight: 1520g+-2% (incl. wires+prop)
IP: IPX6
Recommended ambient temperature: -30℃-50℃
Motor specifications:
Stator size: 99*15mm
KV: 120KV
ESC specifications:
Throttle range: 1100-1940us (fixed)
Protocol: Drone CAN, UAV CAN, CUBE CAN
Control method: PWM/CAN
Max. voltage: 61V
Peak current (for a short time): 100A
BEC: No
Prop specifications:
Model No.: MF3424P
Length: 34 inch (874mm)
Package Included:
T-motor A10 modular propulsion system x 1
Parts bag x 1
