Radiomaster TX16S Hall Sensor Gimbal 16CH OpenTX Multi Protocal Radio Transmitter

Radiomaster TX16S
OpenTX firmware
Internal Multi-protocol RF system
Built in USB-C Charging
(10% OFF)
    Please select the information you wantX
  • Versions:
    Hall Sensor Version
    Master Fire Combo
  • Mode:
    Mode 2 (Left Hand Throttle)
  • Ships From:
(42 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)
Radiomaster TX16S might be the best cost effective OpenTX radio in the market now. It has almost everything you need along with expandability and upgradeablity for the future such as the Touch panel ready mother  board that will support future touch compatible version of OpenTX firmware and UART expansion slots. The radiomaster TX16S comes with super smooth precision Hall gimbals with CNC facias offer refined locks and performance. It also has built-in USB-C charger, class leading ergonomics, internal multi-module as standard, improved key layout, menu navigation and sliders. Suitable for rc drones, airplanes, fixed-wing, rc cars and etc.

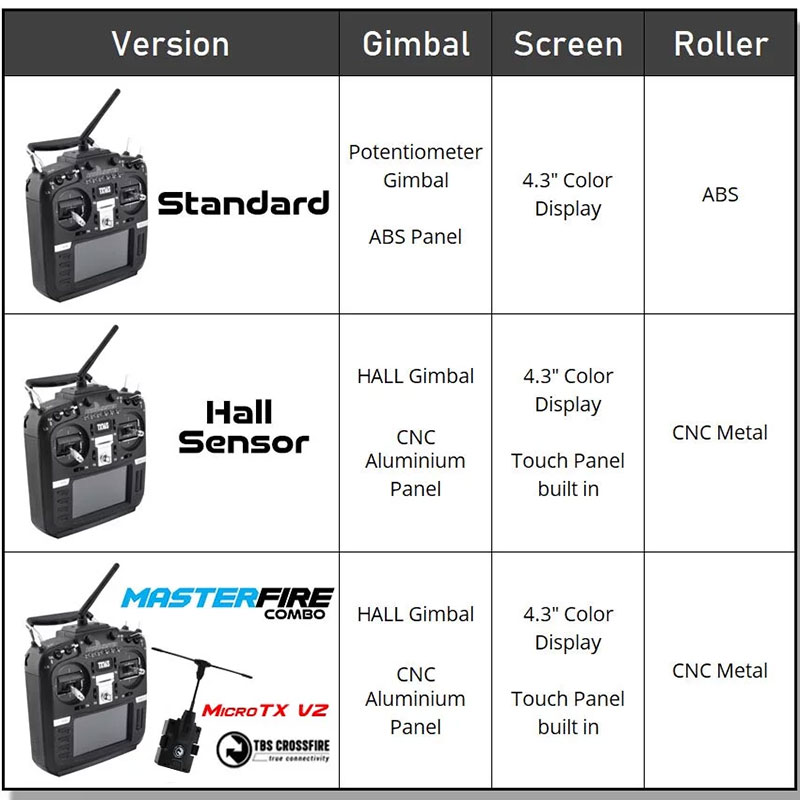

For the Radiomaster TX16S, there are 3 versions, the the main differences is as below,the standard version and the one with TBS module had been soldo out:
radiomaster tx16s hall gimbal radio
radiomater tx16s hall versionradiomaster tx16s reviewradiomaster tx16s hall sensor gimbal opentx radioradiomaster tx16s hall sensor gimbal opentx radioradiomaster tx16s hall sensor gimbal opentx radioradiomaster tx16sradiomaster tx16s radioradiomaster tx16s hallradiomaster tx16s radioradiomaster tx16s opentx remote controller
Item Brand: RadioMaster
Item Model:  RadioMaster TX16S
Channel: 16CH
Voltage: DC7-8.4V
Battery Compartment: 25*52*97mm

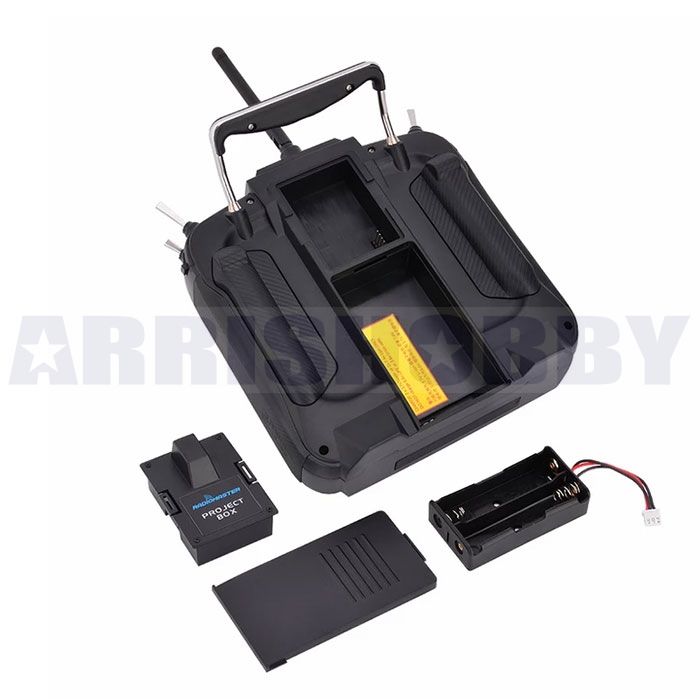

Battery: 2 x18650 (tray included) or 7.4v 2s Lipo (Batteries not included)
Current: 400mah (excluding external module)
External Micro SD slot: Card Included
Size: 183*212*66 mm
Weight: 736g (without battery)

Main Features:
Industrial grade 4.3 inch 480*272 outdoor readable color screen (Touch Panel included in TX16S Hall gimbal version and the Hall +TBS micro TX set( Master Fire Combo)  verion)
Compatible with OpenTX
Wheel menu button
Full Size High Quality HALL sensor gimbals with CNC Aluminum Facias
Internal Multi-protocol RF System
Full Speed Native TBS Crossfire support (400K)
Supports Telemetry (Protocol and Receiver dependent)
Memory 16M (can be expanded by Micro SD card)
Voice function
Vibration reminder function
Improved JR module slot
6-Flight Mode Buttons (Pixhawk and more!)
Three-color LED status display
USB-C Charging port with 2 cell battery management . 1.5A current Max.
USB-C Simulator and PC connection port
External UART ports to expand the capabilities of your radio.

Internal Multi-protocol RF System
Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futabas SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models

RF Chip Data
The TX16S internal RF system features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module most of today’s prominent RF protocols (See RF Chip data below). The RadioMaster internal RF module will support firmware updates directly from the radios Operating system. No complicated update procedures.

Package Included:
1 x Radiomaster TX16S Radio
1 x USB-C cable
1 x 18650 battery tray

Radiomaster TX16S User Manual
