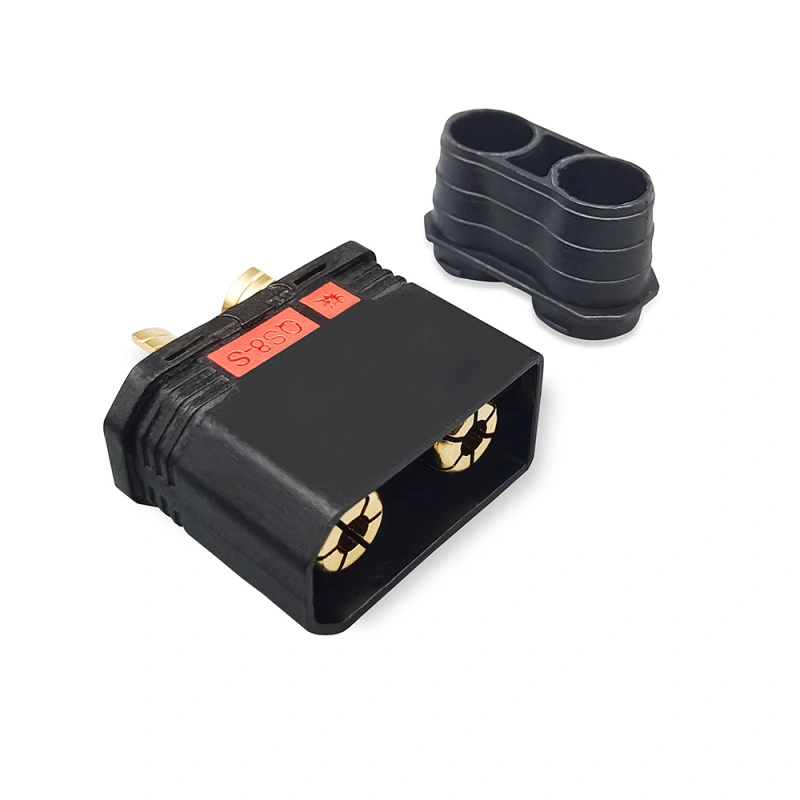

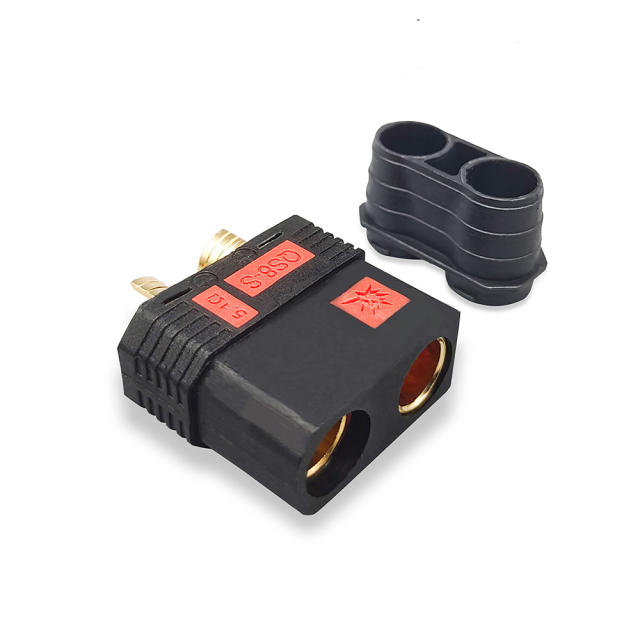

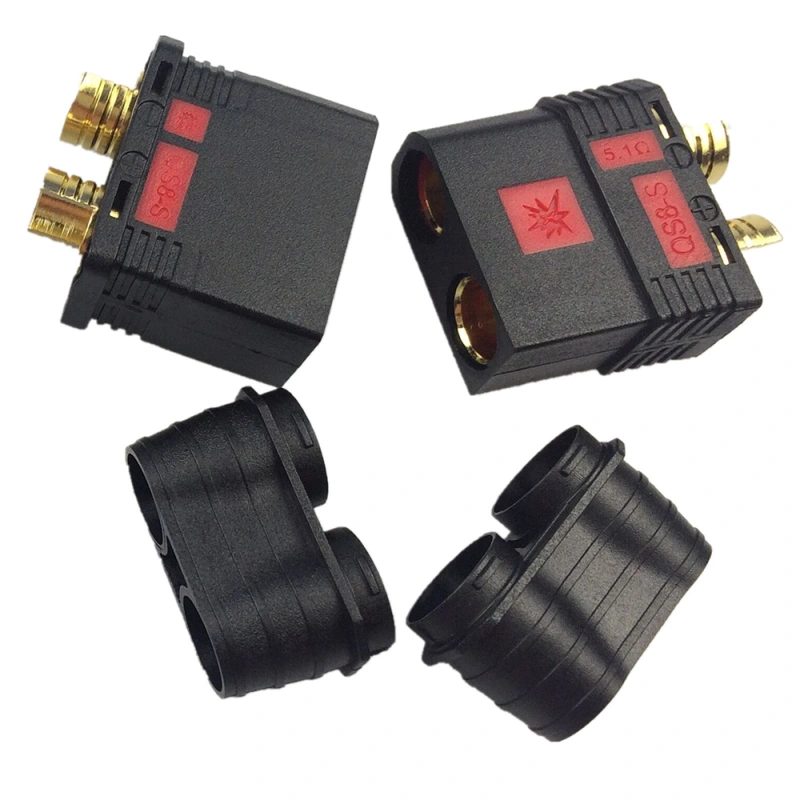

The QS8-S Heavy-duty Anti-spark Battery Connector is special for UAV agriculture drone power plug and RC car and electric vehicles,adn the QS8-S comes with anti-spark function,and used to avoid sparks in the initial connection.
Features:
1.Anti-spark function;
2.Hign current;
3.High temperature resistance;
Specification:
Model: QS8-S
Color:Black
Insulation material:PA
Connector material: gold plated copper 8mm
Temperature range: -20-120 ℃
Rated voltage:DC 500 V
Rated current: 110A
Instantaneous current:180A
Anti-Flammability rating:UL94 V0
Contact resistance:0.51mΩ
Wire guage:6-10AWG
Use Times:1000 times
