Lji ZD850 6-Axis 850mm Carbon Fiber Umbrella Folding Hexacopter Frame with Landing Gear

CA0334-335
Price:
    Please select the information you wantX
  • Versions:
    Frame Kit
    Combo 1
Quantity:
-
+
(40 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

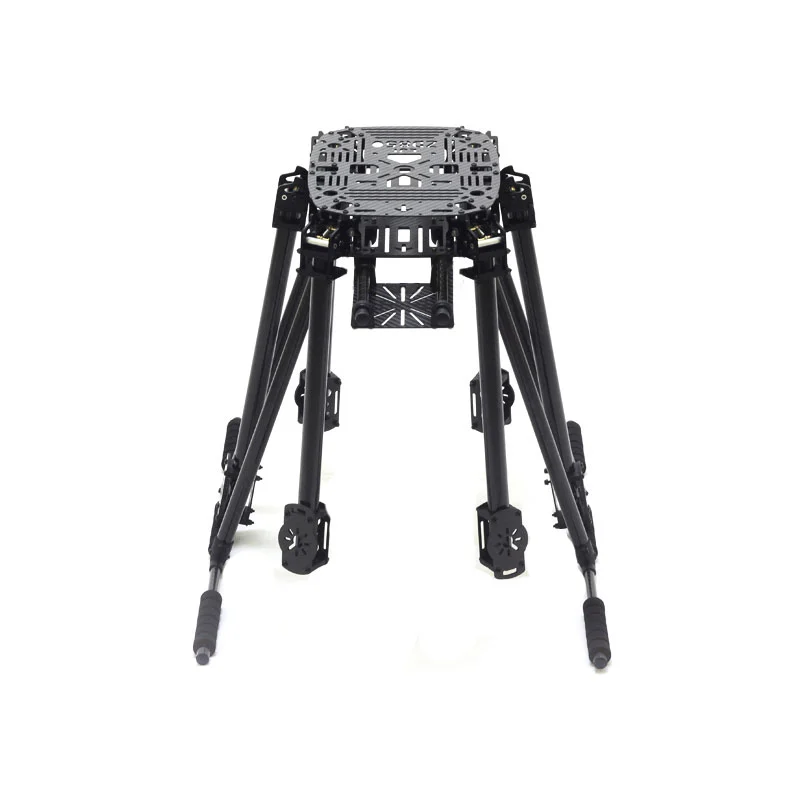

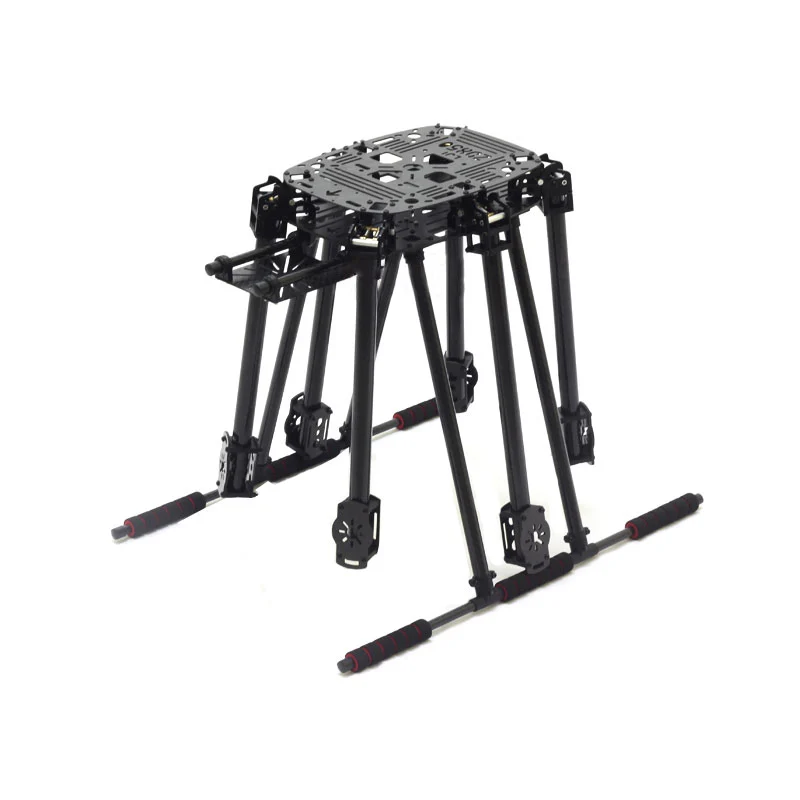

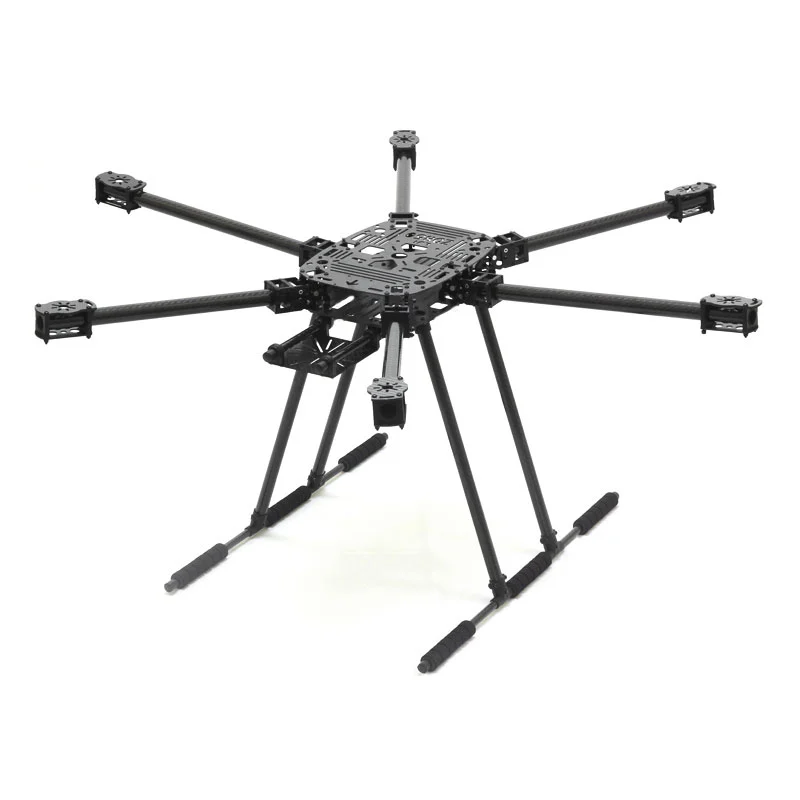

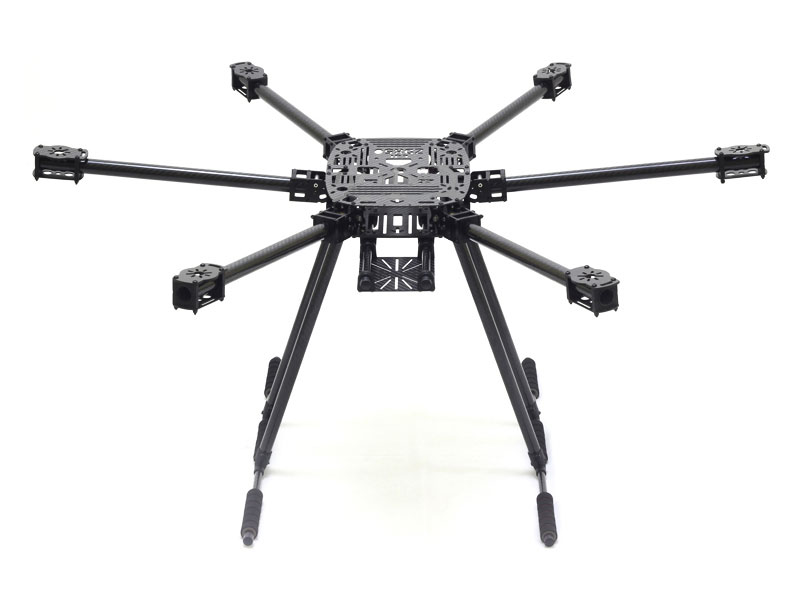

Lji ZD850 6-Axis 850mm Carbon Fiber Umbrella Folding Hexacopter Frame with Landing Gear

LJI ZD850 is one hexacopter specially designed for aerial photography. It comes with gimbal mount, with the 850mm  wheelbase, it can support 16" propeller at most.

Main Features:
--The arm uses 5° pitch up design to maximize the power, the arm uses 20mm diameter carbon tube.
--Aluminum Alloy Folding Parts, Nylon Pipe Clamp (Tighter Clamp) 8-hole Motor Mount, Compatible with most of the 4xxx and 5xxx series motors in the market.
--The diagonal wheelbase of ZD850 is about 850mm, suitable for 15", 16" propellers
--The Center plate size 245mmx180mm, and the height is about 35mm, which provides you super big space
--Gimbal rod adopts 10*330mm long carbon tube, which can freely expand the desired length.
--Carbon fiber landing skid, the bearing capacity is over 50kg.

Specifications:
Item Brand: LJI
Item Model: ZD850, ZD975
Diagonal wheelbase: 850mm (ZD850), 975mm (ZD975)
Suitable Propeller: 15", 16"
Arm Diameter: 20mm
Upper plate thickness: 1.5mm
Lower plate thickness: 3.0mm
Landing Skid height: 350mm
Net weight: about 1210g

Frame Kit Included:
Lji ZD850 6-Axis 850mm Carbon Fiber Frame Kit x 1 (Umassembled)
Battery plate x 1

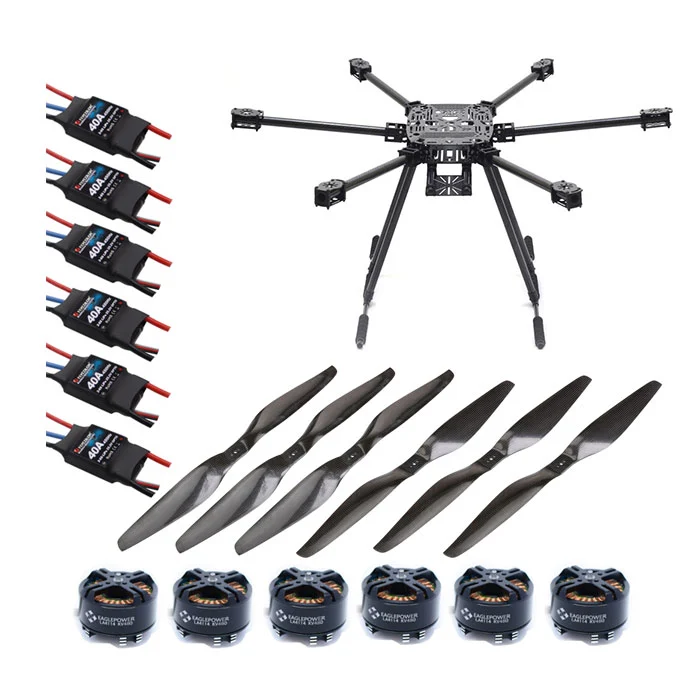

Combo 1 Included:
Lji ZD850 6-Axis 850mm Carbon Fiber Frame Kit x 1 (Umassembled)
Battery plate x 1
Eaglepower 4114 480KV Brushless Motor x 6
Flycolor 40A OPTO 2-6S ESC for Multirotors x 6
Tarot 1655 Carbon Fiber High Efficient Propeller x 3 (3CW+3CCW)
Eaglepower LA4114 480KV 4-6S Brushless Motor is great for multicopters. High quality, high efficiency and long working life.



Specifications:
Item Brand: Eaglepower
Model: LA4114 480KV
KV: 480
Motor size: 47.5x32.5 mm
Weight: 154g
Idle current: 1.6A
Max. Continuous Current (A): 31A
No. of Cells: 3-6S LiPo
Max. Continuous Power (W): 690W
Internal Resistance: 0.062 ohm



Flycolor 40A ESC Specifications:
Input Voltage:2-6S
Con. Current: 40A
Max. Current (10s): 50A
BEC: No
Dimension: 45 x 27 x 10mm
Suitable for: Quadcopters, Hexacopter and other Drones





















Tarot 1655 Carbon Fiber High Efficient Propeller CW/CCW TL2835
Main Features:
--Root has unique design, which increases the strength and efficiency
--100% carbon TORAY 3K pure carbon fiber applied
--Well-balanced from factory
--Optimized propeller efficiency and loading stability
