Note:

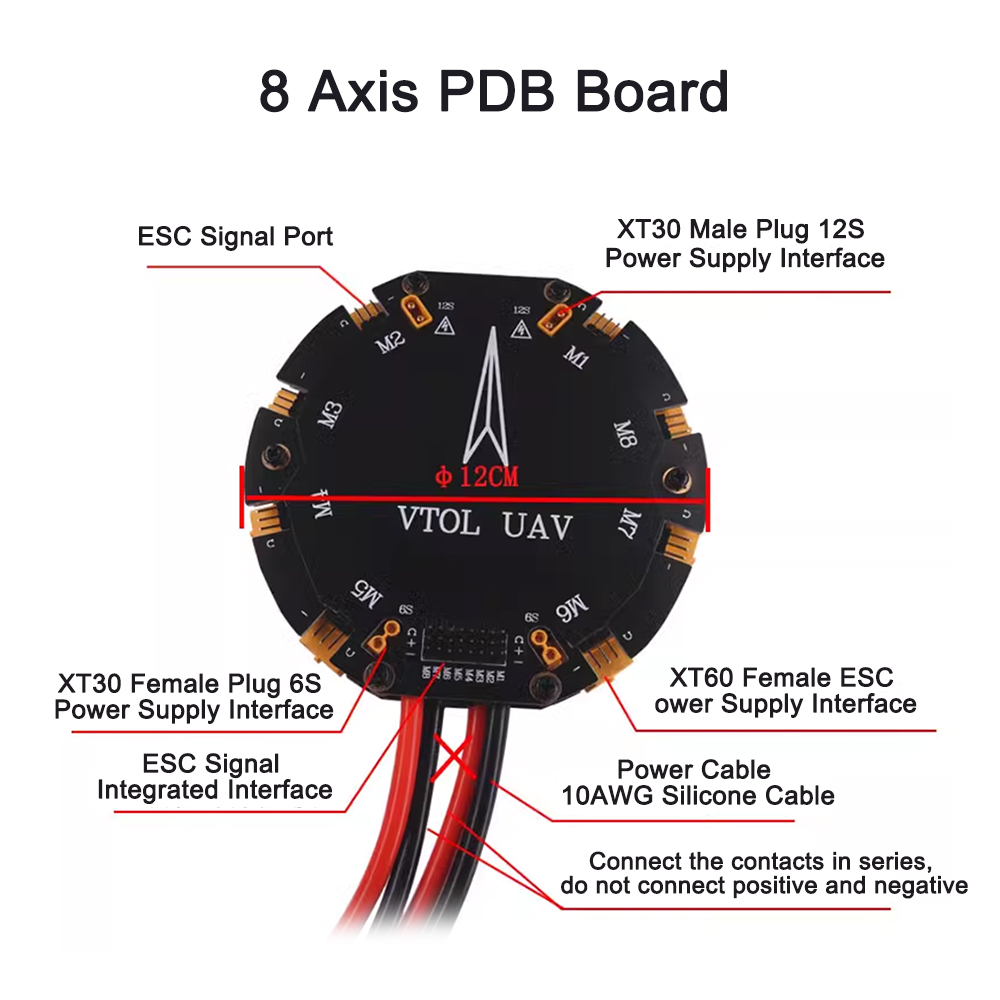

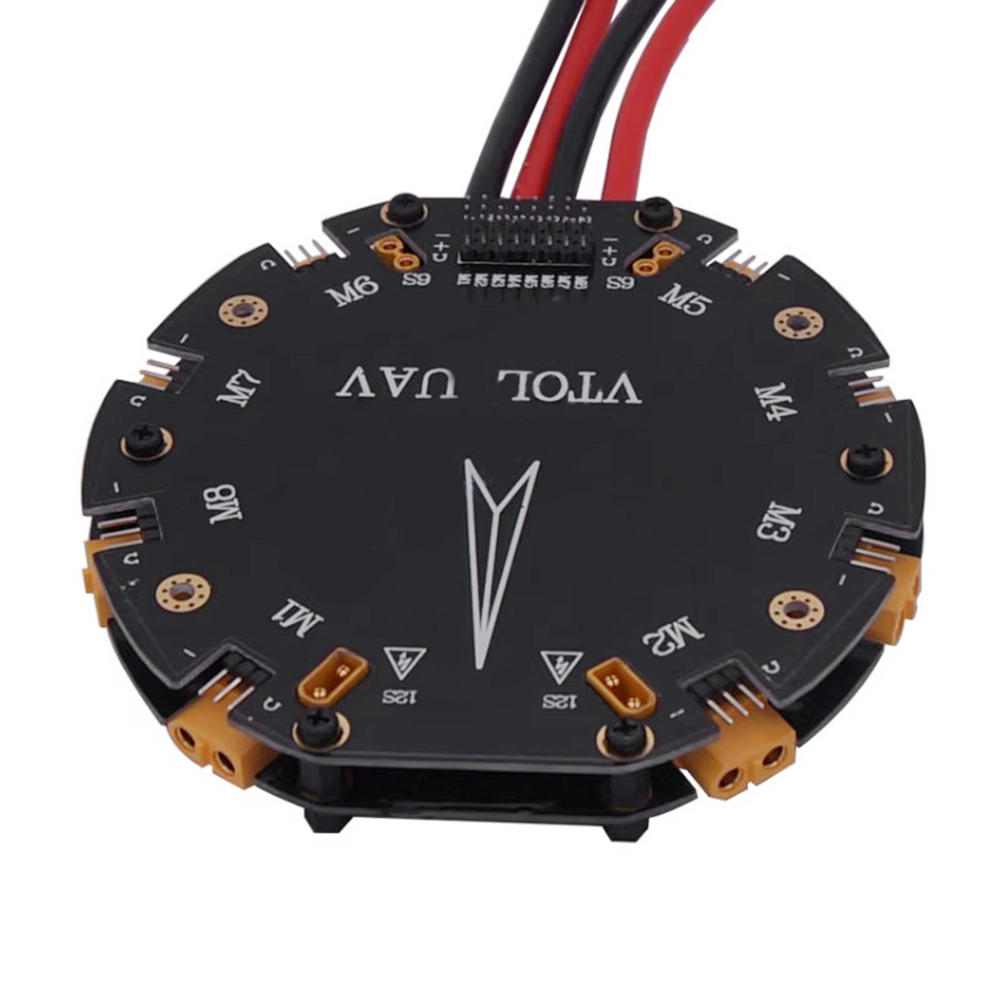

The power distribution board is two lines in series and can be used normally after connected two batteries well. If the need for 6S power supply, please connect the left side of the red line, and the right of the black line,the middle two is a series node, is a short circuit, can not be connected to the two lines in series.

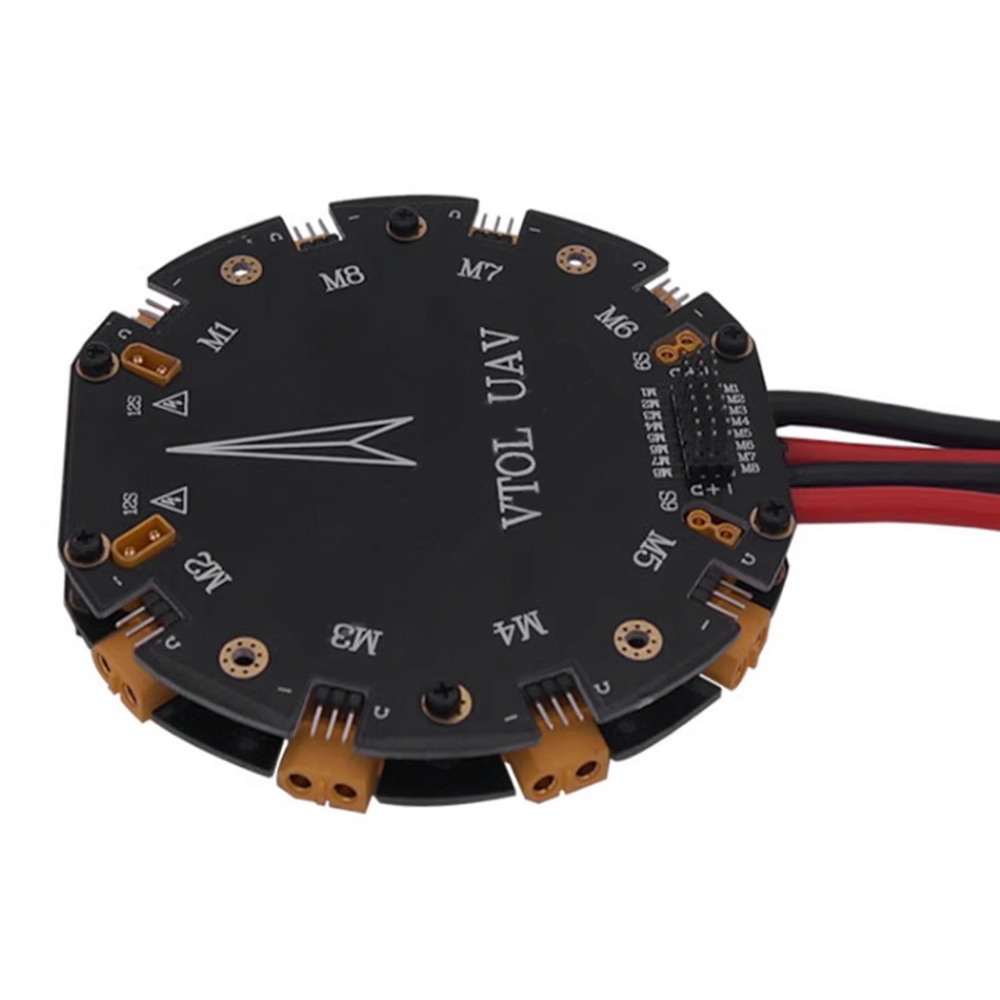

The side 8pcs X60 female connectors output is 12S,power for ESC.The upwards 2pcs XT30 female connector is for 6S power supply,and upwards 2pcs XT30 male connector is for 12S power supply.

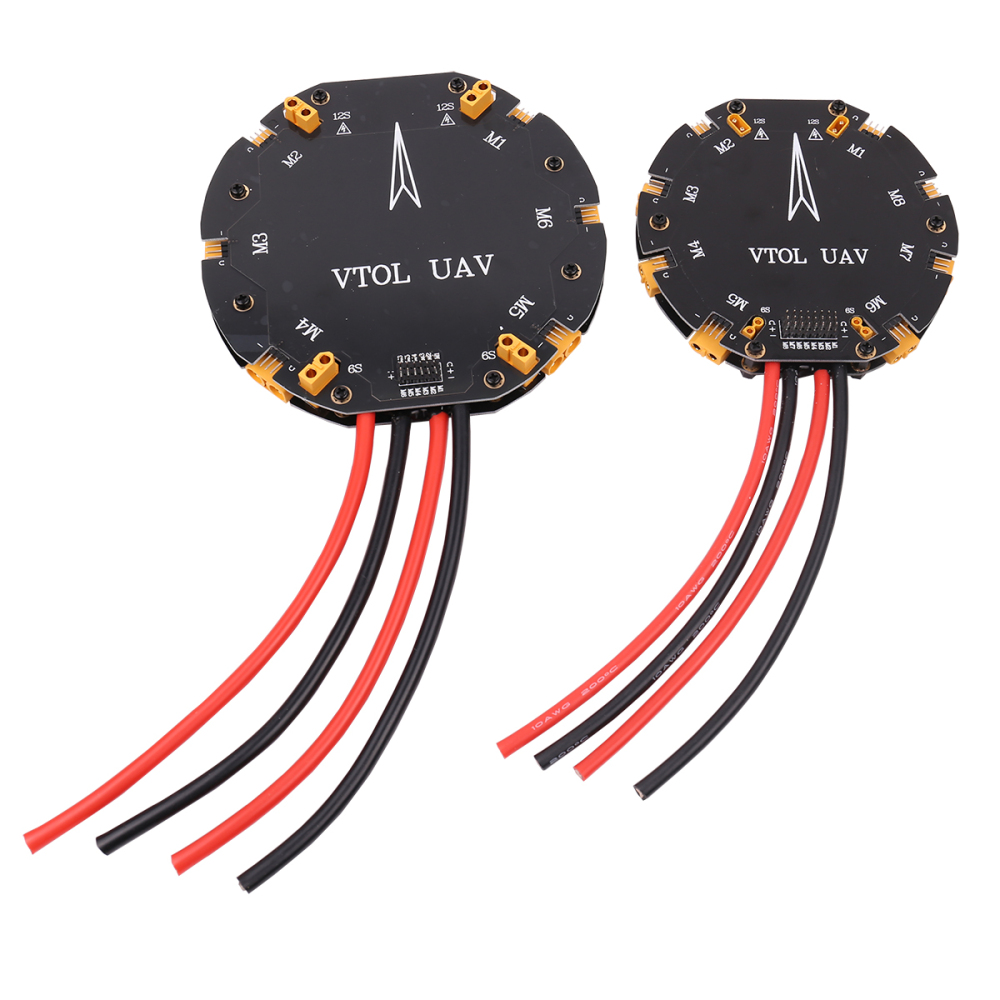

The power distribution board is designed for large UAV, crop spraying drone or heavy lifting.
Specification:
Model: ARRIS
Max Current: 480A
Size: φ120*16mm
Weight: 130g (without cable)
Suitable for Octocopter
Cable size:10awg
Connector:XT60 Female x 8pcs,XT30 Male x 2pcs,XT30 Female x 2pcs
Package Includes:
1pcs x Power distribution board with XT30 male and female and XT60 female connector
Tips:
You need to order XT60 male connector separately.
