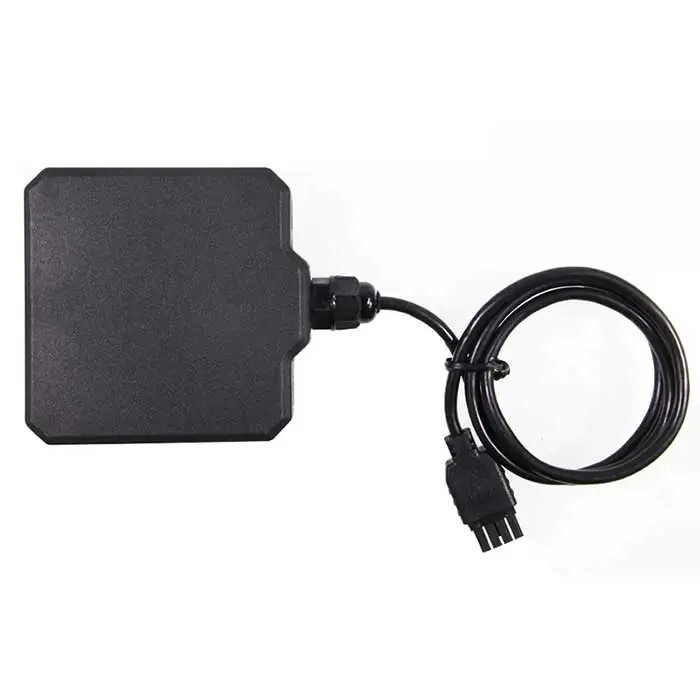

JIYI K ++ V2 Obstacle Avoidance Radar Module

Obstacle Avoidance Radar for JIYI K++ Flight controller
Price:
    Please select the information you wantX
Quantity:
-
+
(49 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews
JIYI K++ Obstacle avoidance radar module is mainly used to measure the relative distance between the drone and the obstacle in front of the flight, so as to avoid the obstacle effectively. Obstacle avoidance radar adopts 24GHz radar technology, which can work in all weather under strong light, high temperature, fog, dust, wind and night. Its sensitivity is high, the detection distance is long, the signal transmission is fast and stable. Electric wires, small trees with a trunk of 10 cm, people with a height of 1.7 m, and telephone poles with a height of 15 cm play an excellent obstacle avoidance function for high-speed drones, which is very suitable for plant protection drones to work in complex outdoor environments.

Specifications:
Product size: 67.5x66x16.5mm
Weight: 80g
Modulation Mode: FMCW
Center Frequency: 24.125GHz
Ranging range: 1-25m
Ranging Accuracy: 0.1m
Range Resolution: 0.6m
Output Frequency:  40Hz
Power Comsumption: 3W @25℃
Working Voltage: 9-28V
Working Temperature: -20℃ to 85℃
Protection Level: IP67
Output Interface: CAN
jiyi K++ radarobstacle radarJIYI FC radar
