Name: ARRIS EV416 16L 4 Axis 16kg UAV Agricultural Spraying Drone Plant Protection UAV
Brand: ARRISHOBBY
SKU: CB0102
Price: 529 USD
Availability: InStock

SKU: CB0102

0.0 (0)

$529.00

4 axiL agricultural drone high quality at affordable price

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites

1/1

Description

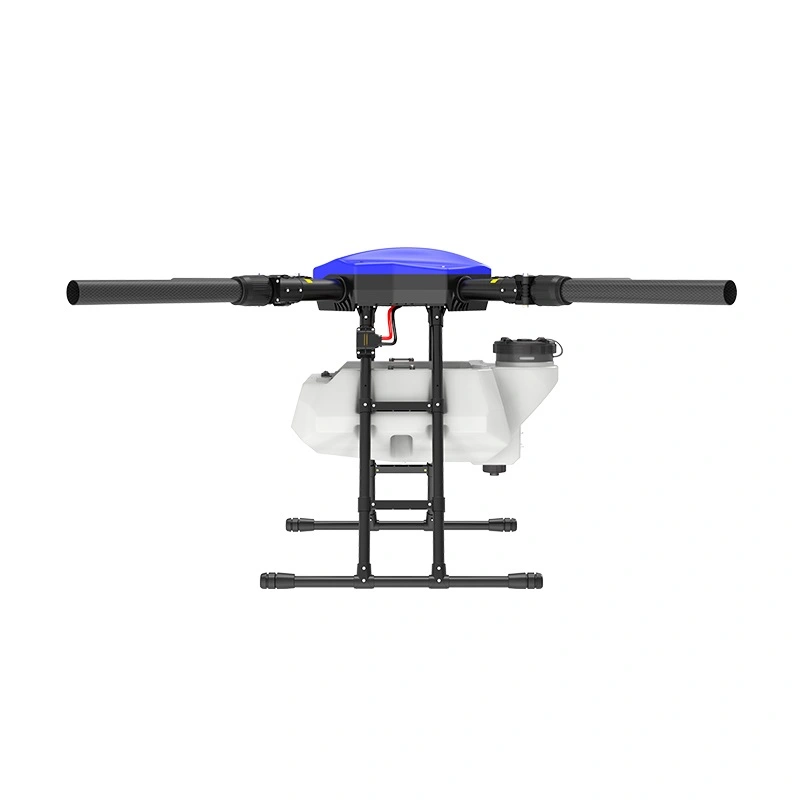

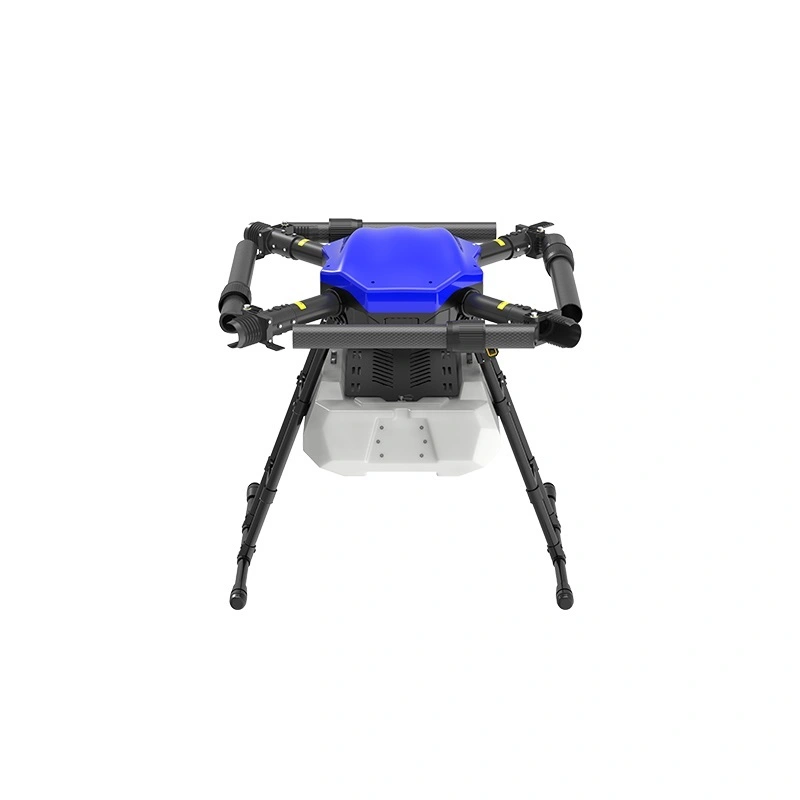

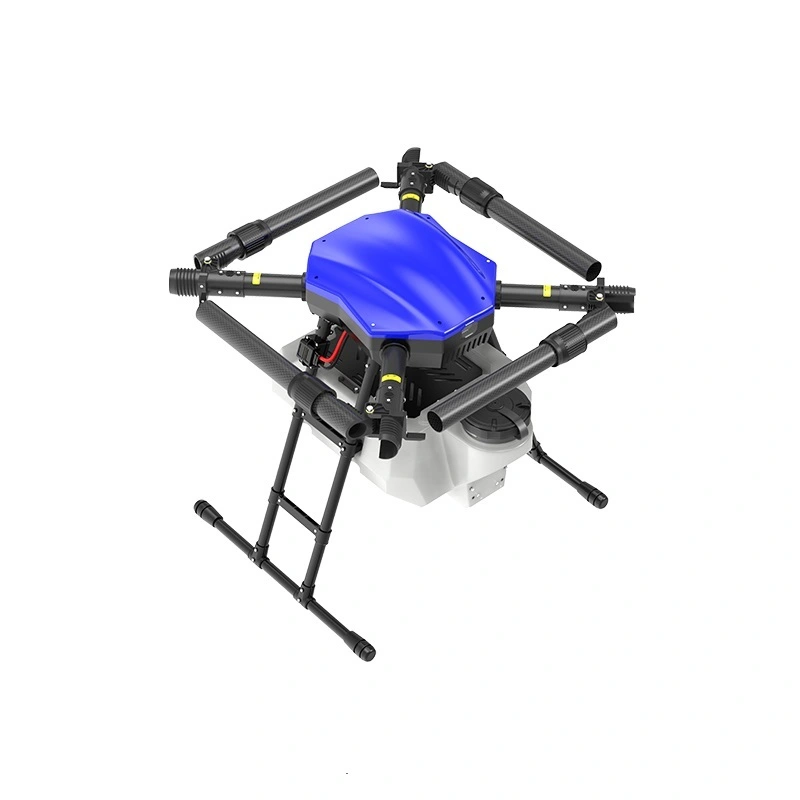

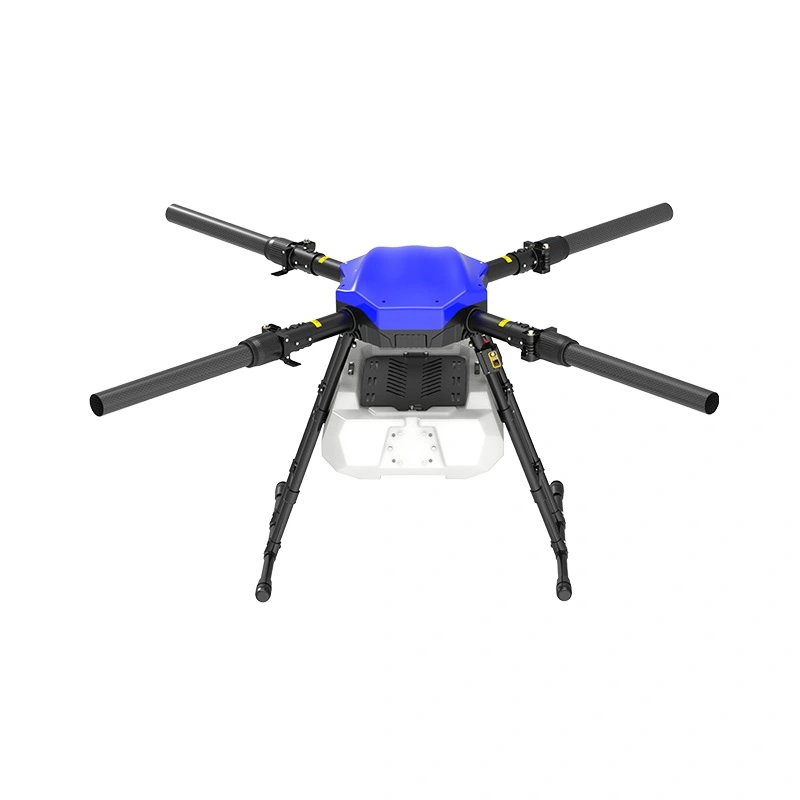

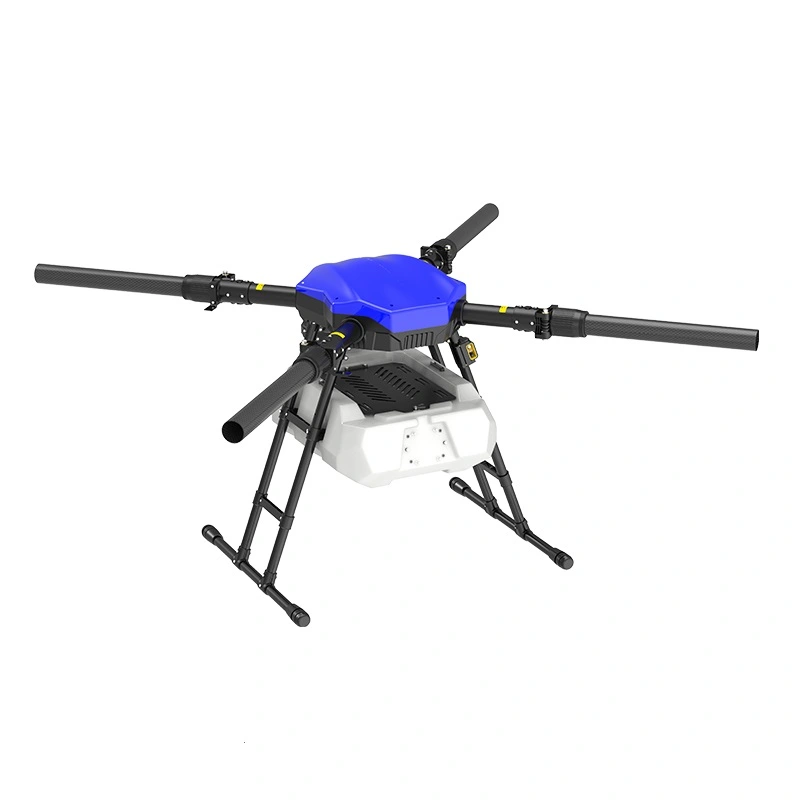

ARRIS EV416 16L 4 Axis 16kg UAV Agricultural Spraying Drone Plant Protection UAV

Features:
1.Strong structure:Integrated fiber plastic frame, internal multi link framework,
Strong and durable
PCB is installed inside the frame, and the installation and wiring is simple without leakage

2.Dustproof and waterproof:The upper and lower covers of the whole machine
Body are sealed to effectively take out the dust-proof and waterproof effect.
3.Injection folding parts:The new folding part adopts the integrated injection molding process, and the machine arm has a plastic wrapped structure, which is not easy to loosen and more stable.
4.New medicine box design:The new medicine box design is compatible with a variety of radar installations. Installation of single and double water pumps.
Reasonable layout
5.Multiple colors:Customize a variety of mainstream colors to meet customers' selection needs
6.Encircling folding:Classic surround folding design, simple and practical, reducing transportation space
7.Product packaging:Foam packing box, which can be used to place the rack and propeller blades of the power system

Specification:
Canopy Color:White/Gules/Yellow/Blue
Unfold size:1050x1050mmx600mm
Folding Size:610x610x600mm
Wheelbase:1400mm
Texture of material:Nylon fiber/aluminium alloy
Weight:6.5kg
Pipe diameter:37x40mm
Volume:16L

Recommend Electronic Parts:
FC system:K++ / V7-AG
Dynamic system:T10 / X9
Propeller:34 inches
Spraying system:8L Water pump /Pressure nozzle
Radar installation:Obstacle avoidance/Terrain radar
Lithium battery:14S 18000mAh
Overall weight:34kg

Frame Kit Included:
ARRIS EV416 16L 4 Axis 16kg Drone Frame Kit with tank x 1

With Spray System Includes:
ARRIS EV416 16L 4 Axis 16kg Drone Frame Kit with tank x 1
Brushless Spraying System x 1

Combo1 Includes:
ARRIS EV416 16L 4 Axis 16kg Drone Frame Kit with tank x 1
Brushless Spraying System x 1
ARRIS A40 Propulsion System x 4

Complete Combo 2 Package Includes:
ARRIS EV416 16L 4 Axis 16kg Drone Frame Kit with tank x 1
Brushless Spraying System x 1
ARRIS A40 Propulsion System x 4
Jiyi K++ V2 Flight Controller Combo with Terrain/Obstacle Radar Flow Meter
Skydroid H12 Radio with receiver x 1
TATTU 12S1P 44.4V 22000mah 25C Smart Battery x 1
Tattu TA3200 60A/3200W Dual-Channel Smart Charger x 1

Complete Combo 3 Package Includes:
ARRIS EV416 16L 4 Axis 16kg Drone Frame Kit with tank x 1
Brushless Spraying System x 1
ARRIS A40 Propulsion System x 4
VK V9-AG Flight Controller with GPS x 1
Skydroid H12 Radio with receiver x 1
TATTU 12S1P 44.4V 22000mah 25C Smart Battery x 1
Tattu TA3200 60A/3200W Dual-Channel Smart Charger x 1
