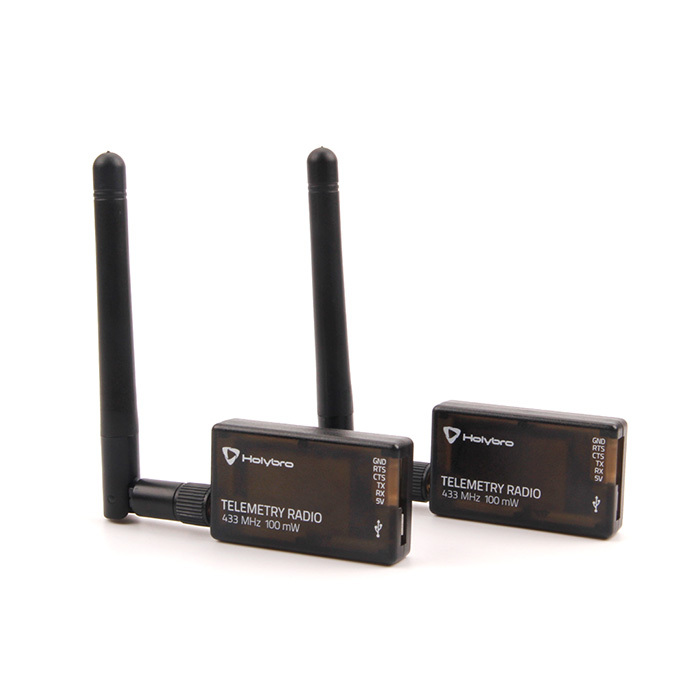

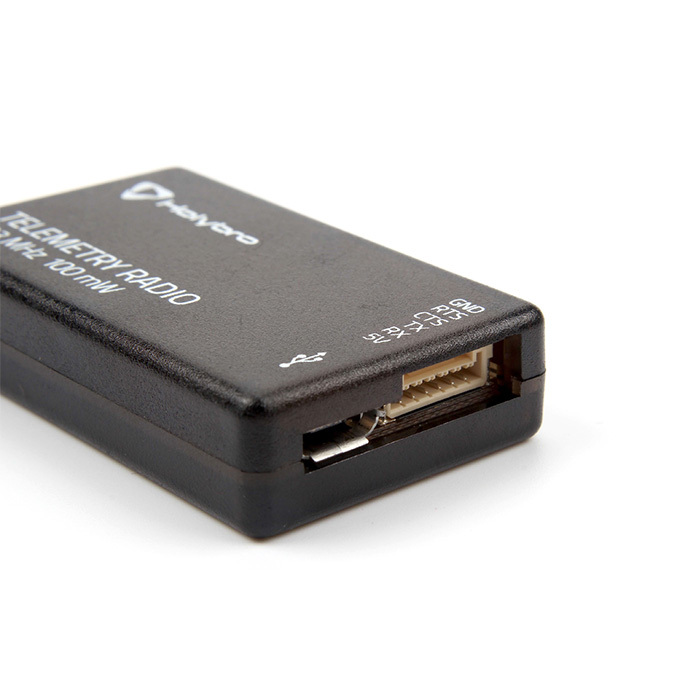

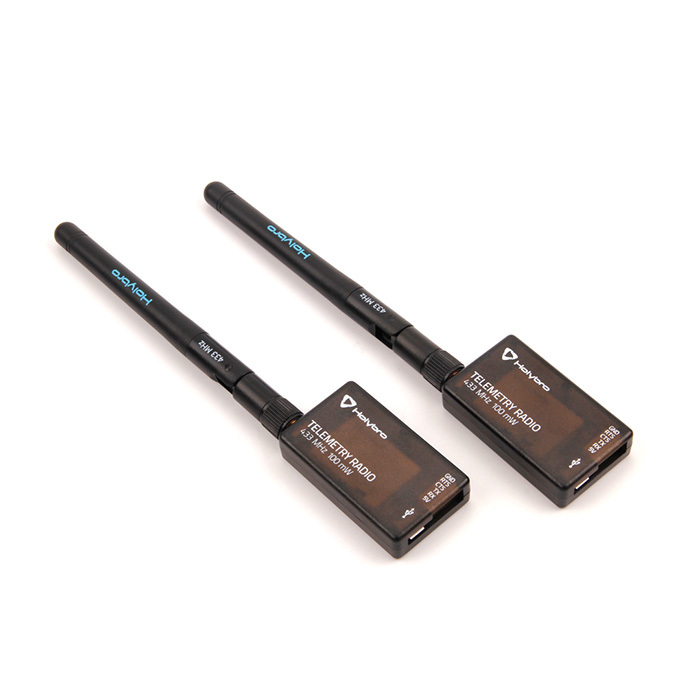

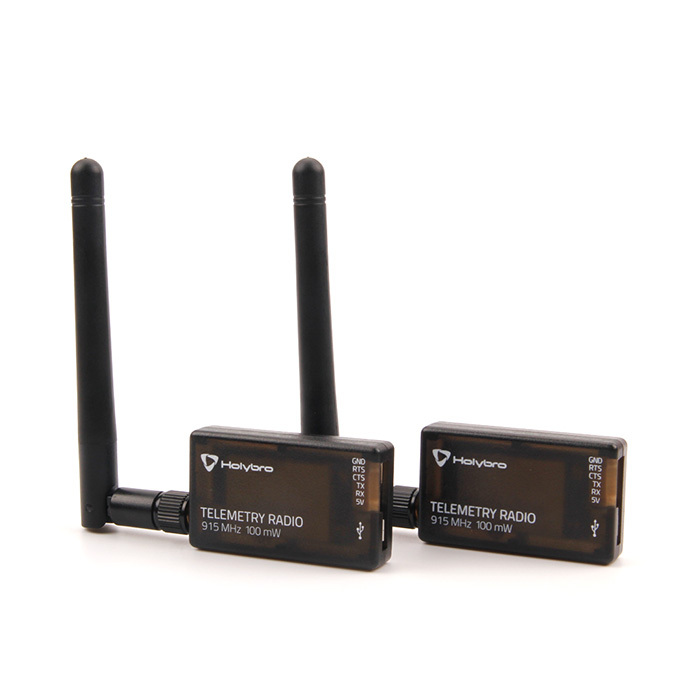

Holybro SiK 433Mhz 915Mhz Telemetry Radio V3 for Pixhawk Flight Controller

Name: Holybro SiK 433Mhz 915Mhz Telemetry Radio V3 for Pixhawk Flight Controller
Brand: ARRISHOBBY
SKU: NA0117
Price: 59.99 USD
Availability: InStock

SKU: NA0117

0.0 (0)

$59.99

Open-source SiK firmware, Plug-n-play for Pixhawk Standard Flight Controllers
915Mhz / 433Mhz optional

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description

The Holybro SiK Telemetry Radio is a small, light and inexpensive open source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground).

Holybro SiK Telemetry Radio is plug-n-play all Pixhawk Standard and other Flight Controller, providing the easiest ways to setup a telemetry connection between your Autopilot and a ground station. It uses open source firmware which has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, PX4 Autopilot.

Holybro SiK Telemetry Radio can be either 915Mhz or 433Mhz and you should purchase the model which is appropriate for your country/region.

Main Features
-Open-source SIK firmware
-Plug-n-play for Pixhawk Standard Flight Controllers
-Easiest way to connect your Autopilot and Ground Station
-Interchangeable air and ground radio
-Micro-USB port (Type-C Adapter Cable Included)
-6-position JST-GH connector

Specification:
100 mW maximum output power (adjustable) -117 dBm receive sensitivity
RP-SMA connector
2-way full-duplex communication through adaptive TDM UART interface
Transparent serial link
MAVLink protocol framing
Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
Error correction corrects up to 25% of bit errors Open-source SIK firmware
Configurable through Mission Planner & APM Planner
FT230X / FT231X is a USB to BASIC UART IC

Dimensions
28 x 53 x 10.7mm (without antenna)

Electrical Data
Supply voltage: 5V DC (from USB or JST-GH)
Transmit current: 100 mA at 20dBm
Receive current: 25 mA
Serial interface: 3.3 V UART
FCC IDENTIFIER: 2AP22-HT03-V3

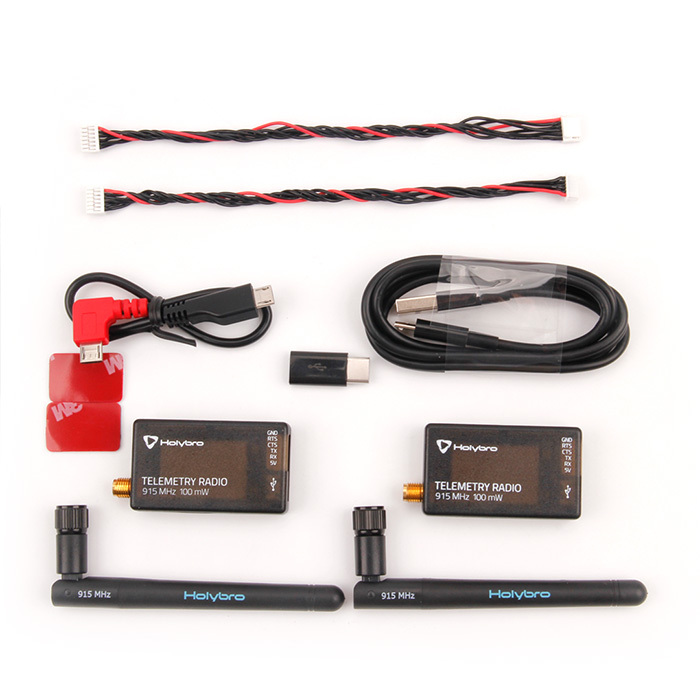

Package Includes:
Holybro Radio modules with antennas *2
Micro-USB to USB-A cable *1
Micro-USB to Micro-USB OTG adapter cable *1
Micro USB to Type C Adapter
JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)
