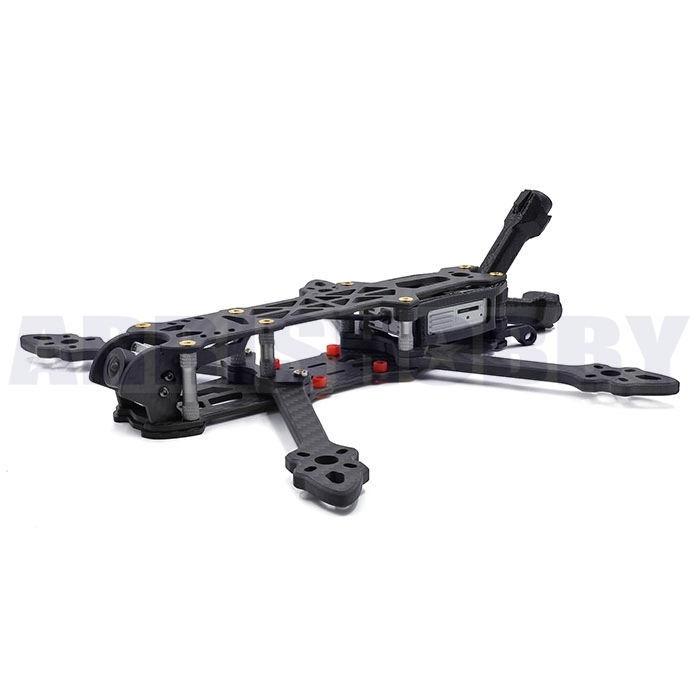

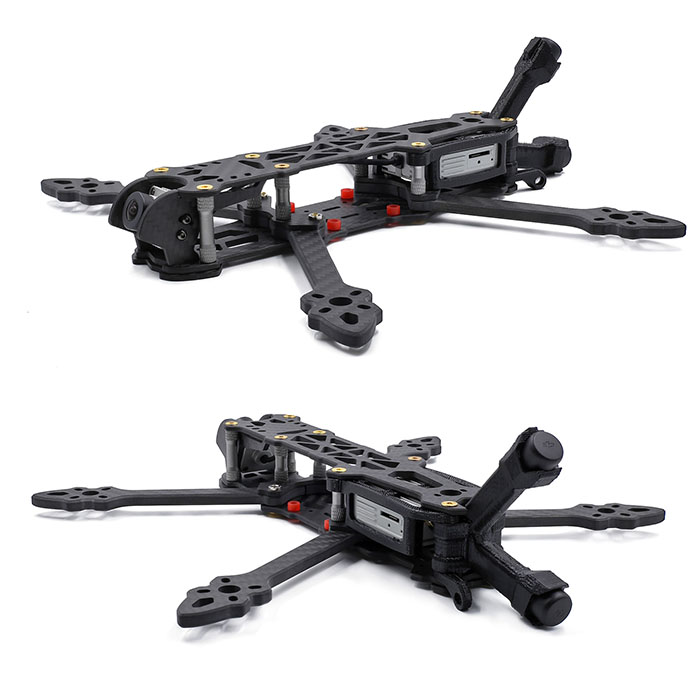

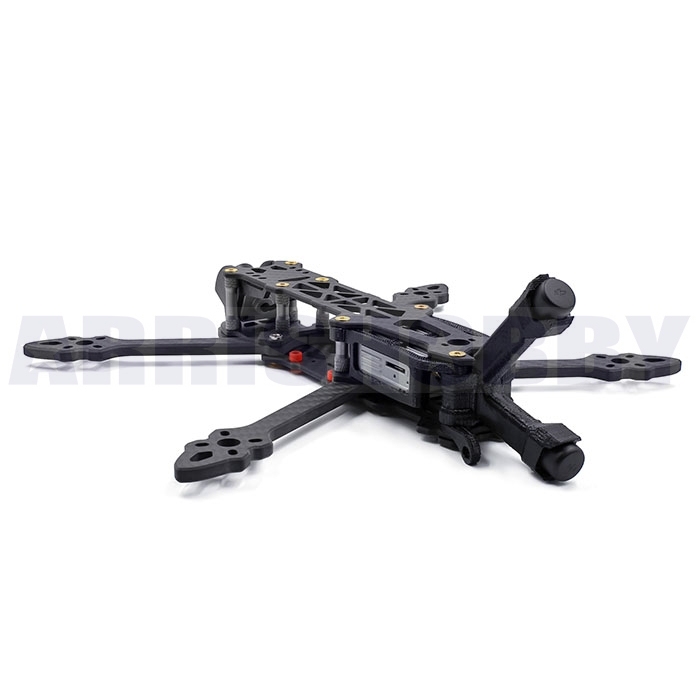

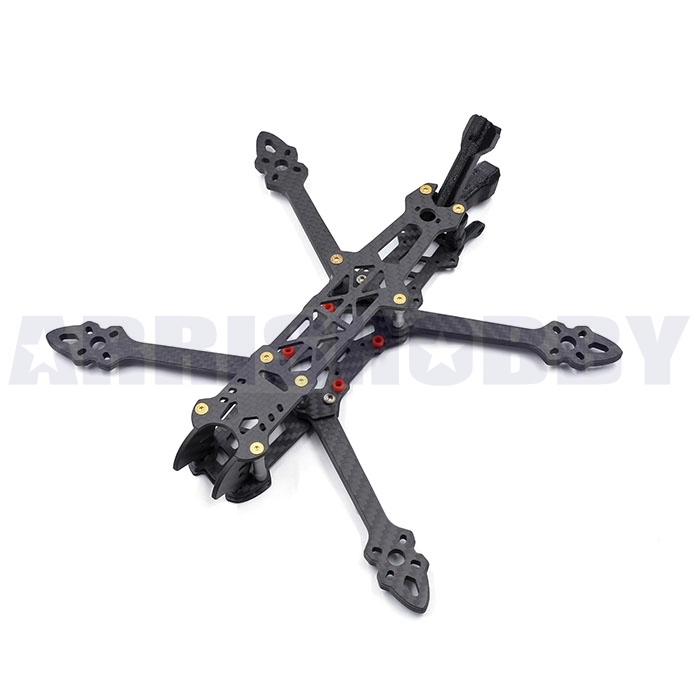

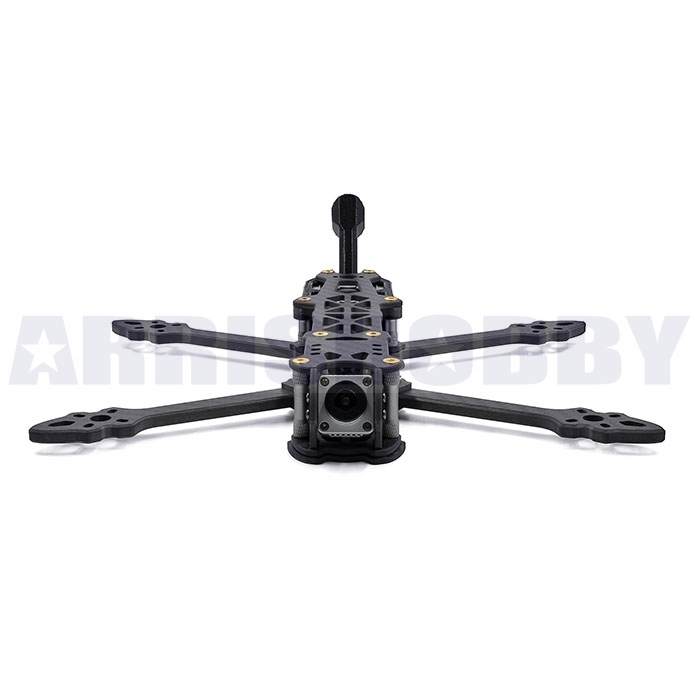

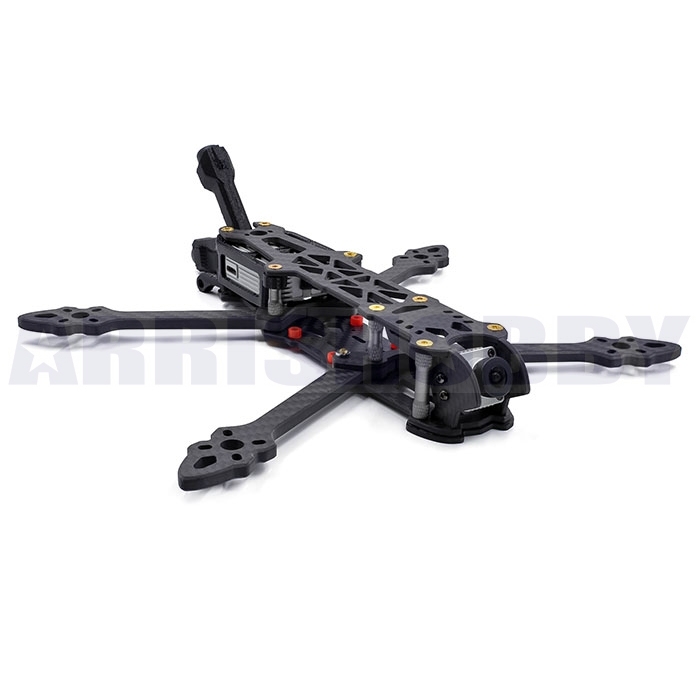

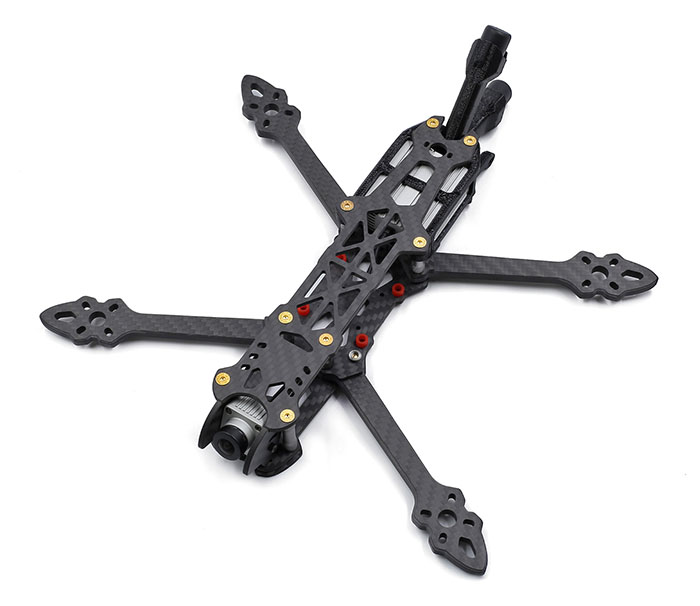

GEPRC MARK4 HD5 ultralight fpv racing drone frame kit is specially designed for freestyle, it is perfectly compatibla with the DJI FPV Air unit.
Main Features：
Perfectly match DJI FPV Air Unit
3D printing parts are fixed and protected
No propeller in the view
Full 3K Carbon Fiber Frame
Super lightweight Freestyle frame
Beautiful appearance design，durable in crashing
Quick maintenance Arms and replacement of equipment
25mm standoffs for better height and CG relation,Ample space for electronic installation
ALU6061 Srandoff New , Strengthen the hardness

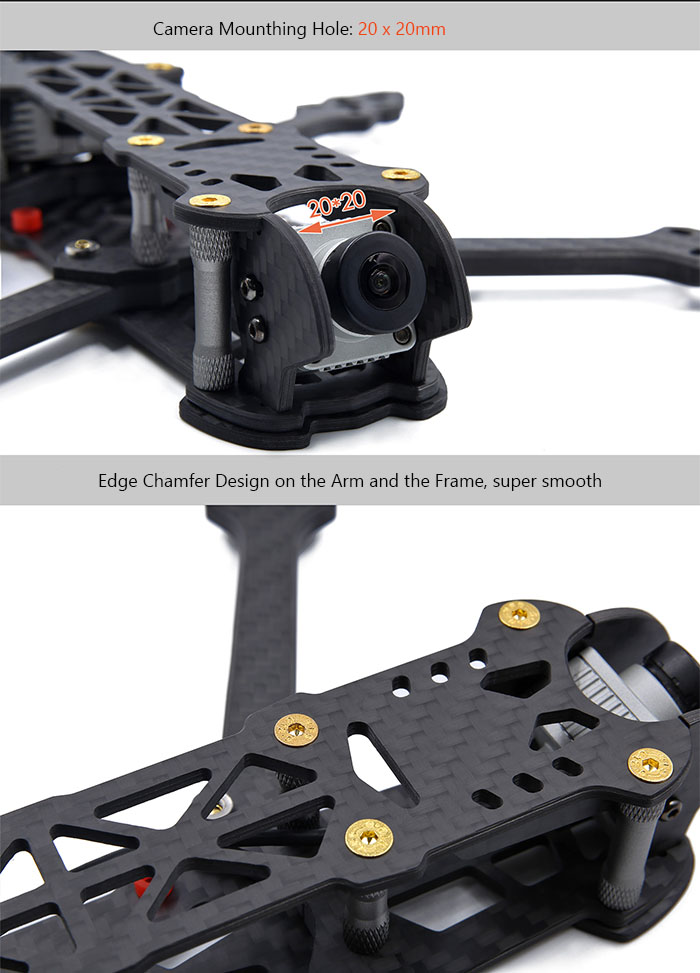

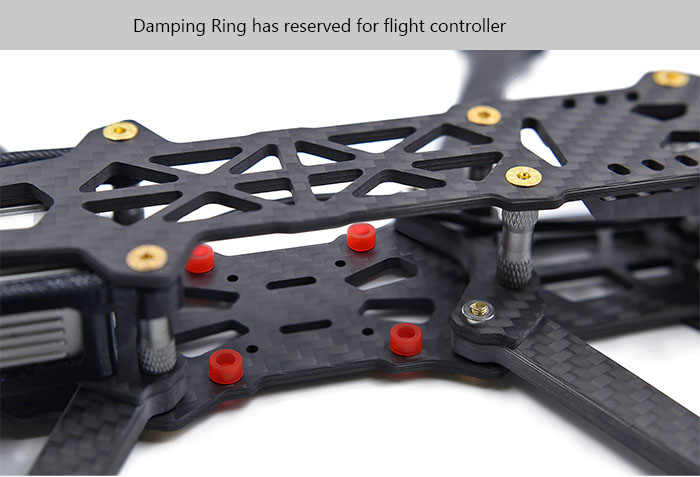

There are 30.5*30.5mm and 20*20mm flight control holes , Stack can fit in the center or the rear.
High quality 3K twill carbon fiber plate, high precision CNC processing
YFS screw, 12.9 grade strength, non-slip teeth, anti-rust,Durable steel hardware
Specifications：
Item Brand: GEPRC
Item name：MARK4 HD5
Frame type：H-TYPE
Propeller : 5inch
Motor to motor：224mm
Size：138*176mm
Mounting Holes: 30.5*30.5mm/20*20mm
Weight：121g
Arms plate : 5mm
Side plate : 2.5mm
Top plate : 2.5mm
Bottom plate : 2.5mm
Protect plate : 2mm
Recommended：
Flight Controller：RF/Kiss/F3/F4/F7
Motor： 22xx/23xx/24xx/25xx
ESC：30A-50A
Propeller：5inch
Lipo: 4S 1500mAh to 6S 1300mAh
FPV :DJI FPV Air Unit

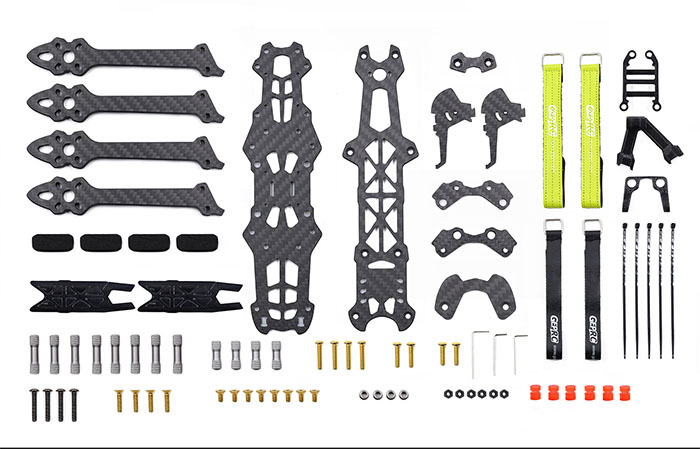

Package Included：
4 x 5mm 5inch Arms plate
2 x 2.5mm side plate
1 x 2.5mm top plate
1 x 2.5mm Bottom plate
2 x 2mm Bumpers plate
2 x 2mm Reinforce plate
1 x Lipo silicone pad
1x DJI FPV Air Unit fixed
1x Antenna Mount
1x RX Antenna Mount
Note: If you need the fully set up version, please contact [email protected] for more informations.
