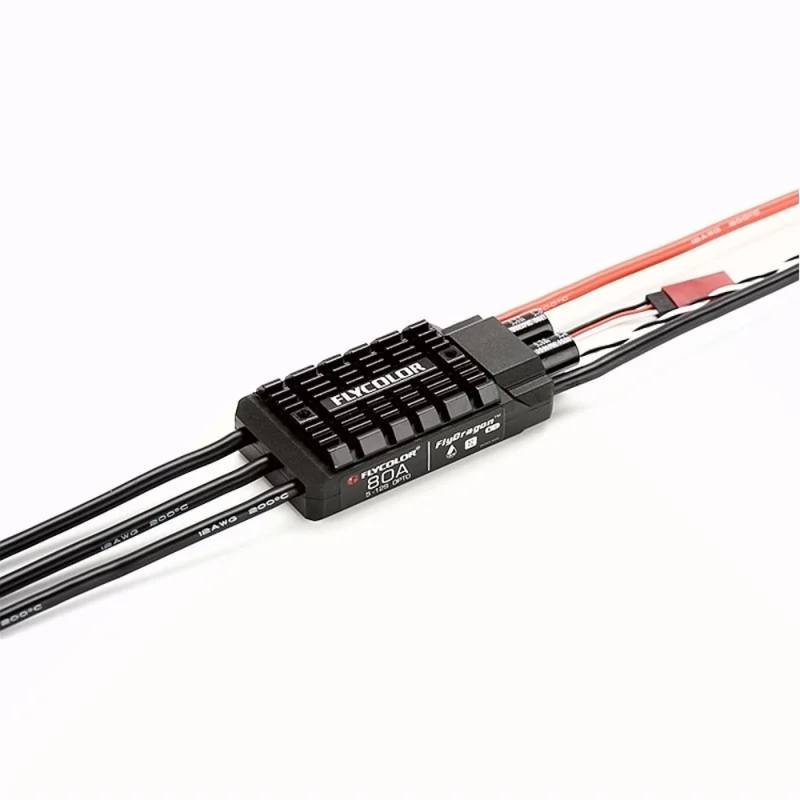

Flycolor Flydragon V3 80A esc uses STM32F051 MCU,ARM 32-bit Cortex Core with 48 MHz frequency.It provides you quick and stable response. The ESC is splashproof and corrosion resistance, high efficiency with less heat generation. It is one of the best choice for your agriculture drones.
Main Features:
1. Flydragon V3 ESC use STM32F051 MCU,ARM 32-bit Cortex Core with 48 MHz frequency.
2. Optimized firmware is specialized for disc motor, excellent compatibility.
3. The firmware is specialized for multi-rotor , uses ASCF technology (Active Switch Continued Flow),higher efficiency, significantly reduce the heat when ESC’s working.
4. Splash-proof, corrosion resistant, especially suitable for agricultural plant protection multi-rotor;
5. Strong self-adaptable firmware, 4 timing options, very simple to use.
6. Supports frequency of throttle signal to 500Hz max , compatible with various kinds of flight control.( ≥500Hz throttle signal is nonstandard signal )
7. Maximum supports 12S LiPo battery, supports for single LiPo battery voltage up to 4.35V.
Specifications:
Model: FlyDragon V3-80A
Battery: 5-12s
Con. Current: 80A
Burst Current(10S): 120A
BEC: No
Weight: 103g
Size: 81.5×36.5×21.1mm
Package Included:
Flycolor Flydragon V3 80A 5-12s 32bit HV ESC x 1
User Manual x 1
