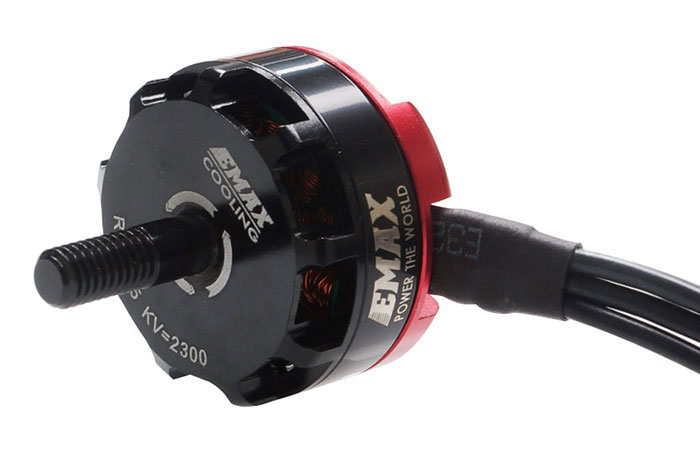

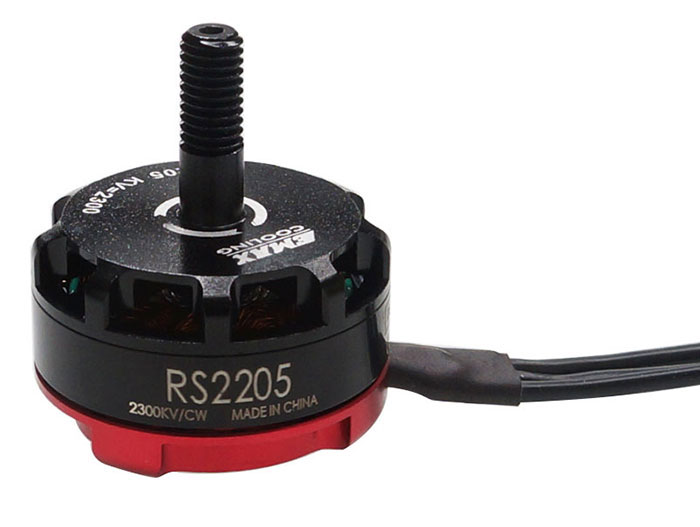

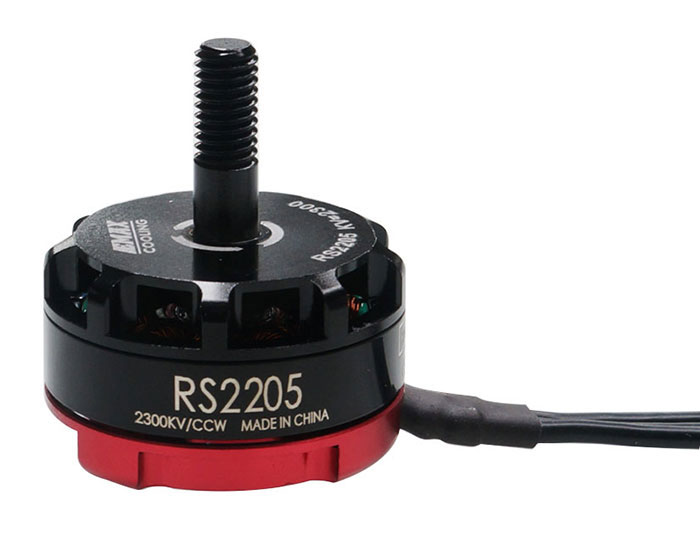

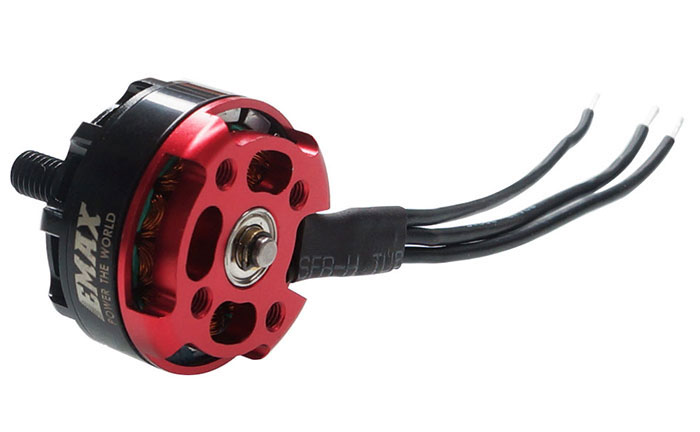

Emax RS2205 Race Spec Motors
Introducing the Emax Race Spec family of high performance brushless motors for multirotor FPV racing. Redesigned and engineered to perform better than most in it's class, every motor is precision crafted within tight tolerances. Paired with performance driven props from any leading manufacturer will result in unreal thrust.
Specifications:
Model: RS2205
KV: 2300kv
Weight: Approx. 30g with wires
Wire AWG: 20AWG
Stator Diameter: 22mm
Stator Height: 5mm
Shaft Diameter: 3mm
Configuration: 12N14P
Motor Diameter: 27.9mm
Motor Height: 31.7mm
Prop Adapter Shaft Thread: M5
Input voltage: 3S-4S (12.6 - 16.8v)

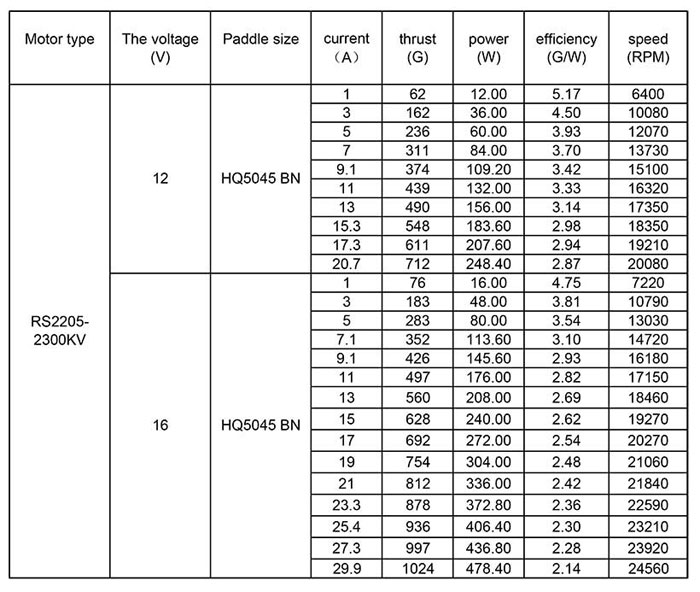

KV2300 With HQ5045 BN Max.thrust:1024g
KV2600 With HQ4045 BN Max.thrust:763g

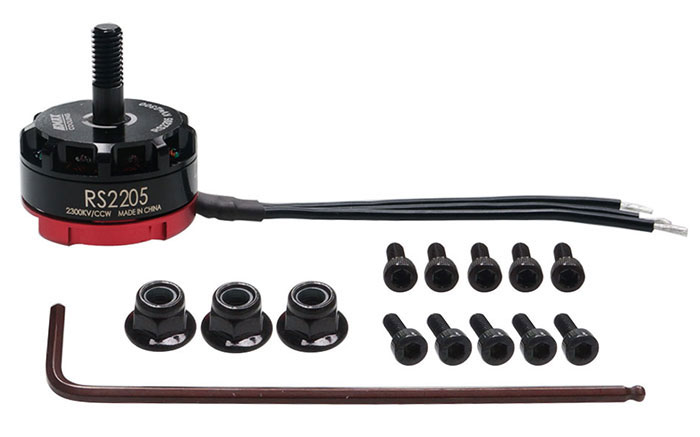

Package Includes:

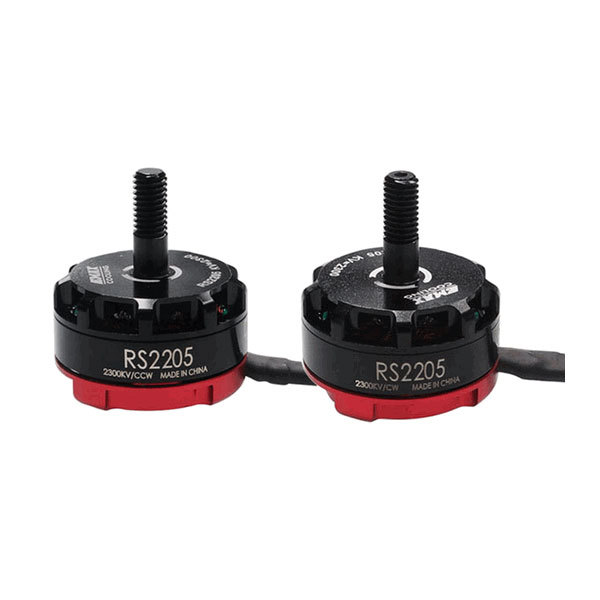

EMAX RS2205 KV230 RaceSpec Cooling Series Brushless Motor (CW/CCW)
