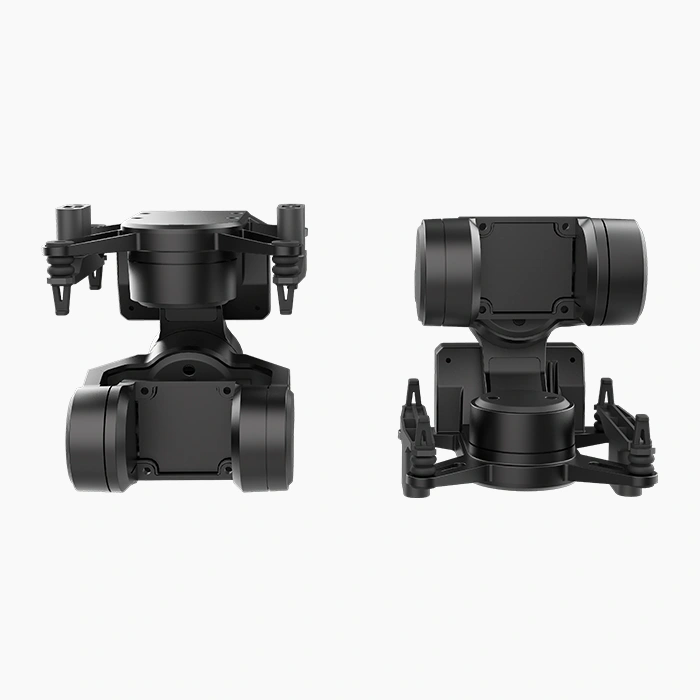

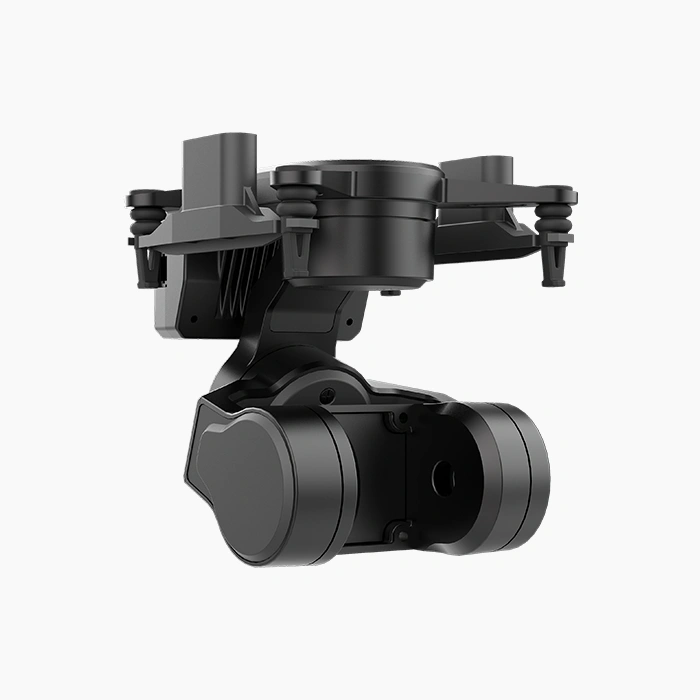

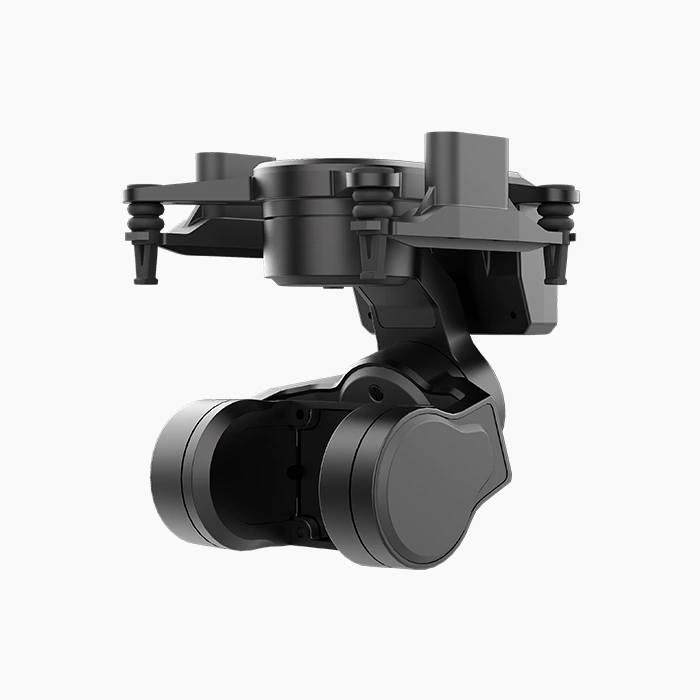

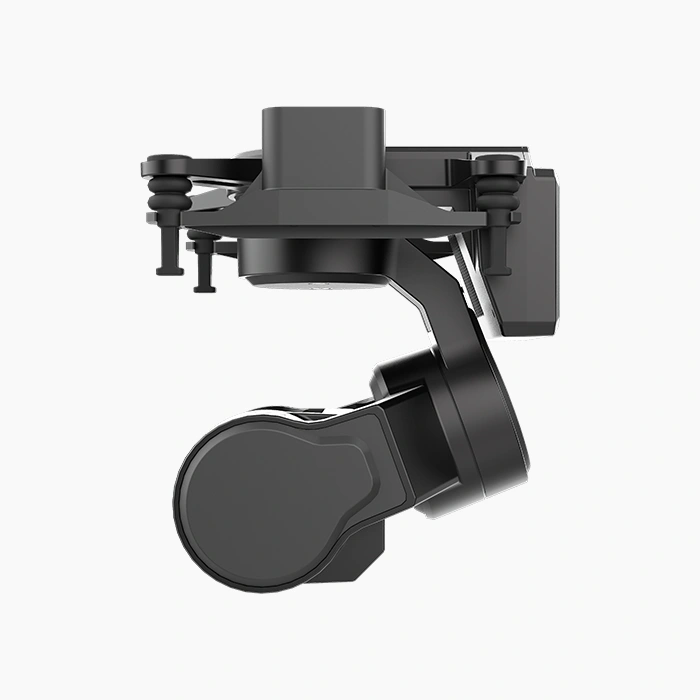

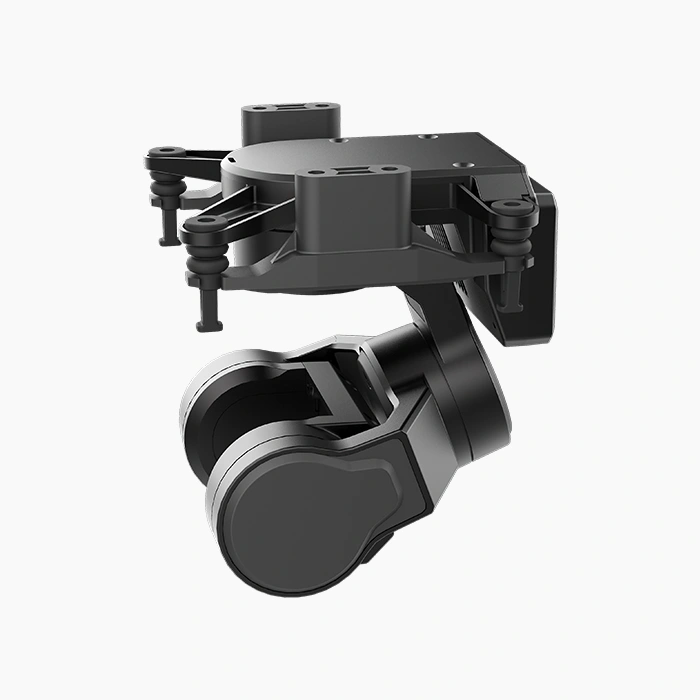

XF C-20T 3 Axis FPV Gimbal for Digital and Analog FPV Cameras for Drones Cars VTOL

The C-20T 3 axis fpv gimbal is compatible with a variety of digital fpv systems such as DJI O3, DJI O4, O4 PRO, Walksnail Avatar, Walksnail moonlight, and 19mm width anolog fpv cameras. With a 3 axis nonorthogonal mechanical stablization structure and high torque motors, the C-20T is able to provides an extreme staliztion effect against the vibration and high-speed air impact.
With the headtracker, the C-20T gimbal provides an immersive high-quality first-person control experience.

Main Features:
●Compatible with a variety of digital FPV systems such as DJI 03, Walksnail Avatar, Walksnail Moonlight, and 19mm wide analog cameras or other devices.
●The main body is made of aluminum magnesium alloy, which is extremely compressed in size and weight.
●With a 3-axis nonorthogonal mechanical stabilization structure and high-torque motors, the C-20T is able to provides an extreme stabilization effect against the vibration and high-speed air impact.
●Multiple stabilization modes is suitable for a variety of platforms such as RC cars, FPV fixed-wing planes and realistic RC planes.
●With the Headtracker, the C-20T provides an immersive high-quality first-person control experience.
●Supports UART, PWM and S.BUS control. Supports both private protocol and MAVLink protocol.
●Can be mounted whether downward or upward.
●7.4~26.4 VDC wide voltage input.


Specifications:
Product Nam: C-20T
Dimensions: 46.8 x 46.4 x 53.4mm
Weight: 46g
Operating Voltage: 7.4~26.4VDC
Power : 1.5W (AVG) / 14W (Stall)
Mounting: Downward / Upward
Control Port UART:  (private protocol / MAVLink) / PWM / S.BUS (subsequently support)
Gimbal Type: 3-axis Nonorthogonal Mechanical Stabilization
Angular Accuracy:  ±0.005°
Controllable Range Pitch: ±120°, Roll: ±60°, Yaw: ±160°
Max Controllable Speed:  ±1500°/s
Camera Suitability
Maximum Weight: 20g
Maximum Width: 19mm
