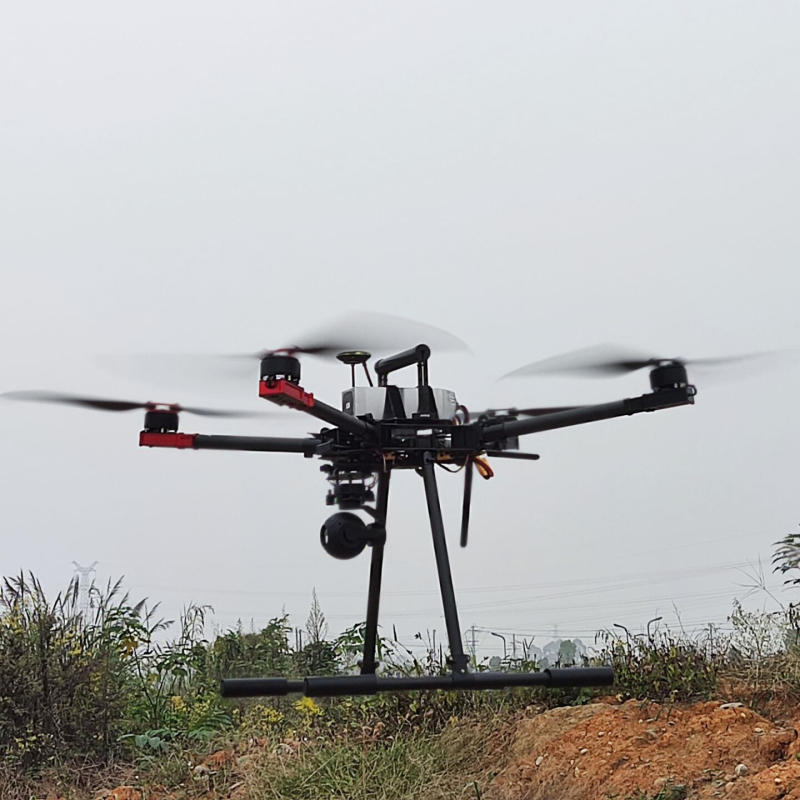

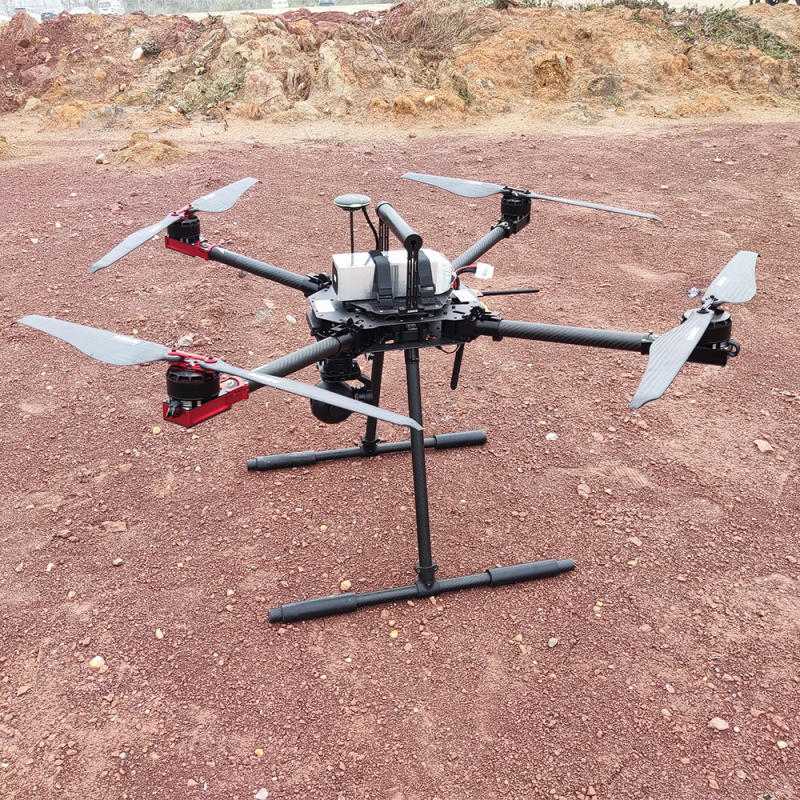

ARRIS M900 4 Axis Long Range Industrial Drone with SIYI ZR10 10X Zoom Camera

0.0 (0)
$2,299.00 $0.00
60 minutes long time flight without payload
long range of remote controller and video transmission
90% assembled, almost ready to fly
great for security, inspection, aerial photography and etc
Received successfully
Coupon Code
    Please select the information you want X
  • Ships From:
  • Carry Case:
    Please select the information you wantX
  • ARRIS M900 4 Axis Long Range Industrial Drone with SIYI ZR10 10X Zoom Camera
  • ARRIS M900 4 Axis Long Range Industrial Drone with SIYI ZR10 10X Zoom Camera
  • ARRIS M900 4 Axis Long Range Industrial Drone with SIYI ZR10 10X Zoom Camera
  • ARRIS M900 4 Axis Long Range Industrial Drone with SIYI ZR10 10X Zoom Camera
Frequently Bought Together
Frequently Bought Together
  • Description
Note:Due to shortage of CUAV Pixhack V5 Plus flight controller's chip,the M900 drone price will increase $100 from Feb. 7th.Please order it asap if you need.

ARRIS M900 is quadcopter specially designed for long flight requirements in industrial applications. It is great for is great for power inspection, fire seach and rescue, traffic patrols, airdrops of supplier and lifesaving equipement, aerial photography and etc. The drone is 90% assembled and adjusted well, you just need to install the arms,battery plate and landing skid, prepare the battery, you can fly.

One main feature of the ARRIS M900 is the long flight time. With the 6S 24000mah lipo battery, the take off weight of the drone is 6.7kg, the non-load flight time is about 60 minutes in hovering.

Item Brand: ARRIS
Item Model: ARRIS M900
Dignotal wheelbase: 900mm
Folding size: 500x450x600mm
Expanded Size: 700x700x600mm
M900 weight: 3.3kg
Max take off weight: 10kg
Max load: 3.3kg
Power Supply voltage: 6S
Compatible battery: 6S 22.2V 12000mah to 25000mah (not included)
Flight Controller: CUAV Pixhack V5 Plus Flight Controller with GPS
Remote Controlelr: Optional
Motor: Eaglepower 5215 220KV Brushless Motor
ESC: Flycolor 40A OPTO ESC
Propeller:ARRIS 22" 2272 Carbon fiber propeller
Flight Time: About 60 minutes (with 6.7kg takeoff weight) hovering

Note: The obove status as tested by 6S 24000mah battery, the weight of the battery is about 3.4kg. For different battery and under different circustances, the data may not the same.

Main Features:
1. Ultra-long range digital image transmission makes the flight visual and safer.
2. Equipped with H12 1080P Digital Video Data Transmission Transmitter, which has
clear image, low delay, long range, strong anti-interference and other features. The 5.5" screen can be used as the ground station, you can see the real-time image from the camera, and plan your route on the APP.
3. The high-definition camera is equipped with night lights, which can also work in low light conditions
4. A variety of operating equipment can be mounted with LED spotlights, casters, pan-tilts, and infrared devices for various industrial applications.
5. Small size, easy to carry, only one operator can be carried and operated, which greatly improves work efficiency.
6. Professional dust-proof and waterproof remote control, water discharge level IP64, to meet various working conditions.
7. The new generation of power systems,  during our long-term repeated testing, they have a super powerful endurance performance.
8.M900 drone comes with 2 axis gimbal camera that  the pitch and roll is adjustable through radio..
Different Applications

Convenient and quick release folding parts, CNC machined metal handles. Easy to carry.

The Propellers Bracket can keep propellers from damage in shipping and carrying.

The 25mm red Motor Mount is metal material that is easy to heat dissipation.

Wifi wireless parameter adjustment module

ARRIS M900 extended the landing skid, and there reserved many holes on the bottom plate, allows various equipments to be attached.
The drop system is optional. If you want to use the drone to deliver parcels or items, you can choose it.
CUAV Pixhack V5+ AutoPilot® is an advanced autopilot designed and made in CUAV. The board of the pixhack v5+ is based on the FMUv5 open hardware design, the external interface uses the Dronecode standard pinouts, and the modular design allows the user to design its backplane. It is fully compatible with PX4 and ArduPilot firmware. Mainly used for academic and business development.

Main Features:
Detachable Core Design
The Pixhack V5+ Autopilot still adopts a modular design, which is convenient for user integration.The core part of the flight control is integrated on the V5 core. The lower plate is detachable and serves only as an external interface carrier, giving consumers a customized space. Users can design their own lower plate according to their own needs.

New Open Source Hardware Design
Pixhack V5 AutoPilot is a new high-performance flight control system based on FMU V5 open source hardware. FMU v5 open source hardware features more advanced processors than FMU V3, larger flash and RAM, and more stable and reliable sensors.


Built-in Patented Damping System
The sensor and the main board of the Pixhack V5+ flight controller are seperated and designed with a built-in high-performance shock absorption system to adapt to various severe enviroments, and the applicability is stronger.


Multi-sensor Redundancy Combination
CUAV Pixhavk V5+ autopilot comes with built-in 5 sets of sensors, the flight controller monitors the multi-channel sensor data in real time, and performs redundant switching immediately in the event of a fault, improving flight safety and stability.


Faster Processor
In terms of hardware configuration, Pixhack V5+ autopilot flight controller abandoned the original STM32F427 processor of the px4 family and selected a more advanced STM32F765 processor with a clock speed of 216MHZ and 2MB FLASH/512K RAM, higher frequency and larger RAM.The clock speed is higher, the RAM is larger,the speed will be greatly improved.

flight controller for dronespix flight controller
Some customers asked about the carrying case for the ARRIS M900. And finally the customize carrying case for the M900 is available now. It is optional. With it, you can put the battery and other accessories in it during you take out. Very convenient to use.

Pacakge Included:
1 * ARRIS M900 4-axis quadcopter frame
4 * Eaglepower 5215 EA50 220 KV brushless motor
4 * Hobbywing Flyfun 40A Esc
2 * ARRIS 22in carbon fiber propeller
1 * CUAV Pixhack V5 Plus Flight Controller with GPS
1 * SIYI ZR10 2K 4MP QHD 30X Hybrid Zoom Gimbal Camera
1 * SIYI MK15 Long Range Remote Controller (Enterprise Standard Version) (Optional)

Note: Battery and battery charger are not included .
This is DIY version, we will send test videos to customers before shipping out. The drone will take into several parts for packing. Radio will ship out in a seperate parcel due to the battery in it.
