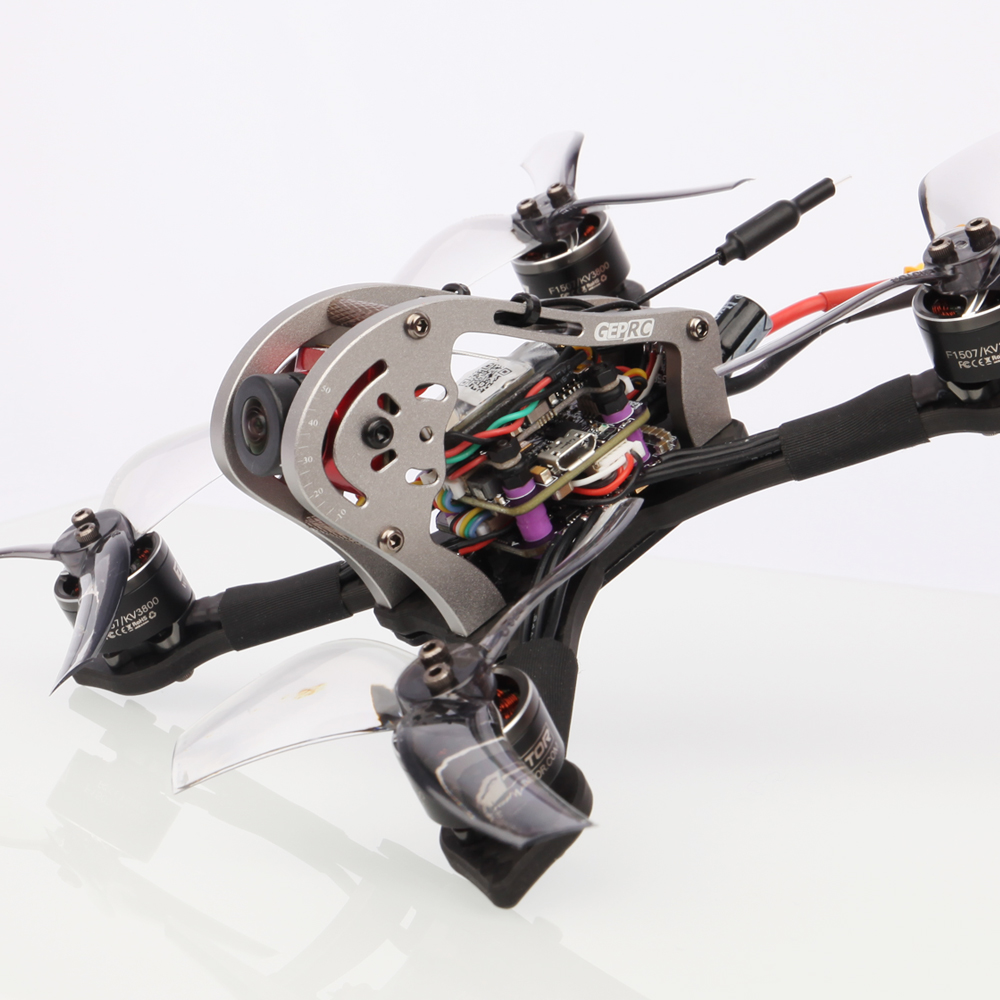

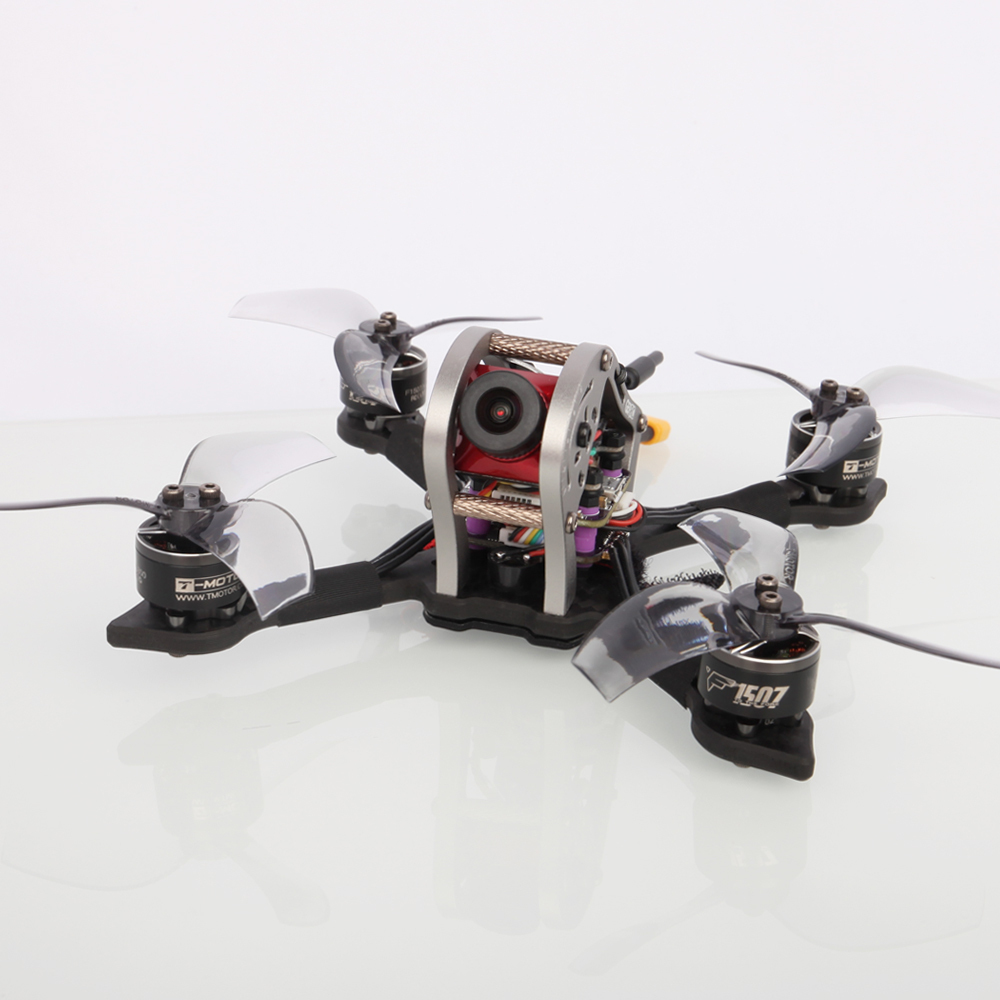

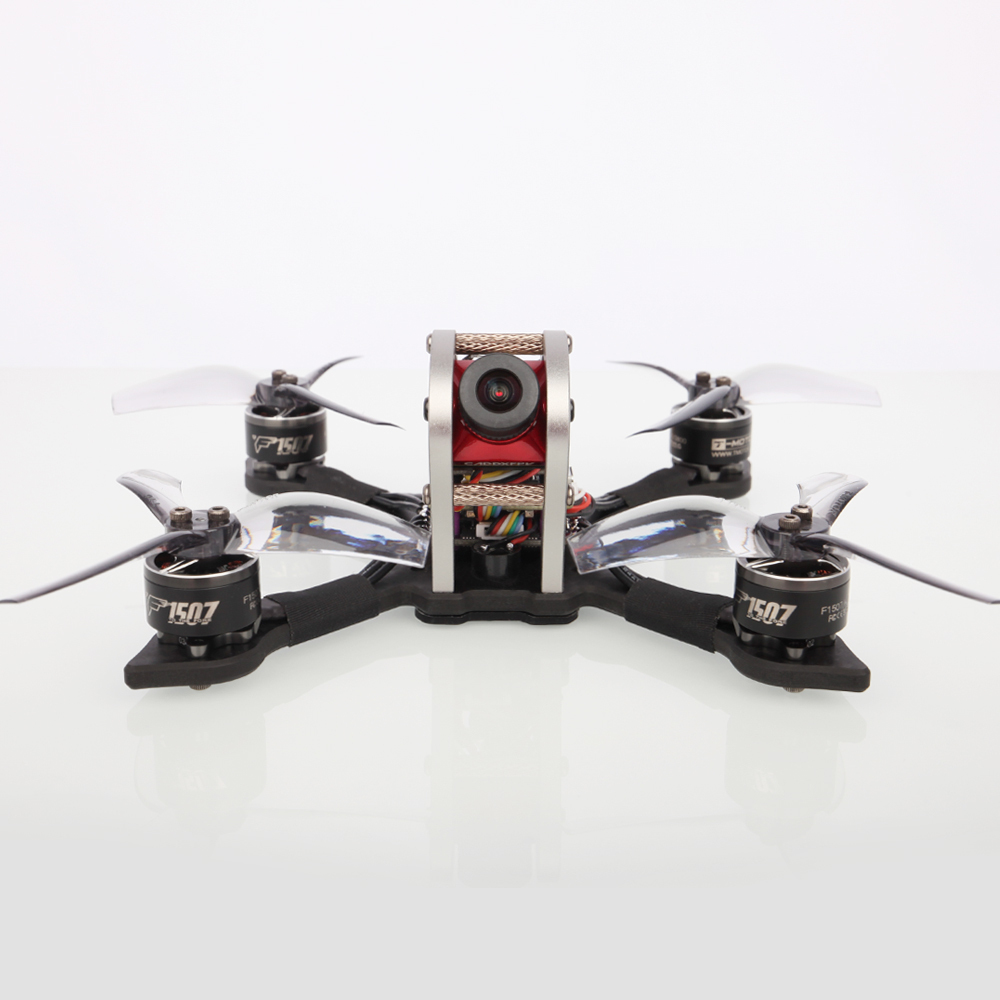

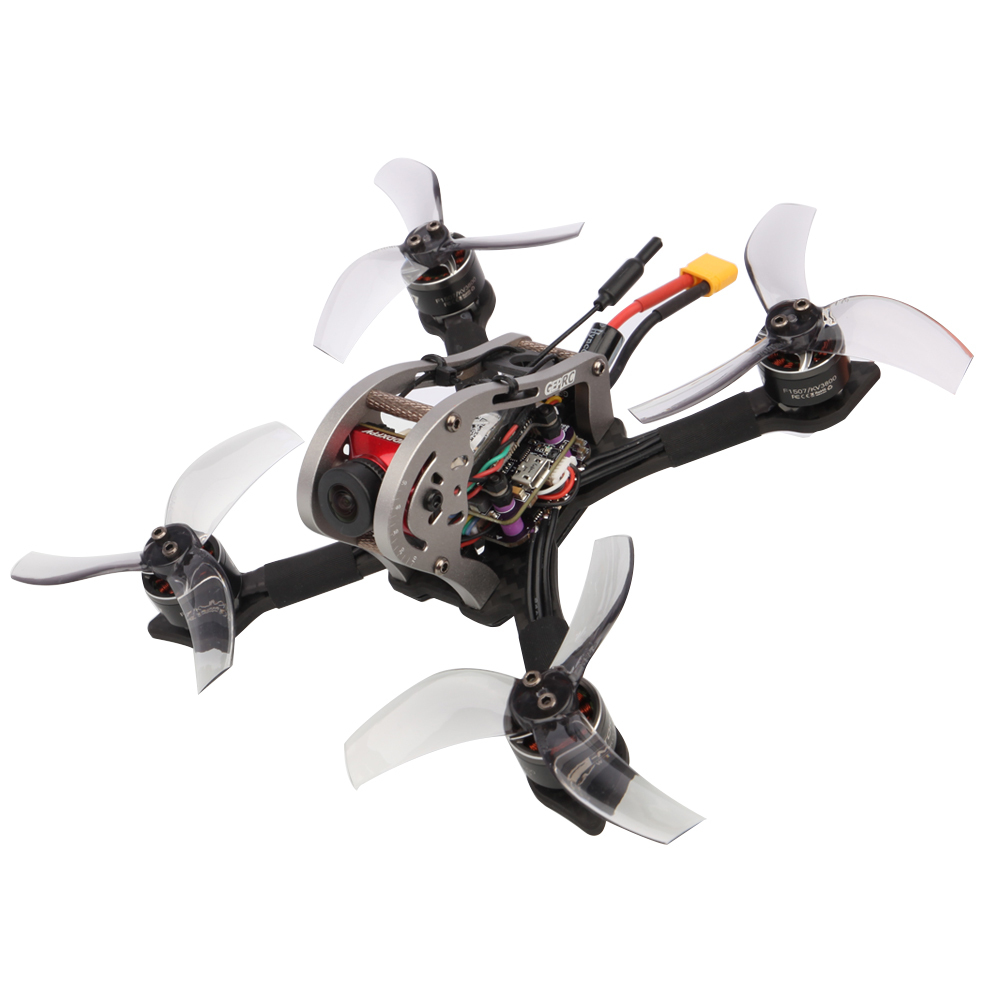

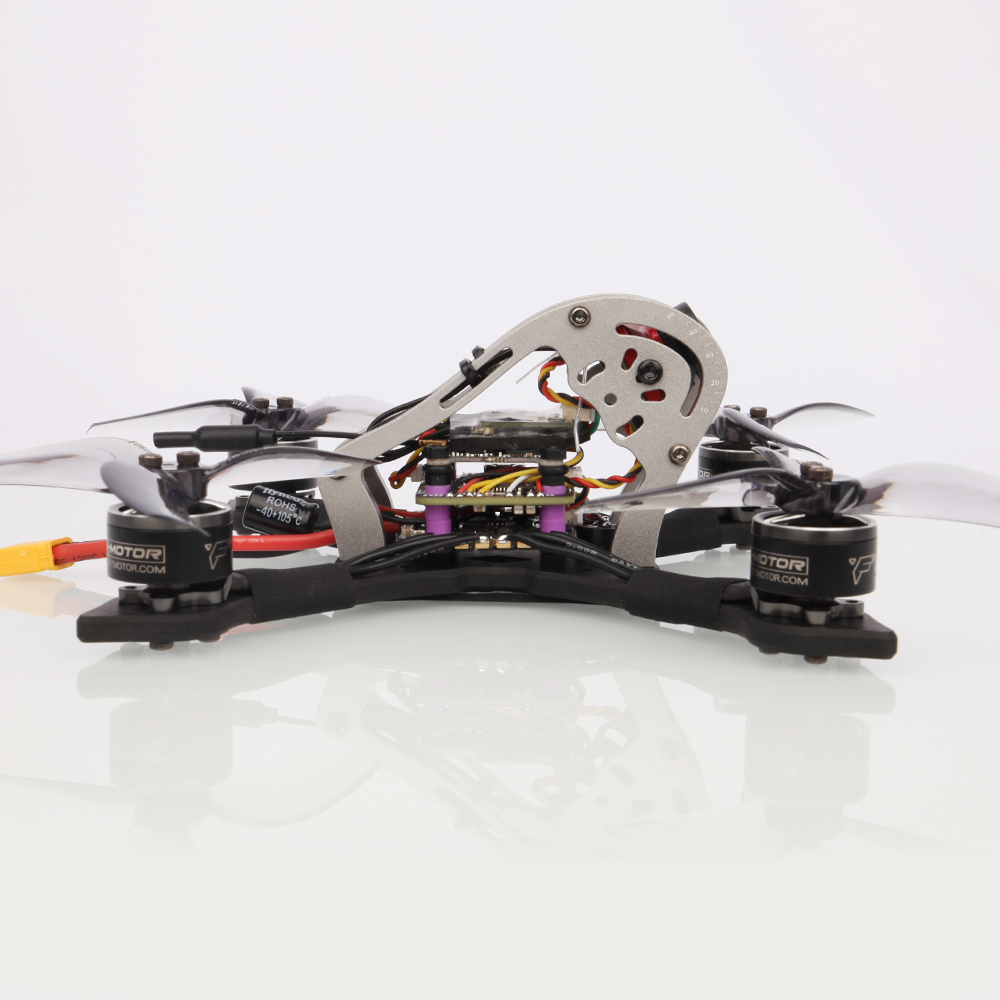

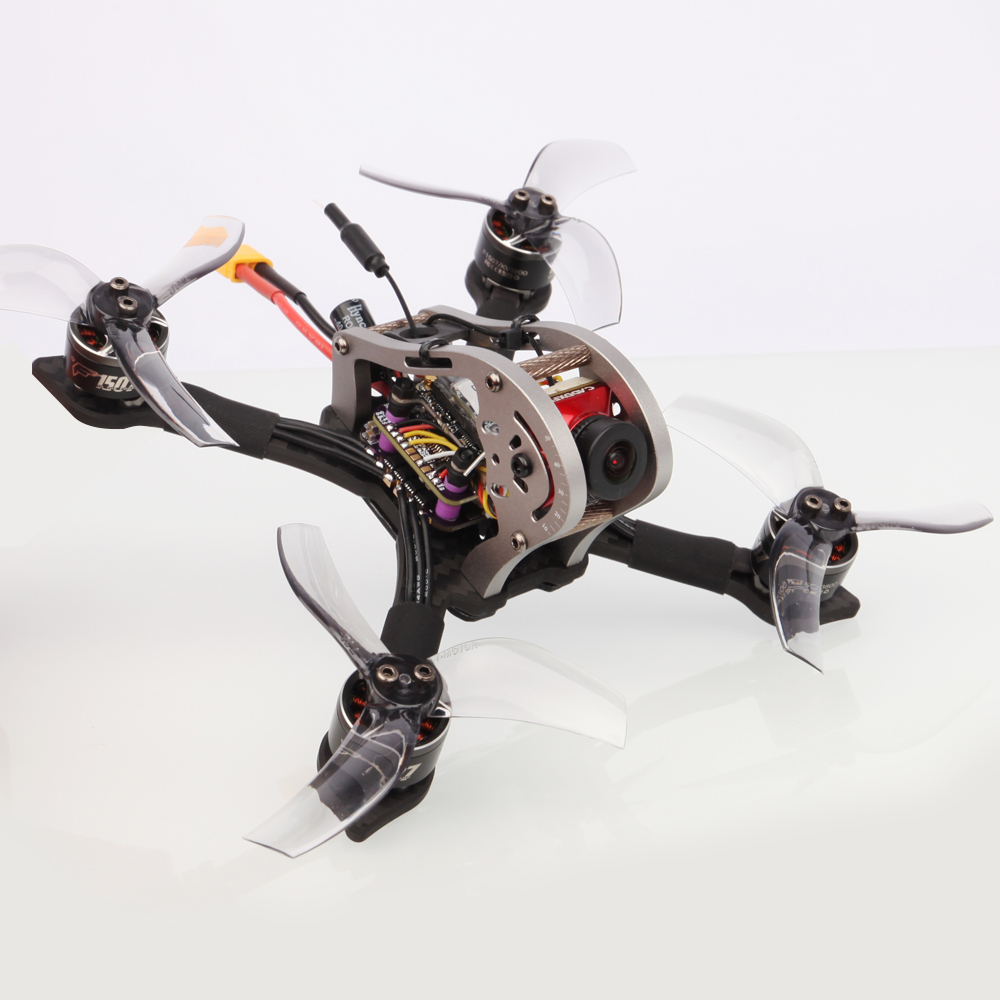

GEP MX3 Sparrow is a mini frame of true X structure,it is small but flexible, just like sparrow. The ARRIS GEP MX3 BNF comes with GEP MX3 sparrow frame,T-MOTOR F1507 3800 KV brushless motor, flycolor f4 flight controller with 4in1 20A Dshot esc stack, mini video tx and caddx rarel2 camera.
Spefications:
Name: ARRIS GEP MX3 Sparrow BNF
Wheelbase: 139mm
Prop size: 3"
Size: 120x120mm
Flight Controller: Omnibus F4
ESC: 20A Dshot ESC
VTX: Mini 48CH 0mW/25mW/100mW/200mW switchable VTX
BNF weight: 127.5g
Suggested battery: 3S 550mah-850mah, 4S 550mah to 850mah
| GEP MX3 Frame | Wheelbase: 139mm Props Size: 3inch Size: 120*120mm Main board:3mm Other board:1.5mm Weight: 39g |

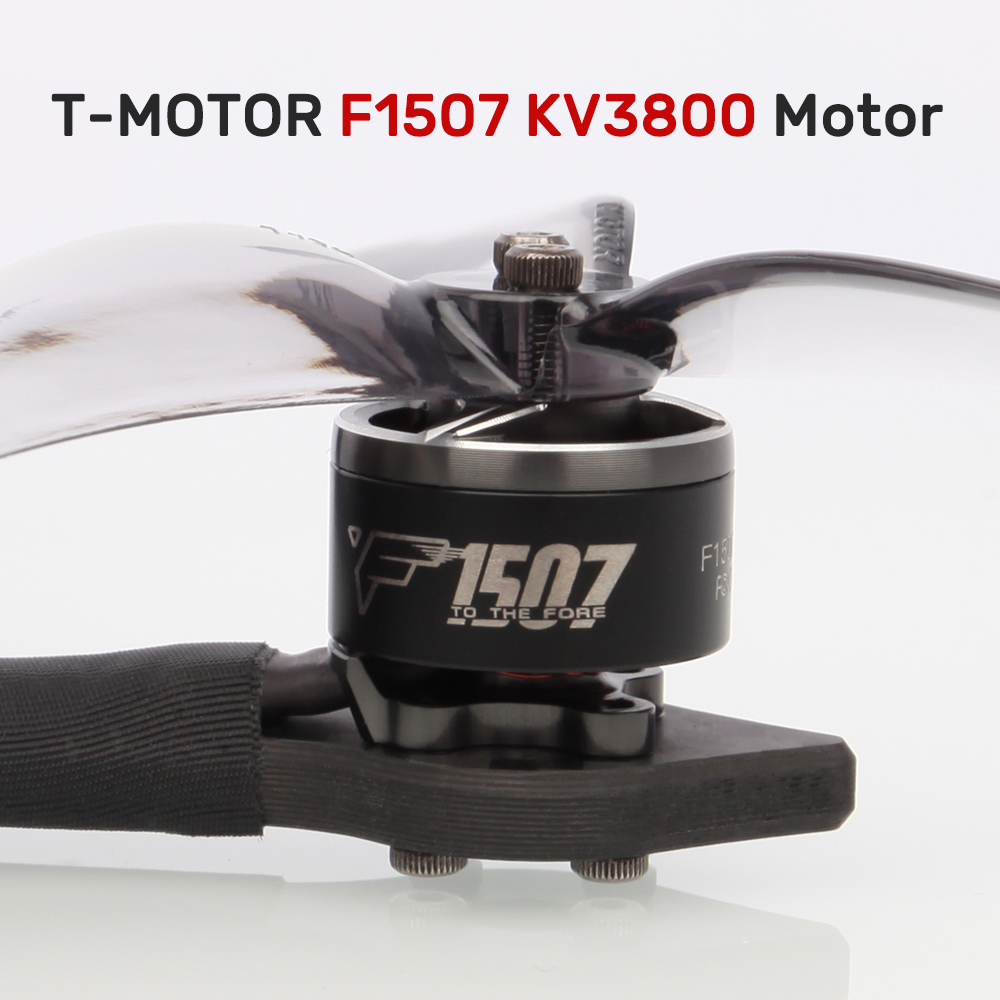

| T-MOTOR F1507 3800KV Motor | Stator Diameter: 18mm Stator Length: 13.7mm Shaft Diameter: M5 No. of Cells（Lipo): 2S to 4S No-Load Current: 1A Max. Weight:12.4g |
| Flycolor F4 flight controller |
MPU-6000 Gyro, |
| 20A BLHELI_S ESC | Con. Current: 20A Burst Current: 25A 5s. Input Voltage: 2-4S Lipo Support Dshot 600 protocal |

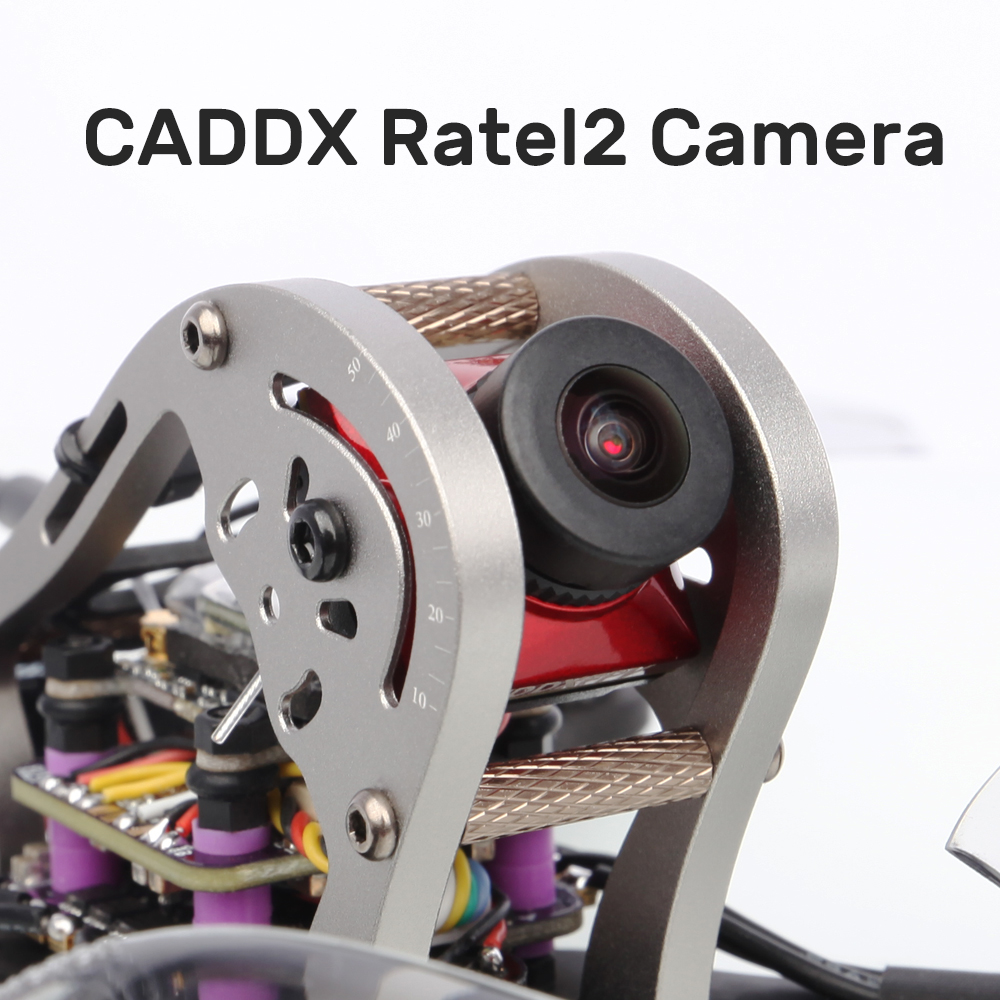

| Caddx Ratel2 Camera | Image Sensor: 1/3" SONY Super HAD II CCD Horizontal Resolution: 600TVL Lens: 2.1mm? Lens(M8)? ? FOV160° Signal System: NTSC S/N Ratio:>60dB(AGC OFF) Electronic Shutter Speed: NTSC:1/60 ~ 100,000 AutoGain Control(AGC): YES Back light compensation(BLC): YES Min.illumination: 0.01Lux/1.2F WDR: D-WDR DNR: 2DNR Day/Night: Color / Auto / B&W Power: DC 5 to 36V Net weight: ?5.?6g Dimensions: 19mm * 19mm * 19mm |

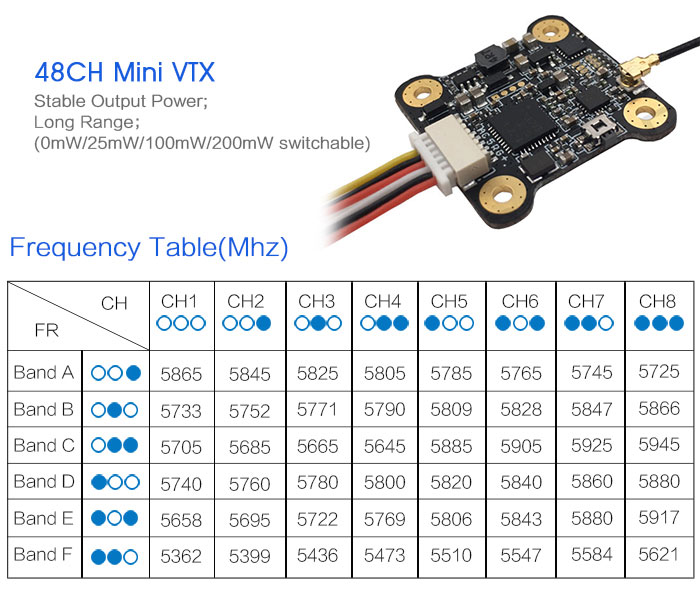

| Mini 5804 48CH VTX | Channel: 48CH Power: 0mW/25mW/100mW/200mW Format: NTSC /PAL Input Voltage: 7V~24V, +12V/170mA@200mW Distance: ≥0.5km@25mW, ≥0.8km@100mW, ≥1km@200mW Size : 27×27×4.5mm Mounting Holes: 20×20mm(4-M2) Weight(without antenna): ≤3.5g |

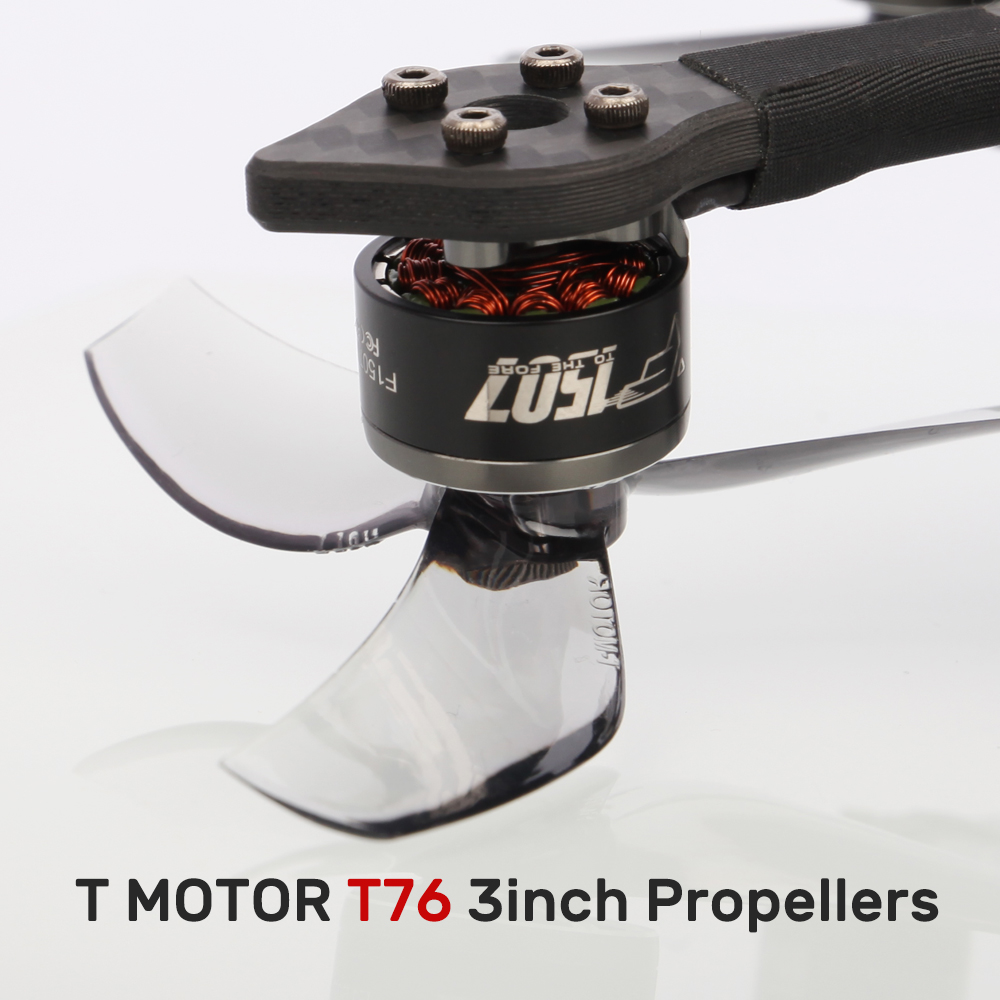

| T MOTOR T76 3inch Propeller | Smooth and high Efficiency Material: PC+ABS Weight: 1.7g Inner diamete (Prop mount): φ5mm Length: φ76.2mm |
Pacakge Included:
GEP MX3 Frame x 1
T-MOTOR F1507 3800KVC Motor x 4
Flycolor F4 with 4in1 20A stack x 1
Caddx Ratel2 Camera x 1
Mini 5804 48CH VTX x 1
T MOTOR T76 3inch Propeller x 1 (2CW+2CCW)
