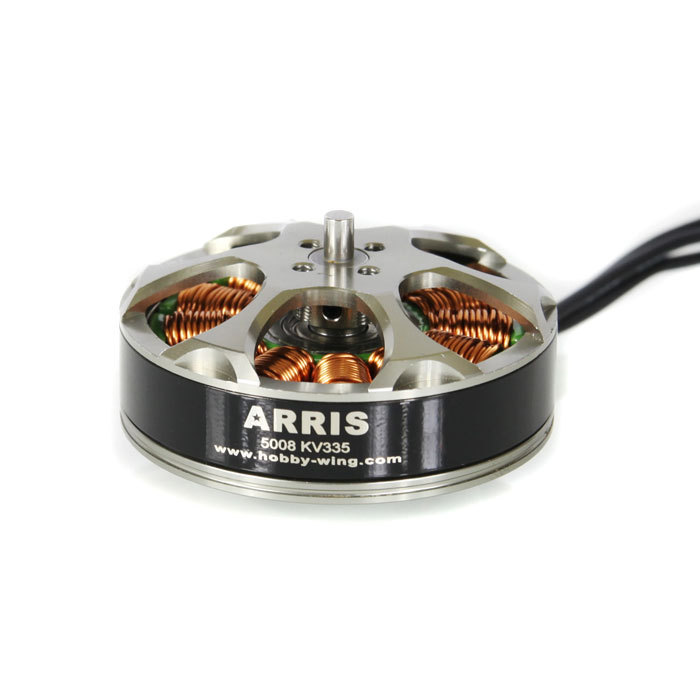

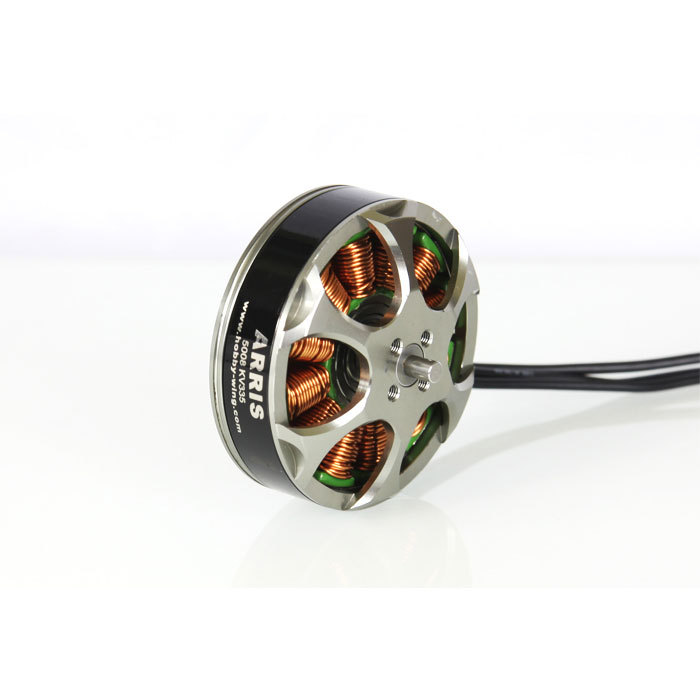

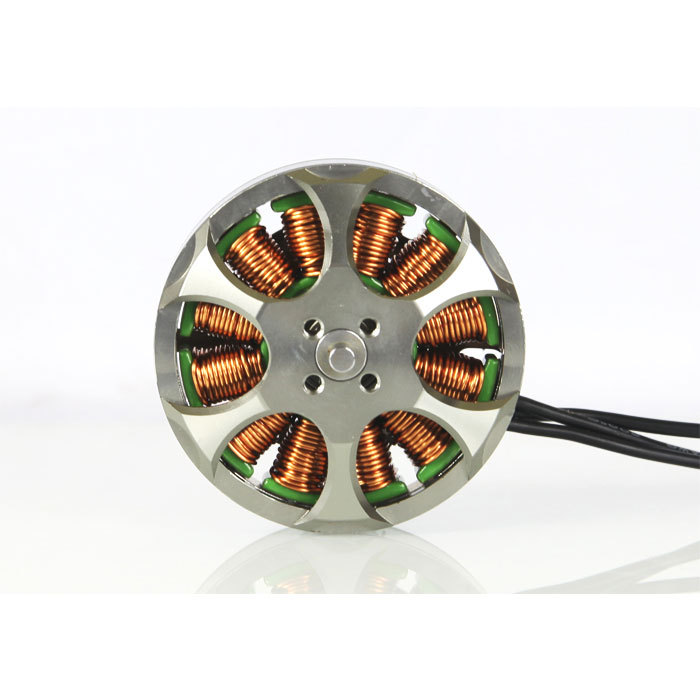

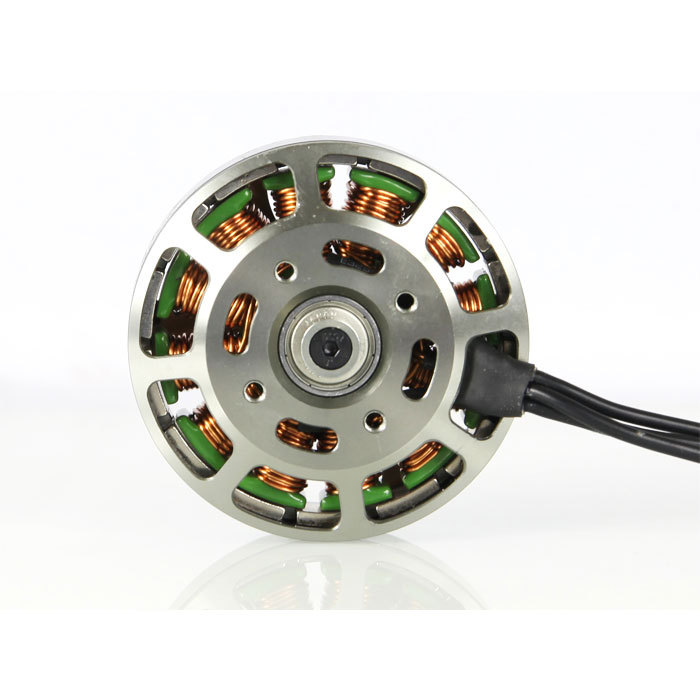

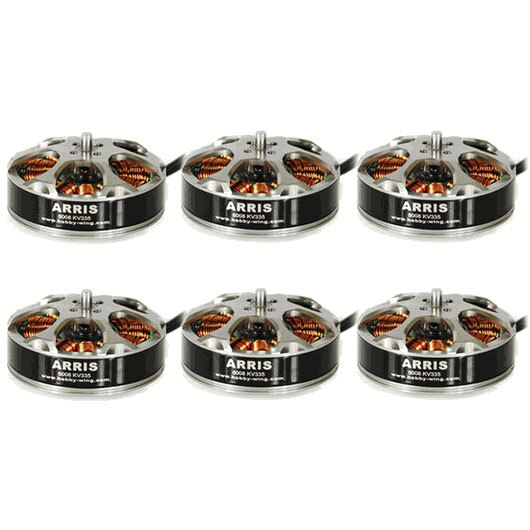

ARRIS Brushless Motor is jointly developed by ARRIS and the most professional motor manufacturer in China. We pursue the highest quality from material to processing technology to ensure the outstanding quality of every ARRIS motor.
The advantage of ARRIS Motors is as follows:
Motor Spindle: ARRIS motor adopts authentic Japan Imported Kawasaki 20JNE1200 material. With this, the motor becomes more efficient and gets lower temperature during flight.
Magnet: NdFeb N45UH high heat resistance magnet, with nickel plating on the surface. (T-Motor also use the NdFeb N45UH magnet)
Varnished Wire: ARRIS Motor adopts 155 degree high heat resistance vanished wires
Bearings: ARRIS4010PRO adopts authentic EZO bearing
Dynamic Balance: We ensure every ARRIS Motor has been processed by dynamic balance. And the balance quality can reach in 0.01 left/right. (This is the extremity of the balancing machine at present)
Technical Data:
Motor Diameter 57.7mm
Motor Length 27.5mm
Stator Diameter 50mm
Stator Length 8mm
Shaft Diameter 4mm
Weight 185.5g
Batteries 6Cells
Top Mounting Holes 12mm*12mm
Bottom Mounting Holes 25mm*25mm
| KV |
330 |
Motor Dimension(Dia*Len) |
57.7mm*31mm |
| Configu-ration |
12N14P |
Weight(g) |
183g |
| Stator Diameter |
50mm |
idle current(10)@10V(A) |
0.42A |
| Stator Length |
8mm |
NO.of Cells(Lipo) |
6S |
| Shaft Diameter |
6mm |
¡¡ |
¡¡ |
| Volts(V) |
Prop |
Amps(A£© |
Watts(W) |
Thrust(G) |
Thrust(OZ) |
Efficiency(G/W) |
Efficiency(OZ/W) |
| 24V |
CF1755 |
2.0 |
48.0 |
565 |
19.93 |
11.77 |
0.42 |
| 4.0 |
96.0 |
960 |
33.86 |
10.00 |
0.35 |
| 6.0 |
144.0 |
1260 |
44.44 |
8.75 |
0.31 |
| 8.0 |
192.0 |
1540 |
54.32 |
8.02 |
0.28 |
| 12.0 |
288.0 |
2035 |
71.78 |
7.07 |
0.25 |
| 14.0 |
336.0 |
2280 |
80.42 |
6.79 |
0.24 |
| 16.0 |
384.0 |
2530 |
89.24 |
6.59 |
0.23 |
| 17.8 |
427.2 |
2730 |
96.30 |
6.39 |
0.23 |
| CF1865 |
2.0 |
48.0 |
590 |
20.81 |
12.29 |
0.43 |
| 6.0 |
144.0 |
1320 |
46.56 |
9.17 |
0.32 |
| 12.0 |
288.0 |
2070 |
73.02 |
7.19 |
0.25 |
| 14.0 |
336.0 |
2300 |
81.13 |
6.85 |
0.24 |
| 16.0 |
384.0 |
2500 |
88.18 |
6.51 |
0.23 |
| 20.0 |
480.0 |
2820 |
99.47 |
5.88 |
0.21 |
| 24.7 |
592.8 |
3300 |
116.40 |
5.57 |
0.20 |
