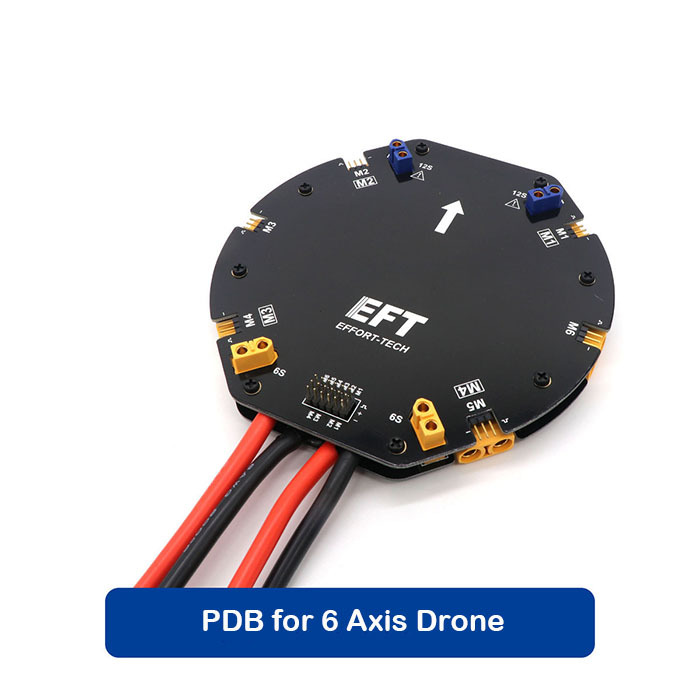

12S 480A High Current PDB Power Distribution Board for 6 Axis Agriculture Drones

High current distribution board V3 on the basis of V1 and V2, integrated electrical signal line, the line is more convenient; electric power supply interface has been welded XT90 plug, no welding, fast plug, while increasing resistance flow; 6S and 12S power supply interface of the two, you can fly control and other equipment power supply, easy to use!

Specification:
Model: EFT V3
Max Current: 480A
Size: φ150*16mm
Weight: 200g (without cable)
Suitable for Quadcopter Hexacopter Agricultural drone
Cable length: 20cm
Cable size:10awg

- Yellow XT90 connector is for 12S power (for ESC)
- Yellow XT60 connector is for 6S flight controller power
- Blue XT60 connector is for 12S power (not for ESC and can not be applied for 3s-6s flight controller)

Package Includes:
1pcs x EFT V3 12S 480A power distribution board
